Overview

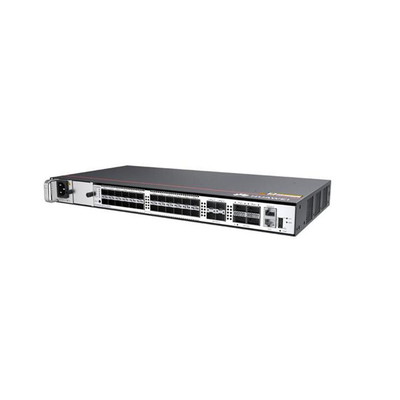

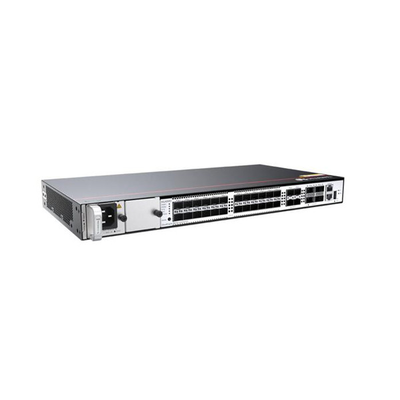

Huawei S6730-H28Y4C CloudEngine S6700 Series 25GE Managed Switch
The Huawei S6730-H28Y4C is a high-performance CloudEngine S6700 Series 25GE Ethernet switch designed for enterprise campus networks, data centers, cloud computing environments, and high-density network applications.
Featuring 28×25GE SFP28 ports and 4×100GE QSFP28 uplink ports, the S6730-H28Y4C provides high bandwidth capacity, flexible scalability, and advanced Layer 2/Layer 3 networking capabilities for modern digital infrastructure.
With support for advanced technologies including VXLAN, BGP-EVPN, iPCA network quality monitoring, SVF simplified operation, and intelligent network management, this Huawei S6700 switch helps enterprises build reliable, secure, and future-ready networks.
The S6730-H28Y4C is an ideal choice for:
- Enterprise core networks
- Data center leaf switches
- High-performance campus networks
- Cloud service infrastructure
- Large-scale virtualization environments
Huawei S6730-H28Y4C Quick Specs
| Specification |
Details |
| Brand |
Huawei |
| Series |
CloudEngine S6700 Series |
| Model |
S6730-H28Y4C |
| Switch Type |
Managed Ethernet Switch |
| Downlink Ports |
28 × 25GE SFP28 |
| Uplink Ports |
4 × 100GE QSFP28 |
| Switching Capacity |
Up to 2.2 Tbps |
| Forwarding Performance |
Up to 1,650 Mpps |
| Layer Support |
Layer 2 / Layer 3 |
| Network Features |
VXLAN, BGP-EVPN, iPCA, SVF |
| Rack Height |
1U |
| Power Supply |
AC/DC hot-swappable power options |
| Application |
Enterprise, Campus, Data Center |
Technical Specifications
| Item |
Specification |
| Product Model |
Huawei CloudEngine S6730-H28Y4C |
| Product Series |
Huawei S6700 Series |
| Fixed Interfaces |
28 × 25GE SFP28 ports |
| Uplink Interfaces |
4 × 100GE QSFP28 ports |
| Switching Capacity |
2.2 Tbit/s |
| Forwarding Rate |
1,650 Mpps |
| MAC Address Table |
High-density MAC learning capability |
| IPv4 Routing |
Supported |
| IPv6 Routing |
Supported |
| VXLAN Gateway |
Supported |
| BGP-EVPN |
Supported |
| Network Virtualization |
Supported |
| AP Management |
Supports large-scale WLAN management |
| Management Interface |
Console / ETH management / USB |
| Memory |
4GB RAM, 2GB Flash |
| Power Options |
300W AC / 260W DC power module |
| Installation |
Rack-mounted 1U |
| Operating Temperature |
-5°C to +45°C |
Key Features & Benefits
1. High-Density 25GE Network Connectivity
The Huawei S6730-H28Y4C provides 25Gbps Ethernet access with high-density SFP28 interfaces, helping organizations increase bandwidth while reducing rack space requirements.
It is suitable for:
- Virtualized data centers
- High-performance computing environments
- Enterprise backbone networks
2. 100GE High-Speed Uplink Capability
With 4×100GE QSFP28 uplink ports, the switch provides high-speed connections to core routers, aggregation switches, and data center spine networks.
Benefits:
- Lower network congestion
- Improved east-west traffic performance
- Future-ready scalability
3. Advanced Network Virtualization
The S6730-H28Y4C supports VXLAN and BGP-EVPN technologies, enabling flexible cloud-oriented network architectures.
Advantages:
- Multi-tenant network deployment
- Large-scale virtualization
- Simplified data center management
4. Intelligent Network Operation
Huawei S6730-H series supports advanced monitoring technologies such as iPCA, helping administrators identify packet loss and network performance issues quickly.
This improves:
- Network availability
- Troubleshooting efficiency
- User experience
Application Scenarios
Enterprise Campus Network
The S6730-H28Y4C provides high-speed aggregation and core switching for:
- Universities
- Government networks
- Large enterprises
Data Center Network
Ideal for:
- Leaf switch deployment
- Server aggregation
- Cloud infrastructure
Cloud Computing Environment
Supports virtualization and automated networking requirements for modern cloud platforms.
Huawei S6730-H28Y4C vs Other Huawei Switches
S6730-H28Y4C vs Huawei S5730 Series
| Feature |
S6730-H28Y4C |
Huawei S5730 Series |
| Network Position |
Core/Aggregation |
Access/Aggregation |
| Port Speed |
25GE/100GE |
Mainly GE/10GE |
| Performance |
Higher |
Medium |
| Data Center Use |
Excellent |
Limited |
| VXLAN Support |
Yes |
Depends on model |
Conclusion:
Choose S6730-H28Y4C for high-performance networks requiring 25G/100G connectivity. Choose S5730 series for enterprise access networks with lower bandwidth requirements.
S6730-H28Y4C vs Cisco Nexus Switches
| Feature |
Huawei S6730-H28Y4C |
Cisco Nexus Equivalent |
| 25GE Support |
Yes |
Yes |
| Data Center Deployment |
Yes |
Yes |
| Network Virtualization |
VXLAN EVPN |
VXLAN EVPN |
| Cost Efficiency |
Competitive |
Usually Higher |
Conclusion:
Huawei S6730-H28Y4C provides enterprise-grade performance with flexible deployment options and competitive total ownership cost.
FAQ
Q1: What is Huawei S6730-H28Y4C used for?
A:
Huawei S6730-H28Y4C is mainly used for enterprise core networks, data centers, campus networks, and cloud infrastructure requiring high-speed 25GE and 100GE connectivity.
Q2: How many ports does Huawei S6730-H28Y4C have?
A:
The switch provides:
- 28 × 25GE SFP28 ports
- 4 × 100GE QSFP28 uplink ports
Q3: Is Huawei S6730-H28Y4C suitable for data centers?
A:
Yes. Its high-density 25GE ports, 100GE uplinks, VXLAN support, and Layer 3 capabilities make it suitable for modern data center leaf and aggregation deployments.
Q4: What is the difference between S6730-H28Y4C and S6730-H24X4Y4C?
A:
The main difference is port configuration:
- S6730-H28Y4C: 28×25GE SFP28 + 4×100GE QSFP28
- S6730-H24X4Y4C: 24×10GE SFP+ + 4×25GE SFP28 + 4×100GE QSFP28
Choose S6730-H28Y4C when your network requires higher 25GE density.
Q5: Do you provide warranty and technical support?
A:
Yes. We provide:
- Product quality inspection before shipment
- Professional technical consultation
- Remote installation guidance
- Compatibility checking
- After-sales support
Our engineers can help customers select compatible optical modules, cables, and network accessories.
Q6: Can this switch work with Huawei optical transceivers?
A:
Yes. Huawei S6730-H28Y4C supports compatible SFP28 and QSFP28 optical modules for different transmission distances and network environments.
