Product Details:
|
| Name: | S6720S 26Q EI 24S AC | Model: | S6720S 26Q EI 24S AC Huawei S6700 Series Switches |
|---|---|---|---|
| Connector Type: | LC/PC | Warrranty: | 1 Year |
| Shipping: | DHL&FeDex | Software And Hardware Attributes: | Hardware |
| Ports: | 24 X 10 GE SFP+, 2 X 40 GE QSFP+ Ports | Power Supply: | AC Power Supply |
| Memory (RAM): | 2 GB | ||
| Highlight: | 26Q EI S6720S,170W AC S6720S,24S AC S6720S |
||
Huawei S6720S-26Q-EI-24S-AC switch is is a retail version. The Huawei S6720 series offers high-availability, scalable 10 Gbit/s server access for Internet Data Centers (IDCs) and large traditional data centers. It also provides optional configuration of 4 x 40 GE QSFP+ interface card gives the S6720-EI Series Switches unusual flexibility: use to provide access to high-bandwidth server-based applications, or as a core or aggregation switch in enterprise campus networks.

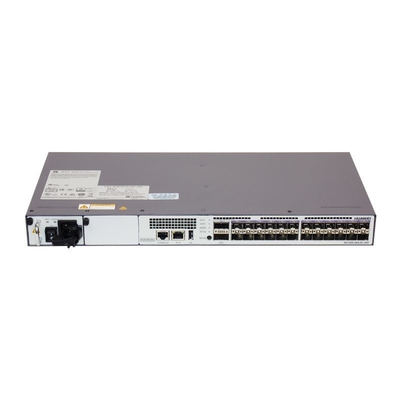

Figure 1 shows the appearance of Huawei S6720S-26Q-EI-24S-AC switch with installed power modules. The modules should be purchased separately.
Table 1 shows the Quick Specs.
| Product Code | S6720S-26Q-EI-24S-AC |
| Ports | 24 x 10 GE SFP+, 2 x 40 GE QSFP+ ports |
| Interface Slot | None |
| Power Supply | AC Power Supply |
| Forwarding Performance | 480 Mpps |
| Switching Capacity | 2.56 Tbit/s |
| Stack | Supported |
| Stack Ports |
- Any 10GE SFP+ ports (a maximum of 16 physical ports) - Any 40GE QSFP+ ports (a maximum of 2 physical ports) |
| Memory (RAM) | 2 GB |
| Flash | 240 MB |
| Dimensions (W x D x H) | 44.2 cm x 22 cm x 4.44 cm |
| Weight (Kg) | 8.5 Kg |
