Product Details:
|
| Name: | S5720S 52X PWR LI AC | Model: | S5720S 52X PWR LI AC Huawei S5700 Series Switches |
|---|---|---|---|
| Connector Type: | LC/PC | Warrranty: | 1 Year |
| Shipping: | DHL&FeDex | Software And Hardware Attributes: | Hardware |
| Product Line: | Enterprise Networking | Product Family: | Campus Switch & WLAN |
| Sub Product Family: | Fixed Switch | ||
| Highlight: | Huawei S5700 Series Switches,48 Ethernet Huawei S5700 Series Switches,10/100/1000 Huawei S5700 Series Switches |
||

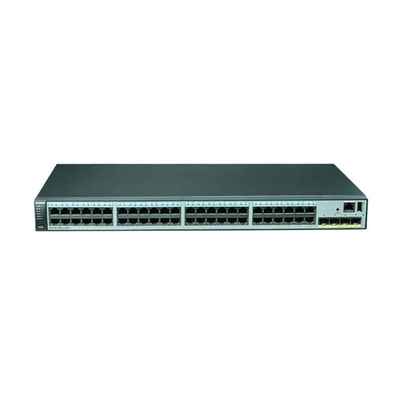

S5720S-52X-PWR-LI-AC - Huawei S5700 Series Switches.S5720S-52X-PWR-LI-AC(48 Ethernet 10/100/1000 ports,4 10 Gig SFP+,PoE+,370W POE AC 110/220V)
Table 1 shows the Quick Specs.
| Memory (RAM) | 512 MB |
| Flash | 240 MB |
| Mean time between failures (MTBF) | 38 years |
| Mean time to repair (MTTR) | 2 hours |
| Availability | > 0.99999 |
| Service port surge protection | Common mode: 7 kV |
| Power supply surge protection | 6 kV in differential mode, 6 kV in common mode |
| Dimensions (W x D x H) | 442.0 mm x 310.0 mm x 43.6 mm (17.4 in. x 12.2 in. x 1.72 in.) |
| Weight (including packaging materials) | 5.9 kg (13.01 lb) |
| Stack ports | Forty-eight 10/100/1000BASE-T ports and four 10G SFP+ ports |
| RTC | Not supported |
| RPS | Not supported |
| PoE | Supported |
| Rated voltage range | 100 V AC to 240 V AC, 50/60 Hz |
| Maximum voltage range | 90 V AC to 264 V AC, 47 Hz to 63 Hz |
| Maximum power consumption (100% throughput, full speed of fans) |
|
|
Typical power consumption (30% of traffic load)
|
42.2 W |
| Storage temperature | -40°C to +70°C (-40F to +158F) |
| Noise under normal temperature (27°C, sound power) | less than 48.3 dBA |
| Relative humidity | 5% to 95%, noncondensing |
| Operating altitude | 0-5000 m (0-16404 ft.) |
