Product Details:
|
| Name: | S1730S S24T4S A1 | Model: | S1730S S24T4S A1 Switch |
|---|---|---|---|
| Connector Type: | LC/PC | Warrranty: | 1 Year |
| Shipping: | DHL&FeDex | Forwarding Performance: | 41.66 Mpps |
| Switching Capacity: | 168 Gbit/s | Fixed Ports: | 24 X 10/100/1000Base-T Ethernet Ports, 4 X GE SFP Ports |
| Power Supply: | Built-in 60W AC Power Module | ||
| Highlight: | S1730S S24T4S A1,S1730S Huawei Network Switches |
||

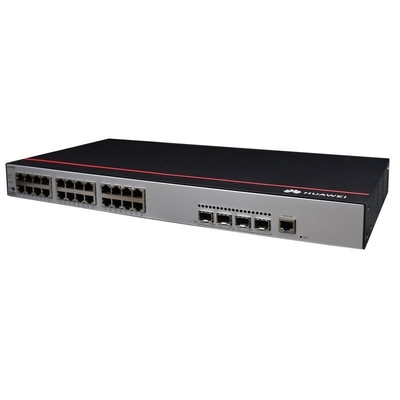

S1730S-S24T4S-A1 is a Huawei S1730S series switch, providing 24 10/100/1000BASE-T Ethernet ports, 4 Gigabit SFP, and AC power supply. Huawei CloudEngine S1730S series switches are designed for small to medium-sized businesses, including Internet cafes, hotels, schools, and others. With feature-rich services and a silent energy-saving design thats easy to install and maintain, CloudEngine S1730S helps customers build secure, reliable, and high-performance networks.
Table 1 shows the quick spec.
| Model | CloudEngine S1730S-S24T4S-A1 |
| Forwarding Performance | 41.66 mpps |
| Switching Capacity | 168 Gbit/s |
| Fixed Ports | 24 x 10/100/1000Base-T Ethernet ports, 4 x GE SFP ports |
| Power Supply | Built-in 60W AC power module |
| Dimension (H W D) | 43.6mm 442mm 220mm |
Table 2 shows the recommended modules.
| Product | Description |
| eSFP-GE-SX-MM850 | Optical Transceiver, eSFP, GE, Multi-mode Module (850nm, 0.55km, LC) |
| SFP-GE-LX-SM1310 | Optical Transceiver, eSFP, GE, Single-mode Module (1310nm, 10km, LC) |
| S-SFP-GE-LH40-SM1310 | Optical Transceiver, eSFP, GE, Single-mode Module (1310nm, 40km, LC) |
| S-SFP-GE-LH40-SM1550 | Optical Transceiver, eSFP, GE, Single-mode Module (1550nm, 40km, LC) |
| S-SFP-GE-LH80-SM1550 | Optical Transceiver, eSFP, GE, Single-mode Module (1550nm, 80km, LC) |
| eSFP-GE-ZX100-SM1550 | Optical Transceiver, eSFP, GE, Single-mode Module (1550nm, 100km, LC) |
| SFP-GE-LX-SM1310-BIDI | Optical Transceiver, eSFP, GE, BIDI Single-mode Module (TX1310/RX1490, 10km, LC) |
| SFP-GE-LX-SM1310-BIDI | BiDi Transceiver, eSFP, Tx1310nm/Rx1490nm, 1.25Gb/s, -9dBm, -3dBm, -19.5dBm, LC, SM, 10km |
| SFP-GE-LX-SM1490-BIDI | Optical Transceiver, eSFP, GE, BIDI Single-mode Module (TX1490/RX1310, 10km, LC) |
| SFP-GE-LX-SM1490-BIDI | BiDi Transceiver, eSFP, Tx1490nm/Rx1310nm, 1.25Gb/s, -9dBm, -3dBm, -19.5dBm, LC, SM, 10km |
| CWDM-SFPGE-1471 | CWDM Optical Transceiver, eSFP, 2.5G, Single-mode Module (1471nm, 80km, LC) |
| CWDM-SFPGE-1491 | CWDM Optical Transceiver, eSFP, 2.5G, Single-mode Module (1491nm, 80km, LC) |
| CWDM-SFPGE-1511 | CWDM Optical Transceiver, eSFP, 2.5G, Single-mode Module (1511nm, 80km, LC) |
| DWDM-SFPGE-1560-61 | DWDM Optical Transceiver.eSFP.2.5G.Single-mode Module (1560.61nm.120km.LC) |
| SFP-1000BaseT | 1000BASE-T (RJ45) SFP Electrical Module, Auto Negotiate, 100m |
Table 3 shows the comparison.
| Parameters | CloudEngine S1730S-S24T4S-A | CloudEngine S1730S-S24P4S-A | CloudEngine S1730S-S48T4S-A | CloudEngine S1730S-S48P4S-A | CloudEngine S1730S-S24T4X-A |
| Forwarding Performance | 41.66 mpps | 41.66 mpps | 77.38 mpps | 77.38 mpps | 95.23 mpps |
| Switching Capacity | 168 Gbit/s | 168 Gbit/s | 216 Gbit/s | 216 Gbit/s | 168Gbit/s |
| Fixed Ports | 24 x 10/100/1000Base-T Ethernet ports, 4 x GE SFP ports | 24 x 10/100/1000Base-T (PoE+) ports, 4 x GE SFP ports | 48 x 10/100/1000Base-T Ethernet ports, 4 x GE SFP ports | 48 x 10/100/1000Base-T (PoE+) ports, 4 x GE SFP ports | 24 x 10/100/1000Base-T Ethernet ports, 4 x 10GE SFP+ ports |
|
|
