Product Details:
|
| Name: | S1730S S24T4X A1 | Model: | S1730S S24T4X A1 Switch |
|---|---|---|---|
| Connector Type: | LC/PC | Warrranty: | 1 Year |
| Shipping: | DHL&FeDex | Forwarding Performance: | 95.23 Mpps |
| Switching Capacity: | 168Gbit/s | Fixed Ports: | 24 X 10/100/1000Base-T Ethernet Ports, 4 X 10GE SFP+ Ports |
| Power Supply: | Built-in 60W AC Power Module | ||
| Highlight: | 24 10/100/1000BASE T Ethernet ports,10 Gigabit SFP+ AC power supply,S1730S S24T4X A1 |
||

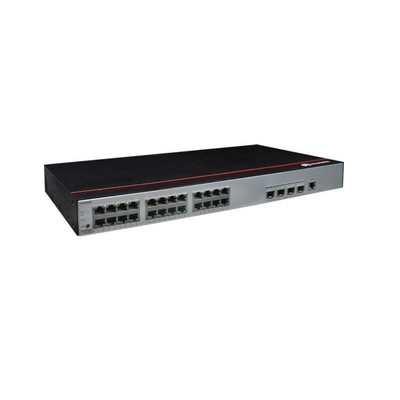

S1730S-S24T4X-A1 is a Huawei S1730S series switch, providing 24 x 10/100/1000Base-T Ethernet ports, 4 x 10GE SFP+ ports, and AC power supply. Huawei CloudEngine S1730S series switches are designed for small to medium-sized businesses, including Internet cafes, hotels, schools, and others. With feature-rich services and a silent energy-saving design thats easy to install and maintain, CloudEngine S1730S helps customers build secure, reliable, and high-performance networks.
Table 1 shows the quick spec.
| Model | CloudEngine S1730S-S24T4X-A1 |
| Forwarding Performance | 95.23 mpps |
| Switching Capacity | 168Gbit/s |
| Fixed Ports | 24 x 10/100/1000Base-T Ethernet ports, 4 x 10GE SFP+ ports |
| Power Supply | Built-in 60W AC power module |
| Dimension (H W D) | 43.6mm 442mm 220mm |
Table 2 shows the recommended modules.
| Product | Description |
| eSFP-GE-SX-MM850 | Optical Transceiver, eSFP, GE, Multi-mode Module (850nm, 0.55km, LC) |
| SFP-GE-LX-SM1310 | Optical Transceiver, eSFP, GE, Single-mode Module (1310nm, 10km, LC) |
| S-SFP-GE-LH40-SM1310 | Optical Transceiver, eSFP, GE, Single-mode Module (1310nm, 40km, LC) |
| S-SFP-GE-LH80-SM1550 | Optical Transceiver, eSFP, GE, Single-mode Module (1550nm, 80km, LC) |
| eSFP-GE-ZX100-SM1550 | Optical Transceiver, eSFP, GE, Single-mode Module (1550nm, 100km, LC) |
| SFP-GE-LX-SM1310-BIDI | Optical Transceiver, eSFP, GE, BIDI Single-mode Module (TX1310/RX1490, 10km, LC) |
| SFP-GE-LX-SM1490-BIDI | Optical Transceiver, eSFP, GE, BIDI Single-mode Module (TX1490/RX1310, 10km, LC) |
| SFP-10G-USR | 10GBase-USR Optical Transceiver, SFP+, 10G, Multi-mode Module (850nm, 0.1km, LC) |
| OMXD30000 | Huawei Optical Transceiver OMXD30000, SFP+, 10G, Multi-mode Module (850nm, 0.3km, LC) |
| SFP-10G-iLR | Optical Transceiver, SFP+, 9.8G, Single-mode Module (1310nm, 1.4km, LC) |
| OSX010000 | Optical Transceiver, SFP+, 10G, Single-mode Module (1310nm, 10km, LC) |
| SFP-10G-ZCW1471 | Optical Transceiver, SFP+, 10G, Single-mode Module (CWDM, 1471nm, 70km, LC) |
Table 3 shows the comparison.
| Parameters | CloudEngine S1730S-S24T4S-A | CloudEngine S1730S-S24P4S-A | CloudEngine S1730S-S48T4S-A | CloudEngine S1730S-S48P4S-A | CloudEngine S1730S-S24T4X-A |
| Forwarding Performance | 41.66 mpps | 41.66 mpps | 77.38 mpps | 77.38 mpps | 95.23 mpps |
| Switching Capacity | 168 Gbit/s | 168 Gbit/s | 216 Gbit/s | 216 Gbit/s | 168Gbit/s |
| Fixed Ports | 24 x 10/100/1000Base-T Ethernet ports, 4 x GE SFP ports | 24 x 10/100/1000Base-T (PoE+) ports, 4 x GE SFP ports | 48 x 10/100/1000Base-T Ethernet ports, 4 x GE SFP ports | 48 x 10/100/1000Base-T (PoE+) ports, 4 x GE SFP ports | 24 x 10/100/1000Base-T Ethernet ports, 4 x 10GE SFP+ ports |
|
|
