Product Details:
|
| Model: | S1730S-S24P4S-A | Forwarding Performance: | 41.66 Mpps |
|---|---|---|---|
| Switching Capacity: | 168 Gbit/s | Fixed Ports: | 24 X 10/100/1000Base-T (PoE+) Ports, 4 X GE SFP Ports |
| Power Supply: | Built-in 460W AC Power Module | Dimension (H × W × D): | 43.6mm × 442mm × 220mm |
| Condition: | Brand New Sealed | Warranty: | 1 Year |
| Payment: | T/T, Western Union, Paypal | Shipment: | DHL, Fedex, UPS |
| Highlight: | AC power supply Huawei S1730S-S24P4S-A,PoE+ Huawei S1730S-S24P4S-A,Huawei S1730S-S24P4S-A |
||

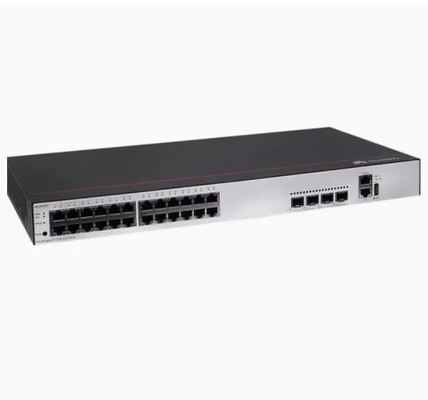

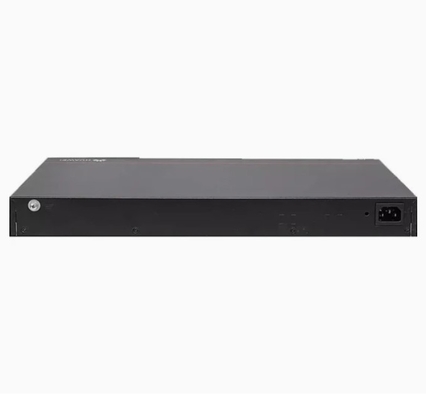

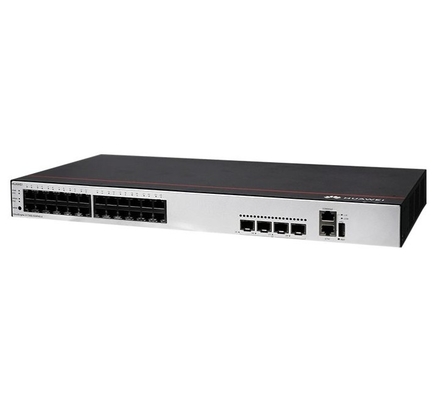

S1730S-S24P4S-A is a Huawei S1730S series switch, providing 24 10/100/1000BASE-T Ethernet ports, 4 Gigabit SFP, PoE+, and AC power supply. Huawei CloudEngine S1730S series switches are designed for small to medium-sized businesses, including Internet cafes, hotels, schools, and others. With feature-rich services and a silent energy-saving design that's easy to install and maintain, CloudEngine S1730S helps customers build secure, reliable, and high-performance networks.
Table 1 shows the quick spec.
| Model | CloudEngine S1730S-S24P4S-A |
| Forwarding Performance | 41.66 mpps |
| Switching Capacity? | 168 Gbit/s |
| Fixed Ports | 24 x 10/100/1000Base-T (PoE+) ports, 4 x GE SFP ports |
| Power Supply | Built-in 460W AC power module |
| Dimension (H * W * D) | 43.6mm * 442mm * 220mm |
Table 2 shows the recommended modules.
| Product | Description |
| eSFP-GE-SX-MM850 | Optical Transceiver, eSFP, GE, Multi-mode Module (850nm, 0.55km, LC) |
| SFP-GE-LX-SM1310 | Optical Transceiver, eSFP, GE, Single-mode Module (1310nm, 10km, LC) |
| S-SFP-GE-LH40-SM1310 | Optical Transceiver, eSFP, GE, Single-mode Module (1310nm, 40km, LC) |
| S-SFP-GE-LH40-SM1550 | Optical Transceiver, eSFP, GE, Single-mode Module (1550nm, 40km, LC) |
| S-SFP-GE-LH80-SM1550 | Optical Transceiver, eSFP, GE, Single-mode Module (1550nm, 80km, LC) |
| eSFP-GE-ZX100-SM1550 | Optical Transceiver, eSFP, GE, Single-mode Module (1550nm, 100km, LC) |
| SFP-GE-LX-SM1310-BIDI | Optical Transceiver, eSFP, GE, BIDI Single-mode Module (TX1310/RX1490, 10km, LC) |
| SFP-GE-LX-SM1310-BIDI | BiDi Transceiver, eSFP, Tx1310nm/Rx1490nm, 1.25Gb/s, -9dBm, -3dBm, -19.5dBm, LC, SM, 10km |
| SFP-GE-LX-SM1490-BIDI | Optical Transceiver, eSFP, GE, BIDI Single-mode Module (TX1490/RX1310, 10km, LC) |
| SFP-GE-LX-SM1490-BIDI | BiDi Transceiver, eSFP, Tx1490nm/Rx1310nm, 1.25Gb/s, -9dBm, -3dBm, -19.5dBm, LC, SM, 10km |
| CWDM-SFPGE-1471 | CWDM Optical Transceiver, eSFP, 2.5G, Single-mode Module (1471nm, 80km, LC) |
| CWDM-SFPGE-1491 | CWDM Optical Transceiver, eSFP, 2.5G, Single-mode Module (1491nm, 80km, LC) |
| CWDM-SFPGE-1511 | CWDM Optical Transceiver, eSFP, 2.5G, Single-mode Module (1511nm, 80km, LC) |
| DWDM-SFPGE-1560-61 | DWDM Optical Transceiver.eSFP.2.5G.Single-mode Module (1560.61nm.120km.LC) |
| SFP-1000BaseT | 1000BASE-T (RJ45) SFP Electrical Module, Auto Negotiate, 100m |
Table 3 shows the comparison.
| Parameters | CloudEngine S1730S-S24T4S-A | CloudEngine S1730S-S24P4S-A | CloudEngine S1730S-S48T4S-A | CloudEngine S1730S-S48P4S-A | CloudEngine S1730S-S24T4X-A |
| Forwarding Performance | 41.66 mpps | 41.66 mpps | 77.38 mpps | 77.38 mpps | 95.23 mpps |
| Switching Capacity | 168 Gbit/s | 168 Gbit/s | 216 Gbit/s | 216 Gbit/s | 168Gbit/s |
| Fixed Ports | 24 x 10/100/1000Base-T Ethernet ports, 4 x GE SFP ports | 24 x 10/100/1000Base-T (PoE+) ports, 4 x GE SFP ports | 48 x 10/100/1000Base-T Ethernet ports, 4 x GE SFP ports | 48 x 10/100/1000Base-T (PoE+) ports, 4 x GE SFP ports | 24 x 10/100/1000Base-T Ethernet ports, 4 x 10GE SFP+ ports |
S1730S-S24P4S-A Specification |
|
| Forwarding Performance | 41.66 mpps |
| Switching Capacity | 168 Gbit/s |
| Fixed Ports | 24 x 10/100/1000Base-T (PoE+) ports, 4 x GE SFP ports |
| Power Supply | Built-in 460W AC power module |
| Dimension (H × W × D) | 43.6mm × 442mm × 220mm |
| Chassis Height | 1U |
| Rated Voltage Range |
- 100V AC to 240V AC, 50/60 Hz - High-voltage DC input: 240V DC |
| Maximum Voltage Range |
- 90V AC to 264V AC, 47 Hz to 63 Hz - High-voltage DC input: 190V DC to 290V DC |
| Maximum Power Consumption |
- Without PoE: 53W - 100% PoE loads: 451W (PoE: 380W) |
| Operating Temperature | 5°C to +50°C (23°F to 122°F) at an altitude of 0-1800m (0-5906 ft.) |
| Storage Temperature | -40°C to +70°C (-40°F to +158°F) |
