Product Details:
|
| Speed: | 2.5G | Tested: | New Sealed Box |
|---|---|---|---|
| Application: | Ethernet, Fiber Channel, SONET/SDH, Etc. | Max Data Rate: | 40Gbps |
| Appliaction: | 1000BASE COPPER TX Ethernet | Title: | Huawei Sfp Module China |
| Able Length: | 3m(9.84ft) | Max Cable Distance: | 40km (24.9 Miles) |
| Transmitter Power: | -9.5 To - 3dBm | Temperature Range: | -40℃~+85℃ |
| Surface Treatment: | Zinc-coating|Powder Coating | Media: | Single-Mode Fiber |
| Receptacle: | RJ45 | Model: | Gepon Olt Sfp |
| Wavelenth: | 1550nm | Payment: | TT/LC |
| Highlight: | Optical Transceiver SFP 100M,MM1310 Optical Transceiver |
||

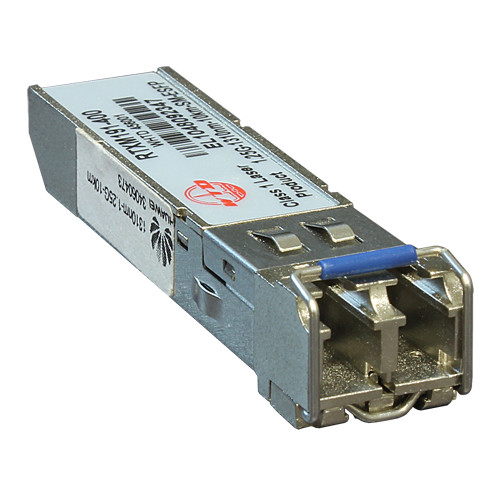

Huawei SFP-FE-SX-MM1310 is Optical Transceiver. It’s a Multi-mode Module.
Table 1 shows the Quick Specs.
| Product Code | SFP-FE-SX-MM1310 |
| Transceiver form factor | SFP |
| Transmission speed | Fast Ethernet |
| Center wavelength (nm) | 1310 |
| Standard compliance | 100base-FX |
| Connector type | LC |
| Applicable cable and maximum transmission distance | Multimode fiber (50 μm or 62.5 μm diameter): 2 km |
| Transmit power (dBm) | -19.0 to -14.0 |
| Maximum receiver sensitivity (dBm) | -30.0 |
| Overload power (dBm) | -14.0 |
| Extinction ratio (dB) | 10 |
| Operating temperature | 0°C to 70°C (32°F to 158°F) |
| Net Dimension(D x W x H mm) | 145 x 80 x 35 |
Figure 1. SFP-FE-SX-MM1310 can be installed in the switch’s SFP slot.
Table 2 shows the Huawei hot switches which support SFP-FE-SX-MM1310.
| Model | Description |
| S2700-26TP-EI-DC | 24 x Ethernet 10/100 ports, 2 dual-purpose 10/100/1000 or SFP, DC -48V |
| S2700-52P-EI-AC | 48 x Ethernet 10/100 ports, 4 Gig SFP, AC 110/220V |
| S2700-26TP-EI-AC | 4 x Ethernet 10/100 ports, 2 dual-purpose 10/100/1000 or SFP, AC 110/220V |
| S2700-9TP-PWR-EI | 8 x Ethernet 10/100 ports, PoE+, 1 dual-purpose 10/100/1000 or SFP, AC 110/220V |
| S2700-26TP-PWR-EI | 24 x Ethernet 10/100 ports, 2 dual-purpose 10/100/1000 or SFP, PoE+, without power module |
| S2700-9TP-EI-AC | 8 x Ethernet 10/100 ports, 1 dual-purpose 10/100/1000 or SFP, AC 110/220V |
| S3700-28TP-EI-AC | 24 x Ethernet 10/100 ports, 2 Gig SFP and 2 dual-purpose 10/100/1000 or SFP, AC 110/220V |
| S3700-28TP-SI-AC | 24 x Ethernet 10/100 ports, 2 Gig SFP and 2 dual-purpose 10/100/1000 or SFP, AC 110/220V |
| S3700-28TP-PWR-SI | 24 x Ethernet 10/100 PoE+ ports,2 Gig SFP and 2 dual-purpose 10/100/1000 or SFP,with 500W AC power supply |
Table 3 shows the comparison of SFP-FE-SX-MM1310 and eSFP-FE-LX-SM1310.
| Item | SFP-FE-SX-MM1310 | eSFP-FE-LX-SM1310 |
| Transceiver form factor | SFP | eSFP |
| Transmission speed | Fast Ethernet | 100 Mbit/s |
| Center wavelength (nm) | 1310 | 1310 |
| Standard compliance | 100base-FX | 100base-LX |
| Connector type | LC | LC |
|
Applicable cable and maximum transmission distance |
Multimode fiber (50 μm or 62.5 μm diameter): 2 km | Single-mode fiber: 15 km |
| Transmit power (dBm) | -19.0 to -14.0 | -15.0 to -8.0 |
| Maximum receiver sensitivity (dBm) | -30.0 | -31.0 |
| Overload power (dBm) | -14.0 | -8.0 |
| Extinction ratio (dB) | 10 | 8.2 |
| Operating temperature | 0°C to 70°C (32°F to 158°F) | 0°C to 70°C (32°F to 158°F) |
| Net Dimension(D x W x H mm) | 145 x 80 x 35 | 110 x 75 x 40 |
