Product Details:
|
| Model: | QSFP-40G-iSR4 | Transceiver Form Factor: | QSFP+ |
|---|---|---|---|
| Transmission Speed: | 40 Gbit/s | Center Wavelength (nm): | 850mm |
| Optical Fiber Type: | MMF | Cable Distance: | 0.1 Km |
| Dimensions: | 13.5 X 18.4 X 72.4 Mm | Condition: | New Factory Sealed |
| Warranty: | 1 Year | Shipment: | DHL, Fedex, UPS |
| Payment: | T/T, Western Union, Paypal | ||
| Highlight: | 850nm QSFP-40G-SR4,Huawei QSFP-40G-SR4,40G QSFP-40G-SR4 |
||

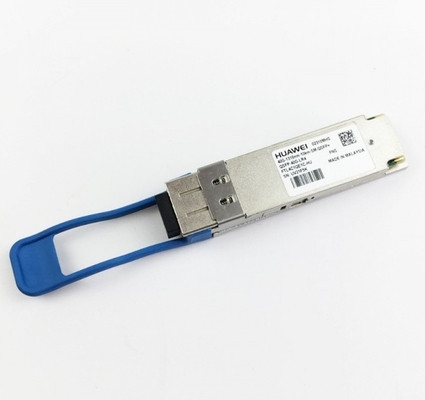

Huawei QSFP-40G-iSR4 Compatible 40GBASE-SR4/4x10GBASE-SR QSFP+ Transceiver (MMF, 850nm, 150m, MTP/MPO).
Table 1 shows the Quick Specs.
| Product Code | QSFP-40G-iSR4 |
| Part Number | 02310MHR |
| Description | 40GBase-iSR4 Optical Transceiver,QSFP+,40G,Multi-mode (850nm,0.15km,MPO)(Connect to four SFP+ Optical Transceiver) |
| Form Type | QSFP+ |
| Wavelength | 850nm |
| Interface | MTP/MPO |
| Cable Type | MMF |
| CDR Support | Yes |
| Commercial Temperature Range | 0 to 70°C (32 to 158°F) |
| Max Data Rate | 40Gbps |
| Max Cable Distance* | 150m** |
| Optical Components | VCSEL 850nm |
| DOM Support | NO |
| Protocols | 40G Ethernet, Infiniband QDR, SATA/SAS3, IEEE 802.3ba |
* Minimum cabling distance is 0.5 meters for -SR4 and -CSR4 modules.
**Considered an engineered link with maximum 1 decibel loss budget.

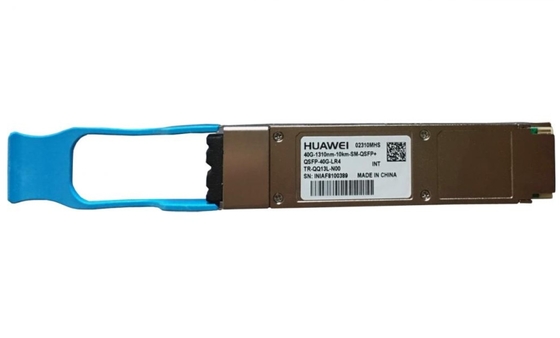

Table 2 shows the comparison of QSFP-40G-ER4, QSFP-40G-iSR4 and QSFP-40G-LR4.
| Product Code | QSFP-40G-ER4 | QSFP-40G-iSR4 | CFP-40G-LR4 |
| Part Number | 02311BKT | 02310MHR | 02310MHS |
| Description | 40GBase-ER4 Optical Transceiver,QSFP+,40G,Single-mode Module (1310nm,40km,LC) | 40GBase-iSR4 Optical Transceiver,QSFP+,40G,Multi-mode (850nm,0.15km,MPO)(Connect to four SFP+ Optical Transceiver) | 40GBase-LR4 Optical Transceiver,QSFP+,40GE,Single-mode Module(1310nm,10km,LC) |
| Form Type | QSFP+ | QSFP+ | QSFP+ |
| Wavelength | 1310nm | 850nm | 1310nm |
| Max Data Rate | 44.6Gbps | 40Gbps | 44.6Gbps |
| Max Cable Distance* | 40km** | 150m** | 10km |
