Product Details:
|
| Model: | SFP-10G-USR | Transceiver Form Factor: | SFP+ |
|---|---|---|---|
| Transmission Speed: | 10 Gbit/s | Center Wavelength (nm): | 850mm |
| Optical Fiber Type: | MMF | Cable Distance: | 0.1 Km |
| Dimensions: | 145 X 80 X 35mm | Condition: | New Factory Sealed |
| Warranty: | 1 Year | Shipment: | DHL, Fedex, UPS |
| Payment: | T/T, Western Union, Paypal | ||
| Highlight: | LC Optical Transceiver SFP-10G-USR,10G Optical Transceiver SFP-10G-USR,Multi-Mode Optical Transceiver SFP-10G-USR |
||

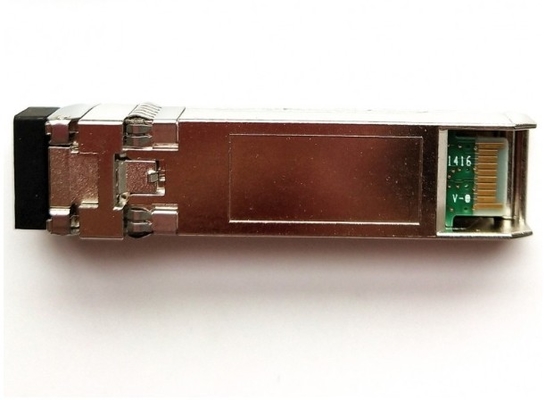

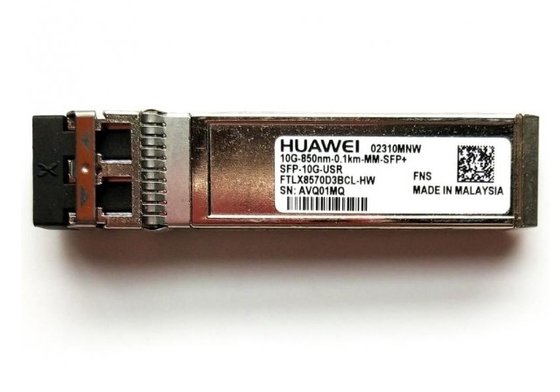

HW SFP-10G-USR compatible SFP+ transceiver supports up to 100m link lengths over OM3 MMF via an LC duplex connector. This transceiver is compliant with SFF-8431, SFF-8432 and IEEE 802.3ae standards and for seamless interoperability in multivendor environments. Digital diagnostics monitoring is available via a 2-wire serial interface, as specified in SFF-8472. Featuring low power consumption and high speed, this 10G SFP+ transceiver is ideal for data centers, enterprise wiring closets, service provider transport applications, Radio & Baseband Units, etc.
Huawei hot switches which support SFP-10G-USR.
| Model | Description |
| S5700-28P-LI-AC | 24 x Ethernet 10/100/1000 ports, 4 Gig SFP, AC 110/220V |
| S5700-28TP-LI-AC | 24 x Ethernet 10/100/1000ports,2 Gig SFP and 2 dual-purpose 10/100/1000 or SFP,AC 110/220V |
| S5700S-52P-LI-AC | 48 x Ethernet 10/100/1000 ports, 4 Gig SFP, AC 110/220V |
| S5700-28P-PWR-LI-AC | 24 x Ethernet 10/100/1000 PoE+ ports, 4 Gig SFP, AC 110/220V |
| S5700-10P-PWR-LI-AC | 8 x Ethernet 10/100/1000 PoE+ ports, 2 Gig SFP, AC 110/220V |
| S5720-36C-EI-AC |
28 x Ethernet 10/100/1000 ports,4 of which are dual-purpose 10/100/1000 or SFP,4 10 Gig SFP+, 1 interface slot, with 150W AC |
| S5700-28C-EI-AC | 24 x Ethernet 10/100/1000 ports, with 1 interface slot, with 150W AC power supply |
| S5720-56C-HI-AC | 48 x Ethernet 10/100/1000 ports, 4 10 Gig SFP+, with 2 interface slots, with 600W AC power supply |
| S5720-56PC-EI-AC | 48 x Ethernet 10/100/1000 ports,4 Gig SFP, with 1 interface slot, with 150W AC power supply |
| S5720-56C-PWR-HI-AC | 48 x Ethernet 10/100/1000 POE+ ports,4 10 Gig SFP+, with 2 interface slots, with 1150W AC power supply |
Table 3 shows the comparison of SFP-10G-USR and OSX010000.
| Item | SFP-10G-USR | OSX010000 |
| Transceiver form factor | SFP+ | SFP+ |
| Transmission speed | 10 Gbit/s | 10 Gbit/s |
| Center wavelength (nm) | 850 | 1310 |
| Standard compliance | 10Gbase-USR | 10Gbase-LR |
| Connector type | LC | LC |
|
Applicable cable and maximum transmission distance |
Multimode fiber (OM3): 0.1 km | Single-mode fiber: 10 km |
| Transmit power (dBm) | -7.3 to -1.0 | -8.2 to +0.5 |
| Maximum receiver sensitivity (dBm) | -10.7 | -12.6 |
| Overload power (dBm) | 0.5 | 0.5 |
| Extinction ratio (dB) | 3.0 | 3.5 |
| Operating temperature | 0°C to 70°C (32°F to 158°F) | 0°C to 70°C (32°F to 158°F) |
| Net Dimension(D x W x H mm) | 145 x 80 x 35 | 110 x 70 x 37 |
SFP-10G-USR Specification |
|
| Transceiver form factor | SFP+ |
| Transmission speed | 10 Gbit/s |
| Center wavelength (nm) | 850 |
| Standard compliance | 10Gbase-USR |
| Connector type | LC |
| Applicable cable and maximum transmission distance | Multimode fiber (OM3): 0.1 km |
| Transmit power (dBm) | -7.3 to -1.0 |
| Maximum receiver sensitivity (dBm) | -10.7 |
| Overload power (dBm) | 0.5 |
| Extinction ratio (dB) | 3.0 |
| Operating temperature | 0°C to 70°C (32°F to 158°F) |
| Net Dimension(D x W x H mm) | 145 x 80 x 35 |
