Product Details:
|
| Name: | S5735 L24T4S A | Model: | S5735 L24T4S A Huawei S5700 Series Switches |
|---|---|---|---|
| Connector Type: | LC/PC | Warrranty: | 1 Year |
| Shipping: | DHL&FeDex | Ports: | 4 X 10 GE SFP+ |
| Standards Compliance: | 512 MB | Maximum Transmission Distance: | 100 M |
| Memory (RAM): | 1 GB | ||
| Highlight: | Huawei S5735 L24T4S,Enterprise Campus Network Access Switches,Huawei S5700 Series Switches |
||
S5735-L24T4S-A is the Huawei S5735-L switch with 24 x 10/100/1000Base-T ports, 4 x GE SFP ports. Huawei CloudEngine S5735-L is a series of simplified gigabit access switches that provide 12–48 flexible all-GE downlink ports and four fixed GE or 10 GE uplink ports. They are designed for enterprise campus network access and gigabit to the desktop. Built on next-generation, high-performance hardware and powered by Huawei’s Versatile Routing Platform (VRP), CloudEngine S5735-L switches feature flexible Ethernet networking, diversified security control, and support for multiple Layer 3 routing protocols — providing higher performance and more powerful service processing capabilities for networks.
Table 1 shows the quick spec.
| Product Model | S5735-L24T4S-A |
| Forwarding Performance | 42 Mpps |
| Switching Capacity2 | 56 Gbit/s/336 Gbit/s |
| Fixed Ports | 24 x 10/100/1000Base-T ports, 4 x GE SFP ports |
| PoE+ | Not supported |

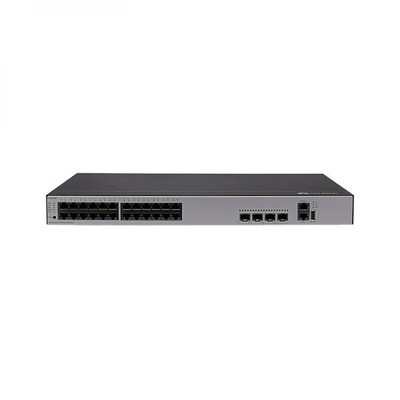

Figure 1 shows the front ports of S5735-L24T4S-A.
Note:
| ① | 24 10/100/1000BASE-T ports | ④ | One PNP button |
| ② | Four 1000BASE-X ports | ⑤ | One USB port |
| ③ | One ETH management port | ⑥ |
One console port |
