Product Details:
|
| Model: | CE6856 48S6Q HI | Name: | CE6856 48S6Q HI Data Center Switch |
|---|---|---|---|
| Keywords: | Ethernet Network Switch | Condition: | Original New |
| Moq: | 1 Pc | Warranty: | 1 Year |
| Lead Time: | 1-2 Days | Shipping: | DHL FEDEX UPS |
| Highlight: | CE6856 Huawei Data Center Switches,48S6Q HI Huawei Data Center Switches,Huawei Data Center Switches CE 6800 Series |
||
CE6857-48S6CQ-EI switch (48*10GE SFP+, 6*100GE QSFP28, 2*AC power supply, port side air inlet)

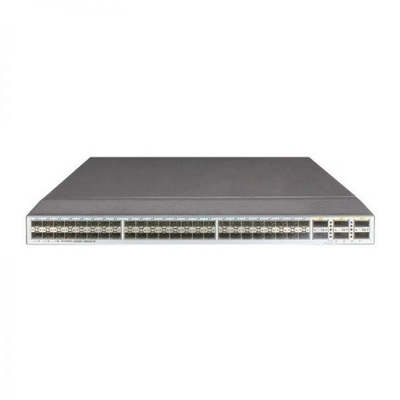

| Product Name | CE6856-48S6Q-HI Switch |
| Port Configuration | 48-Port 10G SFP+, 6-Port 40GE QSFP+ |
| Fan Box | 2*FAN Box |
| Power Module | Without Fan and Power Module |
| Switching Capacity | Up to 2.4 Tbps |
| Forwarding Rate | Up to 1801 Mpps |
| MAC Address Table | 288K MAC address entries |
| Latency | Less than 2 microseconds |
| Jumbo Frame | Up to 9216 bytes |
| VLAN IDs | 4K |
| Layer 3 Features | Static routing, RIP, OSPF, IS-IS, BGP |
| IPv6 Support | Full IPv6 support including dual stack |
| Reliability | VRRP, BFD for OSPF/BGP |
| Management and Maintenance | SNMP v1/v2c/v3, RMON, web interface, SSH |
| Quality of Service (QoS) | Hardware-based traffic queuing and prioritization |
| Security Features | ACLs, 802.1X, port security, IP+MAC+port binding |
| Energy Efficiency | Energy-Efficient Ethernet (EEE) support |
| Dimensions (W x D x H) | 442 mm x 420 mm x 43.6 mm |
| Operating Temperature | 0°C to 45°C |
| Storage Temperature | -40°C to +70°C |
| Humidity | 5% to 95% (non-condensing) |
| Compliance | CE, FCC, RoHS |
|
|
![]()
