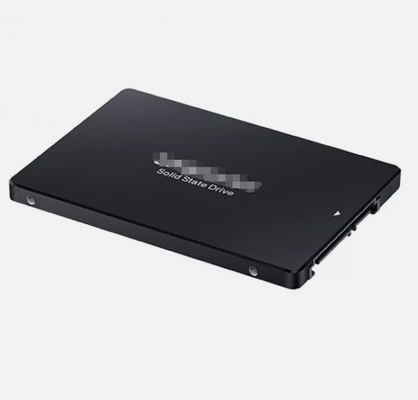

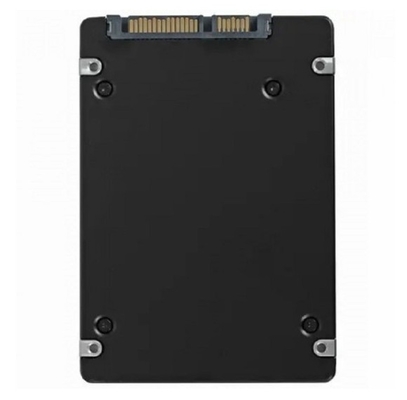

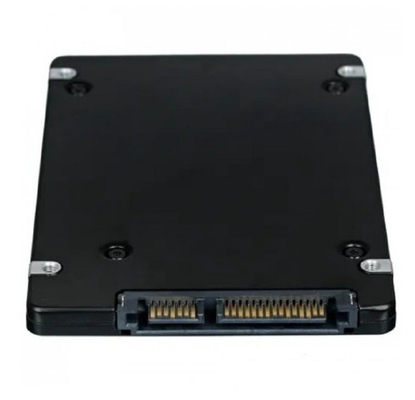

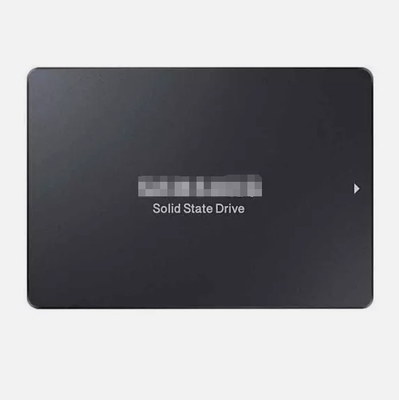

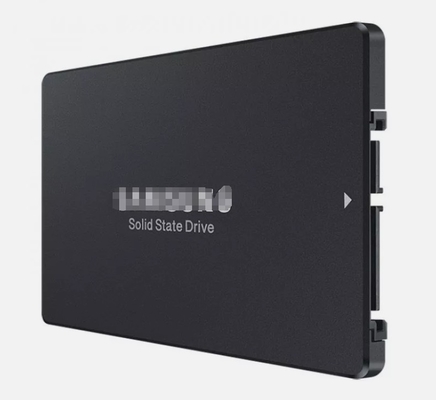

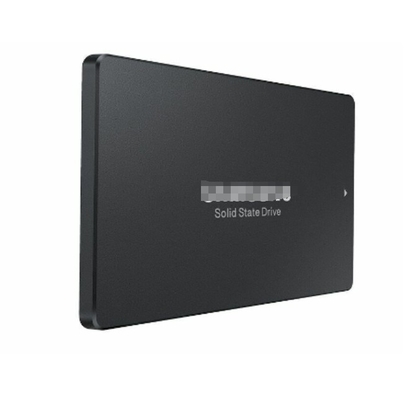

MZ7LH480HAHQ-00005 Samsung MZ7LH480HAHQ-00005 Hard Drive SSD 240GB SATA 6Gb/s V4 TLC - PM883 Series

Product Overview

Main Specifications :

• Product Description : SAMSUNG Pm883 MZ7LH480HAHQ- Solid State Drive - 480 Gb - Sata 6gb/s
• Type : Solid State Drive - Internal
• Capacity : 480 Gb
• Hardware Encryption : Yes
• Encryption Algorithm : 256-bit Aes
• Nand Flash Memory Type : SAMSUNG V-nand 3-bit Mlc
• Form Factor : 2.5
• Interface : Sata 6gb/s
• Bytes Per Sector : 512
• Features : Native Command Queuing (ncq), Trim Support, Power Disable Pin (pin3)
• Dimensions (wxdxh) : 2.7 In X 3.9 In X 0.3 In
• Width : 2.7 In
• Depth : 3.9 In
• Height : 0.3 In
• Weight : 2.47 Oz

  Performance :
• Drive Writes Per Day (dwpd) : 1.3
• Ssd Endurance : 341 Tb
• Drive Transfer Rate : 600 Mbps (external)
• Internal Data Rate : 550 Mbps (read) / 320 Mbps (write)
• 4kb Random Read : 98000 Iops
• 4kb Random Write : 14000 Iops
• Average Latency : 70 £os

  Reliability :
• Mtbf : 2,000,000 Hours
• Non-recoverable Errors : 1 Sector Per 10 17 Bits Read

  Expansion & Connectivity :
• Interfaces : Sata 6gb/s
• Compatible Bay : 2.5

  Environmental Parameters :
• Min Operating Temperature : 32 ¢xf
• Max Operating Temperature : 158 ¢xf
• Min Storage Temperature : -40 ¢xf
• Max Storage Temperature : 185 ¢xf
• Humidity Range Operating : 5 - 95% (non-condensing)
• Shock Tolerance (non-operating) : 1500 G @ 0.5 Ms Half-sine
• Vibration Tolerance (non-operating) : 20 G @ 20-2000 Hz
