Product Details:
|
| Model: | CE12808-AC | Name: | CE12808-AC Huawei CE12800 Series Data Center Switch |
|---|---|---|---|
| Keywords: | Ethernet Network Switch | Condition: | Original New |
| Moq: | 1 Pc | ||
| Highlight: | Huawei CE12800 Series Data Center Switch,Huawei CE12808-AC Data Center Switch,CE12800 Series Data Center Switch |
||
CE12808-AC is CE12808 AC Assembly Chassis(with CMUs and Fans).

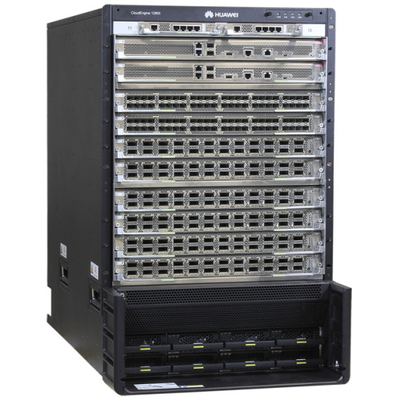

Figure 1 shows the appearance of CE12808-AC.
Table 1 shows the Quick Specs.
| Product Code | CE12808-AC |
| Switching Capacity? (Tbit/s) |
89/ 516 |
| Forwarding Rate? (Mpps) |
34,560 |
| Service Slots | 8 |
| Switching Fabric? Module Slots |
6 |
| LPU slots | 8 (slot IDs: 01 to 08) |
| MPU slots | 2 (slot IDs: 09 to 10) |
| CMU slots | 2 (slot IDs: 11 to 12) |
| SFU slots | 6 (slot IDs: 13 to 18) |
| Power slots | 8 (slot IDs: PM1 to PM8) |
| Fan slots | 13 (slot IDs: FAN1 to FAN13) |
Figure 2 shows the front panel of CE12808-AC.
Note:
| ① |
CE12800 series switches chassis header, showing the following:
|
| ② | Two CMUs |
| ③ | Cable management frame |
| ④ | Front ESD jack |
| ⑤ | Air intake area for SFUs in the CE12808 chassis |
| ⑥ | Power modules |
| ⑦ | Two MPUs |
| ⑧ |
LPU
|
* In the CE12808 series switches, MPUs, CMUs, and LPUs are horizontally installed at the front of the chassis, and SFUs are vertically installed at the rear of the chassis.
* CE12808-AC is CE12808 AC Assembly Chassis(with CMUs and Fans), the other modules or cards must be purchased separately.
Figure 3 shows the back panel of CE12808-AC.
|
|
