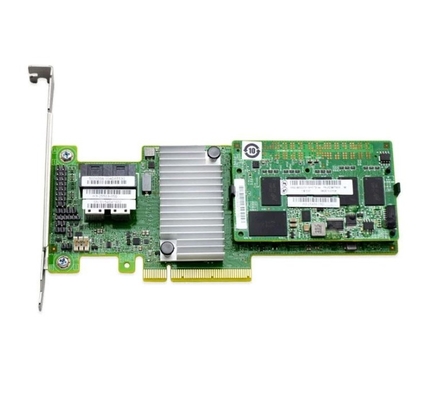

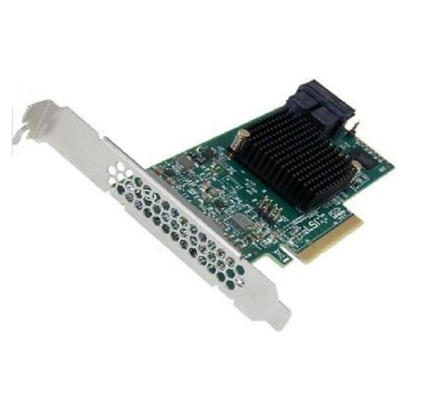

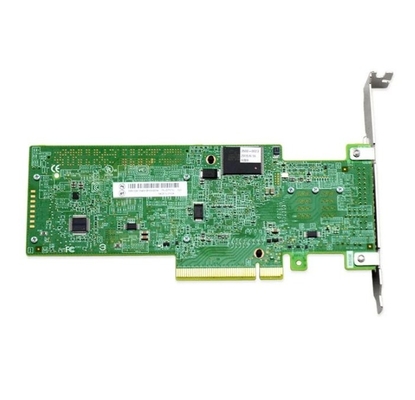

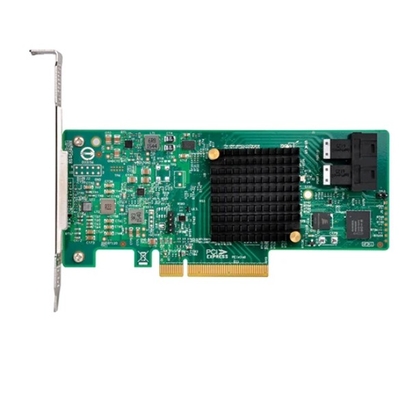

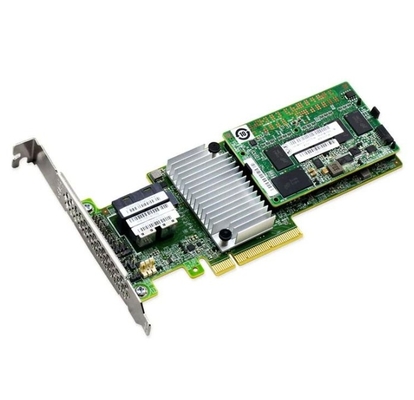

Broadcom LSI SAS 9500-8i Host Bus Adapter 12Gb/s SAS 8-Port PCIe 3.0 HBA Card Support Raid 0/1/1E/10The Broadcom 9311-8i

Product Overview

The Broadcom 9311-8i is a RAID (Redundant Array of Independent Disks) controller card primarily used in server and storage applications. Here are some key features and specifications:

Key Features

• Ports: Typically provides 8 internal SATA/SAS ports for connecting hard drives or SSDs.
• RAID Support: Supports various RAID levels, including RAID 0, 1, 5, 6, 10, 50, and 60, allowing for flexible data protection and performance options.
• Performance: Designed to deliver high data transfer rates, making it suitable for demanding applications.
• Cache Memory: Often includes onboard cache memory to enhance performance and speed up data access.

Use Cases

• Server Environments: Commonly used in servers that require reliable data storage solutions.
• Storage Arrays: Can be integrated into storage arrays for improved data management and redundancy.

Additional Features

• Management Software: Typically comes with management tools for monitoring and configuring RAID settings.
• Compatibility: Compatible with various operating systems and server platforms.

The Broadcom 9311-8i is an 8-port internal SAS (Serial Attached SCSI) PCIe 3.0 x8 Host Bus Adapter (HBA). It is designed to provide high-performance connectivity for storage devices such as hard drives, solid-state drives, and tape drives. In this article, we will take a closer look at the Broadcom 9311-8i and its features, benefits, and applications.

Features

The Broadcom 9311-8i is a feature-rich HBA that offers several benefits to users. Some of its key features are:

• 8-port connectivity: The HBA comes with eight internal SAS ports, allowing users to connect up to eight storage devices simultaneously.
• High performance: The HBA supports 12Gb/s SAS data transfer rates, which are twice as fast as the previous-generation 6Gb/s SAS.
• PCIe 3.0 x8 host interface: The HBA is designed to be used with PCIe 3.0 x8 slots, which provide high-bandwidth connectivity to the server's CPU.
• RAID support: The HBA supports RAID levels 0, 1, 5, 6, 10, 50, and 60, providing users with flexible storage configuration options.
• Compatibility: The HBA is compatible with a wide range of operating systems, including Windows, Linux, and VMware.

Benefits

The Broadcom 9311-8i offers several benefits to users, including:

• High performance: The HBA's 12Gb/s SAS data transfer rates provide fast access to data stored on storage devices, resulting in improved application performance.
• Improved storage scalability: The HBA's support for RAID levels 0, 1, 5, 6, 10, 50, and 60 allows users to configure their storage devices in a variety of ways, enabling them to scale their storage as their needs grow.
• Compatibility: The HBA's compatibility with a wide range of operating systems ensures that it can be used with virtually any server or storage device.
• Simplified management: The HBA's support for RAID allows users to manage their storage devices from a single interface, simplifying the management process and reducing the likelihood of errors.

Applications

The Broadcom 9311-8i is ideal for a wide range of applications, including:

• Database servers: The HBA's high-performance SAS connectivity is ideal for database servers that require fast access to large amounts of data.
• Virtualization: The HBA's compatibility with VMware makes it an excellent choice for virtualized environments that require high-performance storage connectivity.
• High-performance computing: The HBA's 12Gb/s SAS data transfer rates make it ideal for high-performance computing environments that require fast access to data stored on storage devices.
• Data backup and recovery: The HBA's support for RAID levels 0, 1, 5, 6, 10, 50, and 60 makes it an excellent choice for data backup and recovery applications.

Overall, the Broadcom 9311-8i is an excellent choice for users who require high-performance SAS connectivity for their storage devices. Its 8-port connectivity, high performance, and compatibility with a wide range of operating systems make it an ideal choice for a variety of applications, including database servers, virtualization, high-performance computing, and data backup and recovery.

General Information about the Broadcom 9311-8I

• Manufacturer: Broadcom
• Part Number or SKU# 9311-8I
• Product Type: Controller
• Product Name: SAS-SATA

Technical Specifications

• Device Type : Converged Network Adapter
• Interface Type : PCI-E 3.0 X8
• Data Transfer Rate : 12GBPS
• Io Controller Sas 3008 Fusion Mpt 2.5
• Port Count8 Port, Internal
• Connectors
• mini Sas Hd
• sff8643 Two (x4)

Environmental

• operating: 0°c To 55°c
• storage: -45°c To 105°c
• 5 To 90% Non-condensing
• airflow: 200 Lfm
• Mtbf >2,800,000 Hours
