Product Details:
|
| Product Name: | Optical Transceiver Module | External Dimension: | WJEOWE |
|---|---|---|---|
| Connector Type: | LC | Power Consumption: | 1W |
| Wavelength: | 850/1310/1550nm | Package: | SFP |
| Application: | Ethernet SDH SONET Fiber Channel | Transmission Distance: | 10km/20km/40km/80km/120km |
| Highlight: | Finisar 25.78Gb/s SFP+,850nm SFP+,Short Wavelength SFP+ |
||

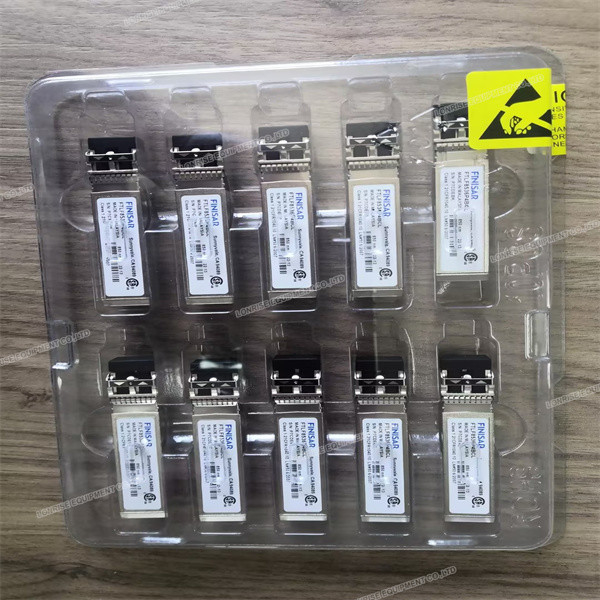

Finisar FTLF8536P4BCL 25.78Gb/s Short-Wavelength SFP+ 850nm Optical transceiver
| Brand | Finisar |
| Place of origin | China |
| Form Factor | SFP+ |
| Wavelength | 850nm |
| Distance | 100M |
| Data Rate (max) | 25Gb |
| Low End Case Temperature (°C) | 0℃ |
| High End Case Temperature (°C) | 70℃ |
| Power Supply | 3.3v |
| Connector | Duplex LC |
| Warranty | 1-year |
| Certificate | CE , ROHS , FCC |
| Compatible with | ZTE,Juniper, etc |
| DDMI | Yes |
| Time of delivery | within 24hours |
| Package | 1 pc/anti-static box |
PRODUCT FEATURES
• Up to 25.78 Gb/s bi-directional data links
• Hot-pluggable SFP+ footprint
• Built-in digital diagnostic functions
• 850nm Oxide VCSEL laser transmitter
• Duplex LC connector
• RoHS compliant
• 100m over M5F MMF (50/125 um OM4)
• 70m over M5E MMF (50/125um OM3)
• 20m on MMF (50/125µm OM2)
• Metal enclosure, for lower EMI
• 1.2W maximum power consumption
• Single 3.3V power supply
• Operating temperature range: 0°C to 70°C
APPLICATIONS

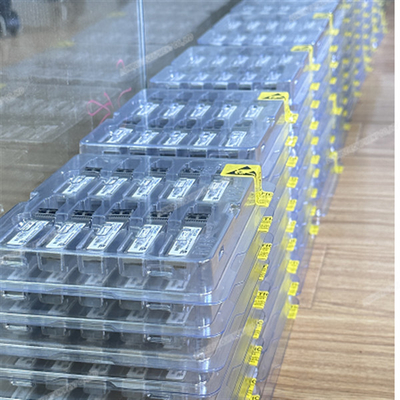

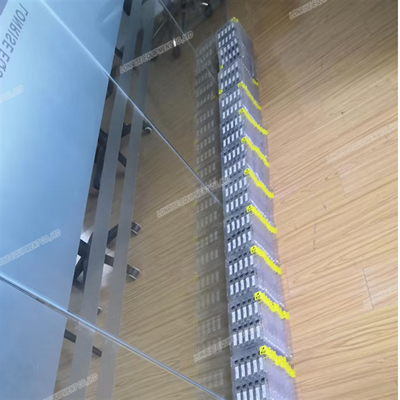

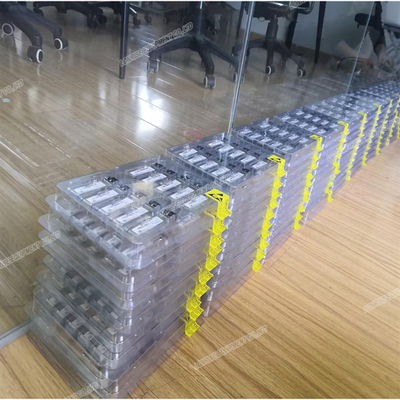

The packaging and shipping of Optical Transceiver Module products are as follows:
