Product Details:
|
| Model: | SFP-10G-LRM | Transceiver Form Factor: | SFP+ |
|---|---|---|---|
| Connector Type: | LC | Wavelength: | 1310nm |
| Maximum Cable Distance: | 220 M | Data Rate: | 10 Gbps |
| Condition: | Brand New Sealed | Warranty: | 1 Year |
| Payment: | T/T, Western Union, Paypal | Shipment: | DHL, Fedex, UPS |
| High Light: | SFP-10G-LRM 10GBASE-LRM SFP Module,10GBASE-LRM SFP Module |
||

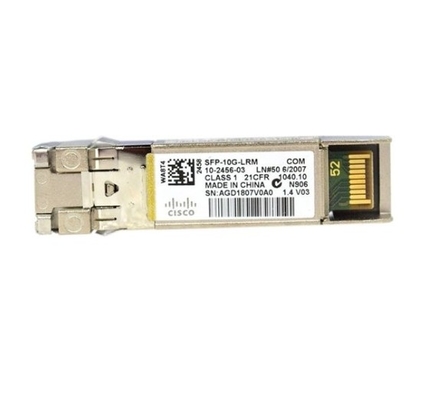

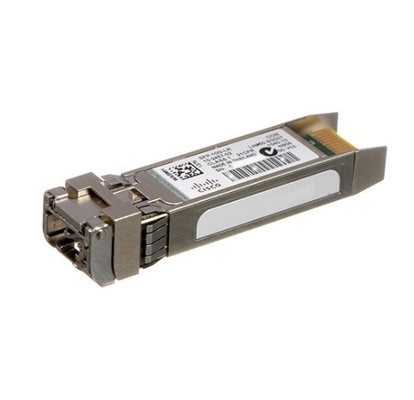

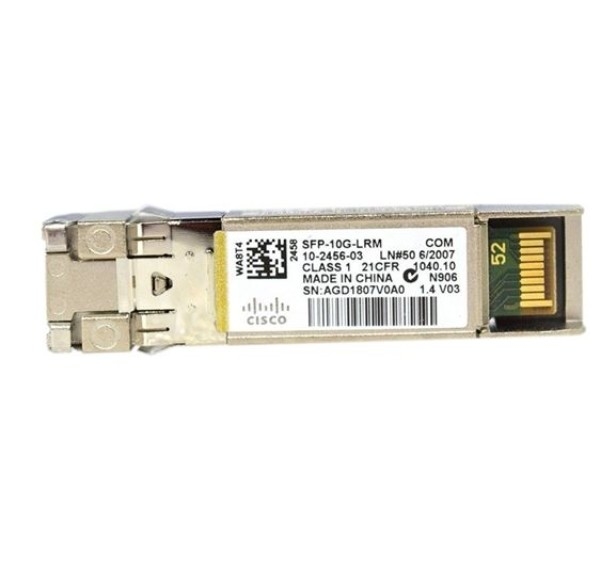

Cisco 10GBASE-LRM SFP+ transceiver module for MMF and SMF, 1310-nm wavelength, 220m, LC duplex connector.
Table 1 shows the Quick Specs.
| Product Code | SFP-10G-LRM |
| Device Type | Plug-in module |
| Form Factor | SFP+ |
| Date Rate | 10.3Gbps |
| Wavelength | 1310nm |
| Power Budget | 3.4dB |
| Max Reach Distance | 220m |
| Transmit Power | -6.5~0.5dBm |
| Receive Sensitivity | -12dBm |
| Voltage | 3.3V |
| Power Consumption | 1W |
| Connector | Dual LC |
| Fiber Type | MMF |
| Operation Temperature | 0~70° C |
| DDMI | With |
| Application | 10 Gigabit Ethernet |
SFP-10G-LRM Specifications |
|
| Model | SFP-10G-LRM |
| Brand | Cisco |
| Data Rate | 10 Gbps |
| Interface | LC Duplex |
| Connector Type | SFP+ |
| Optical Fiber Type | Single-mode |
| Maximum Cable Distance | 220 m |
| Wavelength | 1310 nm |
| DOM Support | Yes |
| Compatibility | Cisco Catalyst Switches, Cisco Nexus Switches, Cisco ASR Routers |
| Hot Swappable | Yes |
| MTBF | 1,000,000 hours |
| Power Consumption | 1.5W |
| Operating Temperature | 0°C to 70°C |
| Storage Temperature | -40°C to 85°C |
| Operating Humidity | 5% to 95%, non-condensing |
| EMI Standards | FCC Part 15 Class B, CISPR Class B, EN 55022 Class B, VCCI Class B |
| Safety Standards/Approvals | UL 60950-1, EN 60950-1, IEC 60950-1, CAN/CSA-C22.2 No. 60950-1 |
| Dimensions | 8.45 x 13.4 x 56.5 mm |
