Product Details:
|
| Downlink Ports: | 24 Ethernet 10/100 Ports | Switch Capacity: | 598Gbps |
|---|---|---|---|
| Power Supply Type: | 1000 W PoE AC (pluggable) | Sensitivity: | -30dBm |
| With Modem Function: | Yes | Maximum Input Current: | 16 A |
| Product Series: | Huawei CE16804 | Mac Address: | 16K |
| Poe Support: | Yes | Service Slots: | 3 |
| Package: | Original Packaging | Power Source Type: | AC/DC/high-voltage DC |
| Qos: | Yes | Iterms: | Huawei Sfp Switch Bundle |
| Use: | Campus & Access Switch | ||
| High Light: | 100g data center switch,Cloud Engine data center switch,CE16804 Data Center Switch |
||

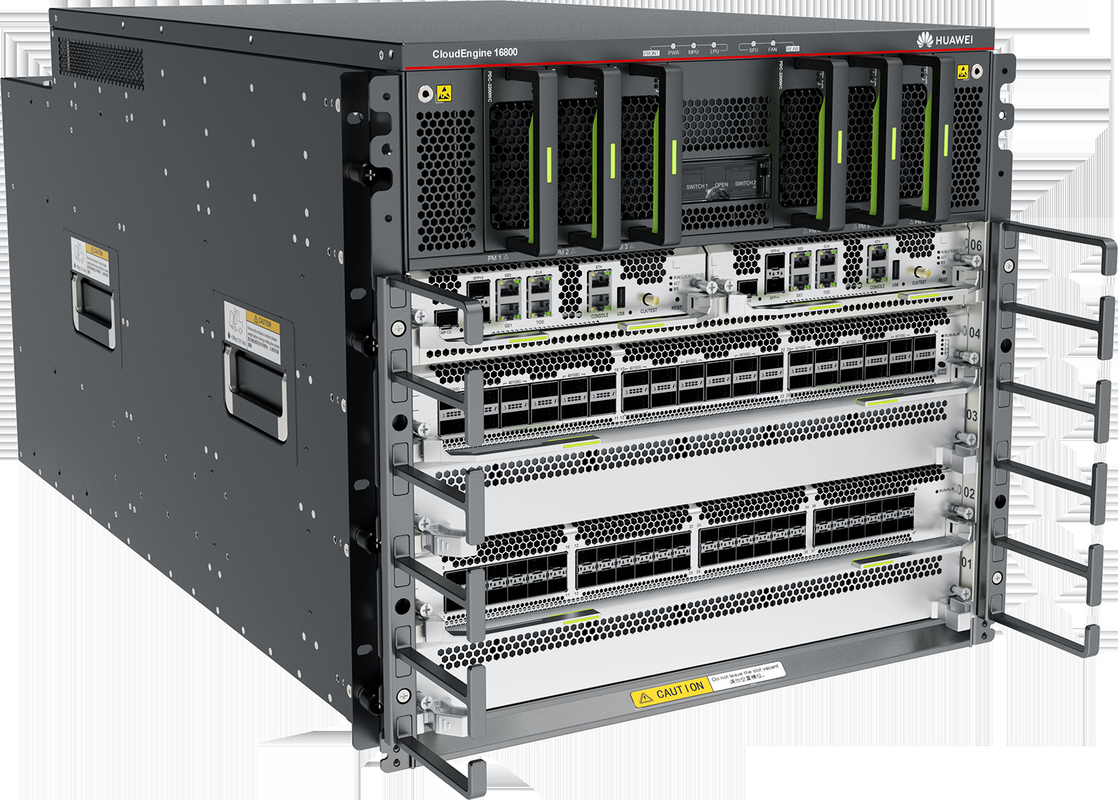

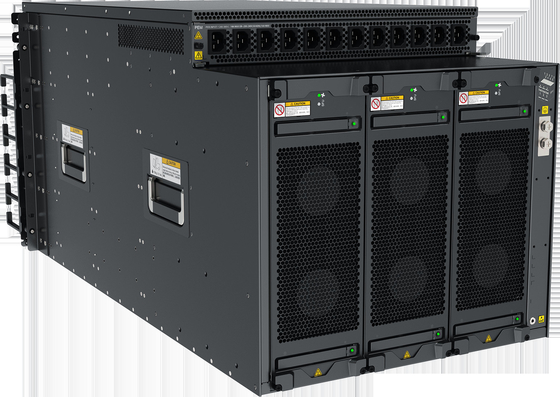

In the CloudEngine 16804 chassis, MPUs and LPUs are installed horizontally in the front of the chassis, and SFUs are installed vertically at the rear of the chassis, as shown in Figure 3-4.
| 1. Chassis header | 2. Front ESD jack | 3. PM | 4. Power switch | 5. MPU |
| 6. LPU | 7. Cable management frame | 8. PEM | 9. Fan module |
10. SFU SFUs are located behind fan modules and are invisible after all fan modules are installed. |
| 11. Location of fan modules and SFUs |
12. Two ground points for a two-hole OT terminal There is a yellow grounding label attached. |
13. SFU wrench | 14. Rear ESD jack | 15. Assembly chassis bar code |
| 16. Serial number label | 17. MAC address label | - | - | - |
| Description | Part Number | Model | First supported version |
|---|---|---|---|
| CE16804 AC&high-voltage DC assembly chassis | 02352RCU | CE16804-AH | V200R005C20 |
| CE16804 DC assembly chassis | 02352RCR | CE16804-DC | V200R005C20 |
