Product Details:
|
| Model: | CE7855-32Q-EI | Processor: | 1.5 GHz, Quad-core |
|---|---|---|---|
| DRAM Memory: | 4 GB | NOR Flash: | 16 MB |
| NAND Flash: | 1 GB | Power Source Type: | AC |
| Dimensions: | 17.4 In. X 23.9 In. X 1.72 In. | Weight: | 11.2 Kg |
| Condition: | Brand New Sealed | Warranty: | 1 Year |
| Lead Time: | 2-3 Days | ||
| High Light: | 40GE Huawei Network Switches,Huawei CE7855-32Q-EI Switch,AC Power Module Huawei Switch |
||

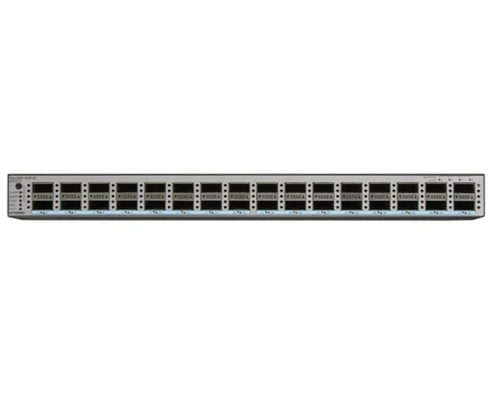

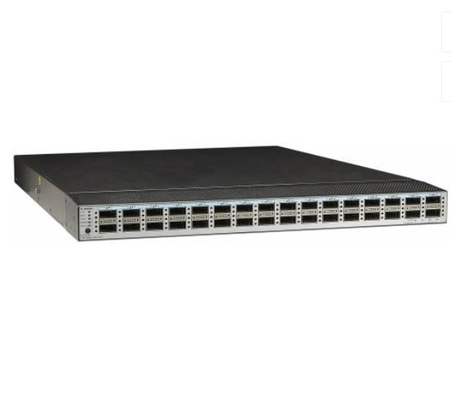

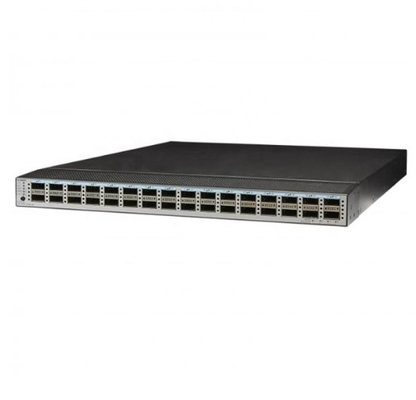

CE7855-EI-B-B0A Overview
Huawei CloudEngine 7800 series (CE7800 for short) switches are next-generation 40G Ethernet switches designed for data centers and high-end campus networks, providing high-performance, high-density 40GE ports, and low latency. The CE7800 has an advanced hardware architecture with 40GE QSFP+ ports. Using the Huawei VRP8 software platform, CE7800 switches provide extensive data center service features and high stacking capability. In addition, the airflow direction (front-to-back or back-to-front) can be changed.
| Model | Description |
| OMXD30000 | Huawei Optical Transceiver OMXD30000, SFP+, 10G, Multi-mode Module (850nm, 0.3km, LC) |
| SFP-GE-LX-SM1310 | Optical Transceiver, eSFP, GE, Single-mode Module (1310nm, 10km, LC) |
| OMXD30009 | Transceiver, QSFP+, 1310nm, 41.25Gbps, -7dBm, 2.3dBm, -11.5dBm, LC, SMF, 10 |
| ESFP-GE-SX-MM850 | Optical Transceiver, eSFP, GE, Multi-mode Module (850nm,0.5km, LC) |
CE7855-EI-B-B0A Specification |
||
| Item | Description | |
| Physical specifications |
|
|
| Environment parameters | Temperature |
NOTE: When the altitude is 1800-5000 m (5096-16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.).
|
| Relative humidity | 5% RH to 95% RH, noncondensing | |
| Altitude | < 5000 m (16404 ft.) | |
| Noise (sound pressure, 27°C) |
|
|
| Power specifications | Power source type | AC |
| AC power input |
|
|
| DC power input |
|
|
| High-voltage DC power input | Not supported | |
| Rated input current |
|
|
| Chassis power consumption | Maximum power consumption | 444 W |
| Typical power consumption | 262 W (100% throughput, QSFP+ cables on 32 ports, double power modules) | |
| Chassis heat dissipation | Maximum heat dissipation | 1515 BTU/hr |
| Typical heat dissipation | 895 BTU/hr (100% throughput, QSFP+ cables on 32 ports, double power modules) | |
| Surge protection | AC Power module: 6 kV in common mode and 6 kV in differential mode | |
| Heat dissipation | Heat dissipation mode | Air cooling |
| Airflow | Front-to-back or back-to-front, depending on the fan modules and power modules | |
| Reliability and availability | Power module backup | 1+1 backup |
| Fan module backup |
1+1 backup not supported NOTE: CE7800 chassis uses two fan modules, with each fan module containing two fans. The four fans in the chassis work in 3+1 backup mode. |
|
| Hot swap | Supported by all power modules and fan modules | |
| Mean time between failures (MTBF) | 49.81 years | |
| Mean time to repair (MTTR) | 1.81 hours | |
| Availability | 0.99999584354 | |
| Technical specifications | Processor | 1.5 GHz, quad-core |
| DRAM Memory | 4 GB | |
| NOR Flash | 16 MB | |
| NAND Flash | 1 GB | |
| Stack | Service port supporting the stack function | 40GE optical ports |
| Certification |
|
|
