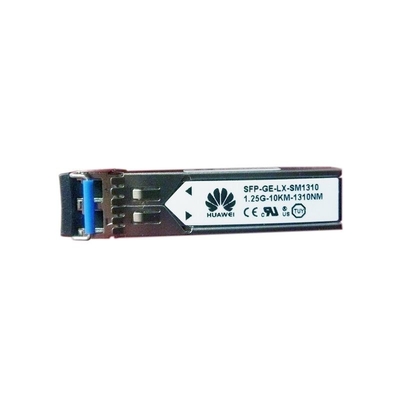

Product Details:
|
| Product Code: | SFP-GE-LX-SM1310-BIDI | Part Number: | 34060470-001 |
|---|---|---|---|
| Description: | BiDi Transceiver,eSFP,Tx1310nm/Rx1490nm,1.25Gb/s,-9dBm,-3dBm,-19.5dBm,LC,SM,10km | Discount Category: | SFP Module |
| Product Line: | Networking | Product Series: | OptiX PTN 905B |
| UOM: | PCS | ||
| Highlight: | Huawei SFP-Ge-Lx-Sm1310 Module,Optical Transceiver SFP Module |
||
The Compatible SFP BIDI transceivers are high performance, cost effective modules supporting duplex data-rate of 1.25Gbps/1.0625Gbps and 20km transmission distance with SMF. The transceiver consists of three sections: a FP laser transmitter, a PIN photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements. The transceivers are compatible with SFP Multi-Source Agreement (MSA) and SFF-8472. For further information, please refer to SFP MSA.
SFP-GE-LX-SM1310-BIDI Specifications | |
| Brand | Huawei |
| Product Type | BiDi Transceiver |
| Form factor | eSFP |
| Transmission Wavelength (Tx/Rx) | Tx1310nm/Rx1490nm |
| Application standard | 1000BASE-BX10 |
| Minimum Tx optical power [dBm] | -9dBm |
| Maximum Tx optical power [dBm] | -3dBm |
| Minimum extinction ratio [dB] | 6 dB |
| Connector Type | LC |
| Transmission rate [bit/s] | 1 Gbit/s |
| Optical fiber type | Single Mode (SM) |
| Maximum Distance | 10km |
| Rx sensitivity [dBm] | -19.5 dBm |
| Overload power [dBm] | -3.0 dBm |
