Product Details:
|
| Product: | S3700-28TP-EI-DC | Downlink Ports: | 24 X 10/100 Base-TX Ports |
|---|---|---|---|
| Uplink Ports: | 2 X 1,000 Base-X SFP Ports 2 X Gigabit Combo Ports (10/100/1,000 Base-T Or 100/1,000 Base-X) | MAC Address: | 16K MAC Address Entries |
| VLAN: | 4K | Forwarding Performance: | 9.6 Mpps |
| Switching Capacity: | 64 Gbit/s | Stacking: | Supported |

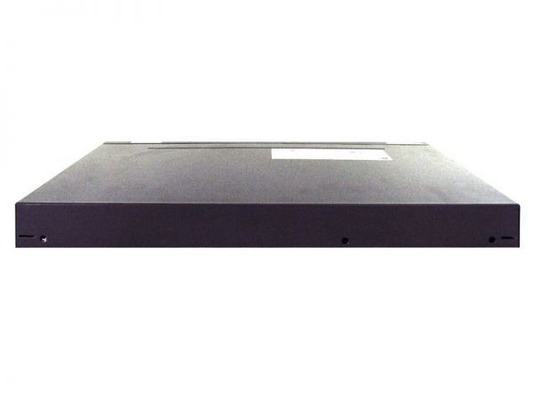

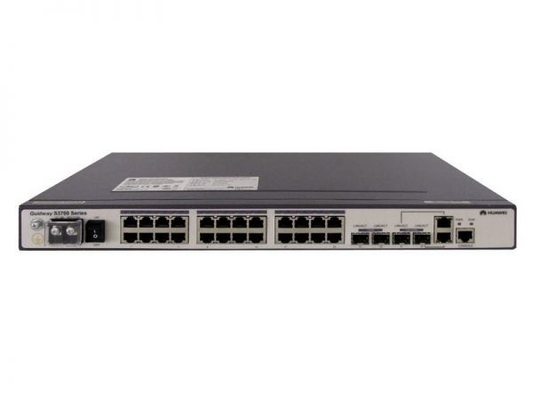

Huawei S3700-28TP-EI-DC is next-generation Layer 3 Ethernet switch which supports IP multicasting and complex routing protocols (Static route, RIPv1, RIPv2, and ECMP, OSPF, IS-IS, and BGP).
S3700-28TP-EI-DC Specification |
|
| Ports description | 24*10/100Base-TX; 2*1000Base-X, 2*GE Combo |
| MAC address table | IEEE 802.1d compliance 16K MAC address entries MAC address learning and aging Static, dynamic, and blackhole MAC address entries Packet filtering based on source MAC addresses |
| VLAN | 4K VLANs Guest VLANs, voice VLAN, and super VLAN MUX VLAN and GVRP VLAN assignment based on MAC addresses, protocols, and IP subnets QinQ Selective QinQ 1:1 VLAN mapping N:1 VLAN mapping |
| Reliability |
RRPP (ring topology, intersecting rings, and multi-instance), implementing protection switchover within 50 ms BFD for OSPF, BFD for IS-IS, BFD for VRRP, and BFD for PIM |
| IP routing |
Static routing, RIPv1, RIPv2, and ECMP OSPF, IS-IS, and BGP |
| IPv6 features | Neighbor Discovery (ND) Path MTU (PMTU) IPv6 ping, IPv6 tracert, and IPv6 Telnet Manually configured tunnel 6to4 tunnel ISATAP tunnel ACLs based on the source IPv6 address, destination IPv6 address, Layer 4 ports, or protocol type MLD v1/v2 snooping |
| Multicast |
1 K multicast groups IGMP v1/v2/v3, PIM-SM, PIM-DM and PIM-SSM |
| QoS/ACL | Rate limiting on packets sent and received by an interface Packet redirection Port-based traffic policing and two-rate three-color CAR Eight queues on each port WRR, DRR, SP, WRR+SP, and DRR+SP queue scheduling algorithms Re-marking of the 802.1p priority and DSCP priority Packet filtering on Layers 2 through 4, filtering out invalid frames based on the source MAC address, destination MAC address, source IP address, destination IP address, port number, protocol type, and VLAN ID Rate limiting in each queue and traffic shaping on ports |
| Security | User privilege management and password protection DoS attack defense, ARP attack defense, and ICMP attack defense Binding of the IP address, MAC address, interface, and VLAN Port isolation, port security, and sticky MAC Blackhole MAC address entries Limit on the number of learned MAC addresses 802.1x authentication and limit on the number of users on an interface AAA authentication, RADIUS authentication, HWTACACS authentication, and NAC SSH v2.0 CPU defense Blacklist and whitelist |
| Surge protection | 6KV surge protection capability on service ports (1KV on service ports on PoE devices) |
| Management and maintenance | iStack MAC Forced Forwarding (MFF) Remote configuration and maintenance using Telnet Auto-Config Virtual cable test Ethernet OAM (IEEE 802.3ah and 802.1ag) Dying gasp power-off alarm (S3700-28TP-EI-MC-AC) SNMP v1/v2c/v3 and RMON Web NMS |
| Operating environment | Operating temperature: 0℃–50℃(long term); Relative humidity: 10%–90% (non-condensing) |
| Power supply | DC: Rated voltage range: –48V to –60V Maximum voltage range: –36V to –72V DC Note: PoE-support switches do not use DC power supplies. |
| Dimensions (W x D x H) | 442 mm x 220 mm x 43.6 mm |
| Weight | S3700-28TP-EI<2.5Kg |
| Power consumption | S3700-28TP-EI<20W |
