Product Details:
|
| Product: | S2700-26TP-EI-DC | Downlink Ports: | 24 X Ethernet 10/100 Ports |
|---|---|---|---|
| Uplink Ports: | 2 X Dual-purpose 10/100/1,000 Or SFP Ports | MAC Address: | 8K MAC Address Entries |
| Forwarding Performance: | 6.6 Mpps | Switching Capacity: | 32 Gbit/s |
| Heat Dissipation: | Fan-free Natural Heat Dissipation | Installation Mode: | Rack Mounting, Desk Mounting, Wall Mounting |

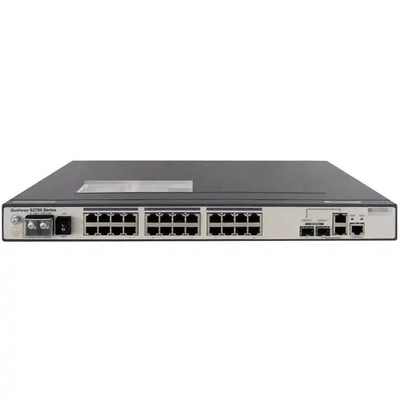

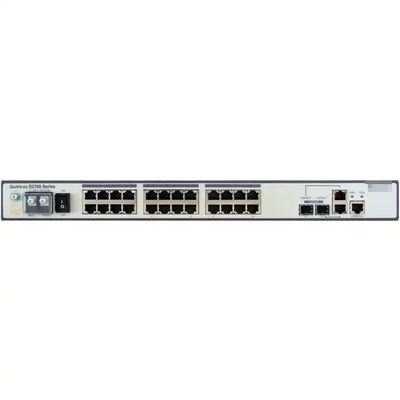

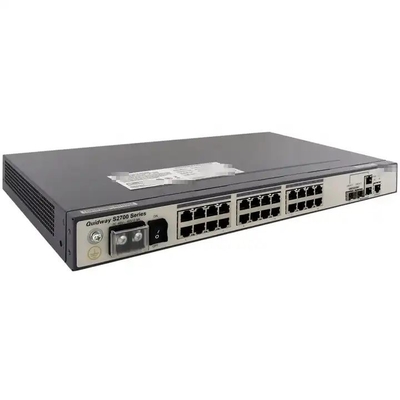

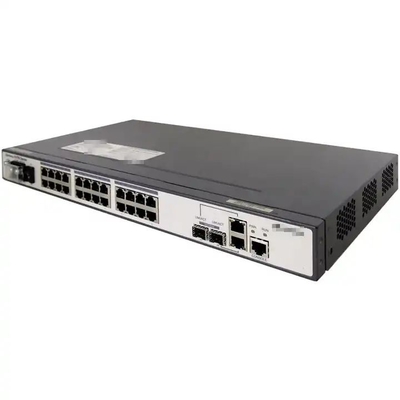

Huawei S2700-26TP-EI-DC is a switch which supports 24 x Ethernet 10/100 ports and 2 x dual-purpose 10/100/1,000 or SFP ports. It’s one of the S2700 Series Enterprise Switches which deliver 100 Mbit/s access switches for enterprise campus networks.
S2700-26TP-EI-DC Specifications |
|
| Product Model | S2700-26TP-EI-DC |
| Type | Network Switch |
| Ports | 24 Ethernet 10/100 ports 2 dual-purpose 10/100/1000 or SFP |
| Power Supply | DC -48V |
| Switching Capacity | 12.8 Gbps |
| PoE | Not supported |
| Memory Size | 64 MB |
| Flash Memory Size | 16 MB |
| Mean time to repair (MTTR) | 2 hours |
| Service port surge protection | Common mode: ±6 kV |
| IEEE 802.3af/at Support | Yes |
| Power Consumption | 65W |
| Dimensions (H x W x D) | 43.6 mm x 442.0 mm x 220.0 mm (1.72 in. x 17.4 in. x 8.7 in.) |
| Operating Temperature | -5°C to +50°C (23°F to 122°F) |
| Storage Temperature | -40°C to 70°C |
| Operating Humidity | 5% to 95% noncondensing |
| Certification |
EMC certification, Safety certification |
| Rack Mountable | Yes |
| Management Interface | Console, Telnet, SSH, Web |
