Product Details:
|
| Product Code: | ESFP-GE-SX-MM850 | Transceiver Form Factor: | ESFP |
|---|---|---|---|
| Transmission Speed: | GE | Center Wavelength (nm): | 850 |
| Standard Compliance: | 1000base-SX | Connector Type: | LC |
| Transmit Power (dBm): | -9.5 To -2.5 | Maximum Receiver Sensitivity (dBm): | -17.0 |

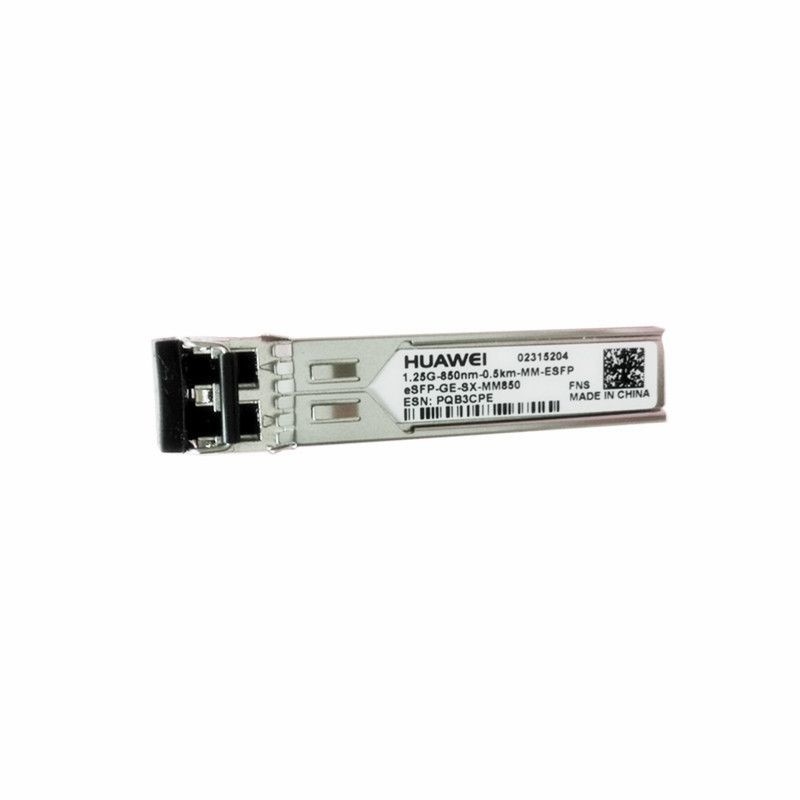

Huawei eSFP-GE-SX-MM850 is Optical Transceiver. It’s a Multi-mode Module.
| Transceiver form factor | eSFP |
| Transmission speed | GE |
| Center wavelength (nm) | 850 |
| Standard compliance | 1000base-SX |
| Connector type | LC |
|
Applicable cable and maximum transmission distance |
· Multimode fiber (with modal bandwidth of 160 MHz*km and diameter of 62.5 μm): 0.22 km · Multimode fiber (OM1): 0.275 km · Multimode fiber (with modal bandwidth of 400 MHz*km and diameter of 50 μm): 0.5 km · Multimode fiber (OM2): 0.55 km · Multimode fiber (OM3): 1 km |
| Transmit power (dBm) | -9.5 to -2.5 |
| Maximum receiver sensitivity (dBm) | -17.0 |
| Overload power (dBm) | 0 |
| Extinction ratio (dB) | 9 |
| Operating temperature | 0°C to 70°C (32°F to 158°F) |
| Net Dimension(D x W x H mm) | 110 x 70 x 37 |
