| Form Factor/Height |

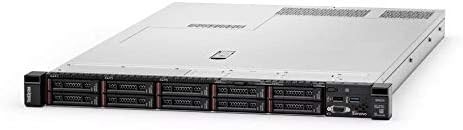

1U rack server
|
|---|---|
| Processor (max)/Cache (max) |
Up to 2 second-generation Intel® Xeon® Platinum processor, up to 205W
|
| Memory | Up to 7.5TB in 24x slots, using 128GB DIMMs; 2666MHz / 2933MHz TruDDR4 |
| Expansion Slots |
Up to 4x PCIe 3.0 slots (with two CPUs), including 1x dedicated PCIe for RAID adapter
|
| Drive Bays | Up to 12 bays (includes 4x AnyBay): 3.5": 4x hot-swap SAS/SATA; 2.5": 4x hot-swap AnyBay + 6x hotswap SAS/SATA + 2x rear; or 8x hot-swap SAS/SATA; or 10x hot-swap U.2; plus up to 2x mirrored M.2 boot |
| HBA/RAID Support | HW RAID (up to 16 ports) with flash cache; up to 16-port HBAs |
| Security and Availability | TPM 1.2/2.0; PFA; hot-swap/redundant drives, fans, and PSUs; 45°C continuous operation; light path diagnostic LEDs; front-access diagnostics via dedicated USB port |
| Network Interface | 2/4-port 1GbE LOM; 2/4-port 10GbE LOM with Base-T or SFP+; 1x dedicated 1GbE management port |
| Power | 2x hot-swap/redundant: 550W/750W/1100W AC 80 PLUS Platinum; or 750W 80 AC PLUS Titanium |
| Systems Management | XClarity Controller embedded management, XClarity Administrator centralized infrastructure delivery, XClarity Integrator plugins, and XClarity Energy Manager centralized server power management |
| Operating Systems Supported |
Microsoft, SUSE, Red Hat, VMware vSphere. Visit lenovopress.com/osig for more information.
|
| Limited Warranty | 1- and 3-year customer replaceable unit and onsite service, next business day 9x5, optional service upgrades |
