S5735-L24P4X-A1 CloudEngine S5735-L24T4X-A1 (2410/100/1000BASE-T Ports PoE+ 410GE SFP+ Ports AC Power)

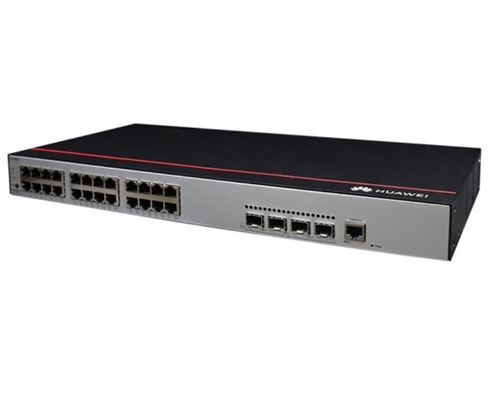

Large Image : S5735-L24P4X-A1 CloudEngine S5735-L24T4X-A1 (24*10/100/1000BASE-T Ports PoE+ 4*10GE SFP+ Ports AC Power)

Product Details:

Place of Origin:	China
Brand Name:	Huawei
Certification:	EMC
Model Number:	S5735-L24P4X-A1

Contact Now

S5735-L24P4X-A1 CloudEngine S5735-L24T4X-A1 (2410/100/1000BASE-T Ports PoE+ 410GE SFP+ Ports AC Power)

Description

Model:	S5735-L24P4X-A1	Memory:	512 MB
Flash Memory:	512 MB	Power Supply Mode:	AC Built-in
PoE:	Not Supported	Dimensions:	1.72 In. X 17.4 In. X 8.94 In.
Condition:	Brand New Sealed	Warranty:	1 Year
Lead Time:	2-3 Days	Payment:	T/T, Western Union, Paypal
Shipping:	DHL, Fedex, UPS
Highlight:	Huawei S5735-L24T4X-A1 PoE+ switch , 24-port Gigabit Ethernet switch with PoE+ , Huawei CloudEngine switch with 10GE SFP+ ports

S5735-L24P4X-A1 Overview

The S5735-L24P4X-A1 from the Huawei CloudEngine S5700 Series Switches adopts 24 10/100 / 1000Base-T Ethernet port, 4 10 Gigabit SFP, POE +, AC power supply.

Huawei CloudEngine S5735-L is a series of simplified gigabit access switches that provide 12–48 flexible all-GE downlink ports and four fixed GE or 10 GE uplink ports. They are designed for enterprise campus network access and gigabit to the desktop. Built on next-generation, high-performance hardware and powered by Huawei’s Versatile Routing Platform (VRP), CloudEngine S5735-L switches feature flexible Ethernet networking, diversified security control, and support for multiple Layer 3 routing protocols — providing higher performance and more powerful service processing capabilities for networks.

S5735-L24P4X-A1 CloudEngine S5735-L24T4X-A1 (24*10/100/1000BASE-T Ports PoE+ 4*10GE SFP+ Ports AC Power) 0

Product Model	S5735S-L12T4S-A S5735S-L12P4S-A	S5735S-L24T4S-A S5735S-L24P4S-A	S5735S-L24T4X-A S5735S-L24P4X-A	S5735S-L48T4S-A	S5735S-L48T4X-A S5735S-L48P4X-A	S5735S-L32ST4X-A
Forwarding Performance	24 Mpps	42 Mpps	96 Mpps	78 Mpps	132 Mpps	108 Mpps
Switching Capacity2	32 Gbit/s/336 Gbit/s	56 Gbit/s/336 Gbit/s	128 Gbit/s/336 Gbit/s	104 Gbit/s/432 Gbit/s	176 Gbit/s/432 Gbit/s	144 Gbit/s/432 Gbit/s
Fixed Ports	12 x 10/100/1000Base-T ports, 4 x GE SFP ports	24 x 10/100/1000Base-T ports, 4 x GE SFP ports	24 x 10/100/1000Base-T ports, 4 x 10 GE SFP+ ports	48 x 10/100/1000BASE-T ports, 4 x GE SFP ports	48 x 10/100/1000BASE-T ports, 4 x 10 GE SFP+ ports	24 x GE SFP ports, 8 x 10/100/1000BASE-T ports, 4 x 10 GE SFP+ ports
PoE+	CloudEngine S5735S-L12P4S-A: Supported CloudEngine S5735S-L24P4S-A: Supported CloudEngine S5735S-L24P4X-A: Supported CloudEngine S5735S-L48P4X-A: Supported Other: Not supported

S5735-L24P4X-A1 Specification

S5735-L24P4X-A1 Specification
Dimensions without packaging (H x W x D) [mm(in.)]	Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 220.0 mm (1.72 in. x 17.4 in. x 8.7 in.) Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm x 442.0 mm x 227.0 mm (1.72 in. x 17.4 in. x 8.94 in.)
Dimensions with packaging (H x W x D) [mm(in.)]	90.0 mm x 550.0 mm x 360.0 mm (3.54 in. x 21.65 in. x 14.17 in.)
Chassis height [U]	1 U
Typical power consumption [W]	42.4 W
Typical heat dissipation [BTU/hour]	144.67 BTU/hour
Maximum power consumption [W]	Not providing the PoE function: 53.8 W 100% PoE loads: 433.8 W (PoE: 380 W)
Maximum heat dissipation [BTU/hour]	Not providing the PoE function: 183.57 100% PoE loads: 1480.17
MTBF [year]	52.74 year
MTTR [hour]	2 hour
Availability	>0.99999
Noise at normal temperature (acoustic power) [dB(A)]	50 dB(A)
Noise at normal temperature (acoustic pressure) [dB(A)]	38.2 dB(A)
Number of card slots	0
Number of power slots	0
Number of fans modules	2
Redundant power supply	Not supported
Long-term operating temperature [°C(°F)]	-5°C to +50°C (23°F to 122°F) at an altitude of 0-1800 m (0-5906 ft.)
Short-term operating temperature [°C(°F)]	-5°C to +55°C (23°F to 131°F) at an altitude of 0-1800 m (0-5906 ft.)
Restriction on the operating temperature variation rate [°C(°F)]	When the altitude is 1800-5000 m (5906-16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.). The equipment can operate beyond the normal operating temperature range for a short-term period, but the following conditions must be met: The equipment operates at a temperature of over 50°C (122°F) consecutively for at most 96 hours in one year. The equipment operates at a temperature of over 50°C (122°F) for a total of no more than 360 hours in one year. The equipment operates at a temperature of over 50°C (122°F) for no more in 15 times in one year. The equipment may be damaged or experience unexpected exceptions if any of the preceding limits is exceeded. The equipment cannot start when the temperature is lower than 0°C (32°F). The maximum distance of optical modules used in these conditions cannot exceed 10 km.
Storage temperature [°C(°F)]	-40°C to +70°C (-40°F to +158°F)
Long-term operating relative humidity [RH]	5% to 95%, noncondensing
Long-term operating altitude [m(ft.)]	0-5000 m (0-16404 ft.)
Storage altitude [m(ft.)]	0-5000 m (0-16404 ft.)
Power supply mode	AC built-in
Rated input voltage [V]	AC input: 100 V AC to 240 V AC, 50/60 Hz High-Voltage DC input: 240 V DC
Input voltage range [V]	AC input: 90 V AC to 290 V AC, 45 Hz to 65 Hz High-Voltage DC input: 190 V DC to 290 V DC
Maximum input current [A]	6 A
Memory	512 MB
Flash memory	512 MB
Console port	RJ45
Eth Management port	Not supported
USB	Supported
RTC	Not supported
RPS input	Not supported
Service port surge protection [kV]	98011318: Common mode: ±7 kV 98011318-001: Common mode: ±2 kV
Power supply surge protection [kV]	±6 kV in differential mode, ±6 kV in common mode
Types of fans	Built-in
Heat dissipation mode	Heat dissipation with fan, intelligent fan speed adjustment
Airflow direction	Air intake from left and front, air exhaustion from right
PoE	Supported
Certification	EMC certification Safety certification Manufacturing certification

S5735-L24P4X-A1 CloudEngine S5735-L24T4X-A1 (24*10/100/1000BASE-T Ports PoE+ 4*10GE SFP+ Ports AC Power) 2
