Product Details:
|
| Model: | GLC-EX-SM | Form Factor: | SFP |
|---|---|---|---|
| Wavelength: | 1310 Nm | Max Distance: | 40 Km |
| Data Rate: | 1.25Gb/s | Weight: | 0.025 Kg |
| Condition: | Brand New Sealed | Warranty: | 1 Year |
| Lead Time: | 2-3 Days | Payment: | T/T, Western Union, Paypal |
| Shipping: | DHL, Fedex, UPS | ||
| High Light: | Duplex LC Connector SFP Transceiver Module,GLC-EX-SM Cisco SFP Modules,1000BASE-EX Cisco SFP Modules |
||

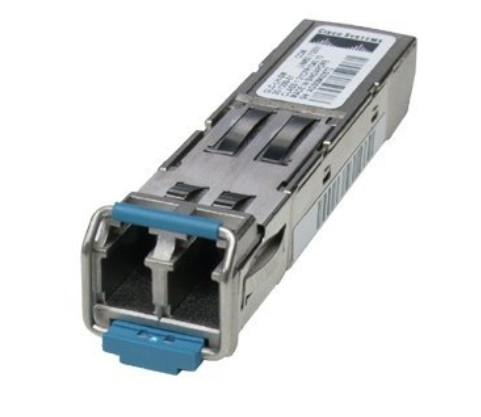

This SFP module is suitable for use with Cisco equipment and is equivalent to genuine part number GLC-EX-SM. It is programmed and tested at the factory, to ensure working with Cisco Security Gateway Router, PoE Gigabit Switches, and gigabit SFP media converters. This hot-pluggable transceiver features a 1310nm DFB transmitter and PIN receiver into a LC Duplex connector. It supports 1G fiber connectivity with maximum 40km transmission distance.
| Compatible OEM Part Number | GLC-EX-SM | Optcore Part Number | OSP1250-3140DCR-CSC |
| Form Factor | SFP | Data Rate | 1.25Gb/s |
| Wavelength | 1310 nm | Fiber Type | SMF |
| Max Distance | 40 km | Optical Components | DFB/PIN |
| Transmitter Power | -5 ~ 0 dBm | Extinction ratio | > 9 dB |
| Receiver Sensitivity | < -24 dBm | Receiver Overload | > 0 dBm |
| Connector | LC Duplex | Digital Diagnostic Monitoring | Yes |
| Environment | Operating: 0°C to 70°C Storage: -40°C to 85°C |
Weight | 0.025 kg |
| Application | 1x Fiber Channel, Switch to Switch Interface
Gigabit Ethernet, Switched Backplane Applications Router/Server Interface, Other Optical Links |
Compliance | IEC/EN 61000-4-2,IEC-60825 FDA 21CFR 1040.10 and 1040.11 RoHS |
