Product Details:
|
| Model: | N9K-C9332PQ | Ports: | 32 QSFP+ Ports |
|---|---|---|---|
| Supported Speeds: | 40 Gigabit Ethernet Speeds | Typical Power (AC): | 228W |
| Frequency: | 50 To 60 Hz (AC) | Dimension: | 1.72 X 17.3 X 22.5 In. |
| Weight: | 10kg | Condition: | Brand New Sealed |
| Warranty: | 1 Year | Lead Time: | 2-4 Days |
| Payment: | T/T, Western Union, Paypal | Shipping: | DHL, Fedex, UPS |

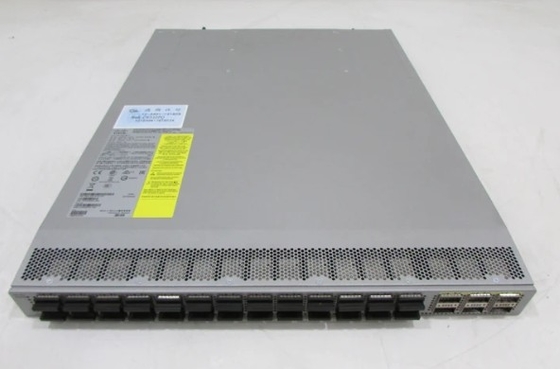

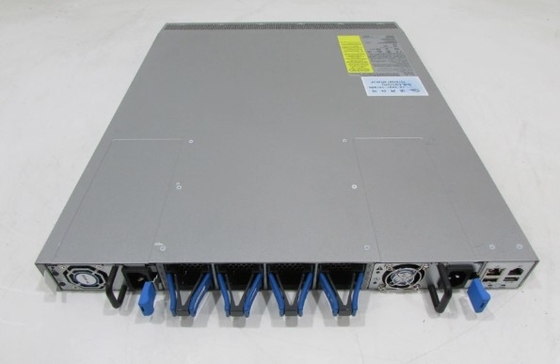

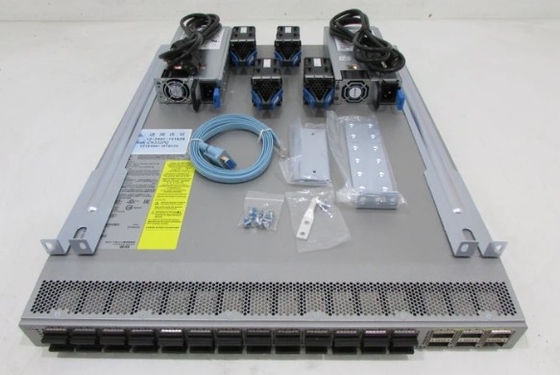

N9K-C9332PQ is the Nexus 9300 with 32p 40G QSFP. The Cisco Nexus 9300 platform consists of fixed-port switches designed for top-of-rack (ToR) and middle-of-row (MoR) deployment in data centers that support enterprise applications, service provider hosting, and cloud computing environments. They are Layer 2 and 3 nonblocking 10 and 40 Gigabit Ethernet switches with up to 2.56 terabits per second (Tbps) of internal bandwidth.
| Product Code | N9K-C9332PQ | N9K-C93128TX |
| Ports | 32 QSFP+ ports | 96 fixed 1/10GBASE-T ports |
| Supported speeds | 40 Gigabit Ethernet speeds | 100 Megabit Ethernet and 1/10 Gigabit Ethernet speeds |
| Physical (H x W x D) | 1.72 x 17.3 x 22.5 in. (4.4 x 43.9 x 57.1 cm) | 5.3 x 17.5 x 22.5 in. (13.3 x 44.5 x 57.1 cm) |
| Weight | 22 lb (10.0 kg) (without power supplies or fans) | 32.56 lb (14.8 kg) (without power supplies, fans, or uplink module) |
N9K-C9332PQ Specification |
|
| Ports | 32 QSFP+ ports |
| Supported speeds | 40 Gigabit Ethernet speeds |
| Power supplies (up to 2) | 650-watt (W) AC, 930W DC, or 1200W HVAC/HVDC |
| Typical power (AC) | 228W |
| Maximum power (AC) | 508W |
| Input voltage (AC) | 100 to 240V |
| Input voltage (HVAC) | 200 to 277V |
| Input voltage (DC) |
-40V to -72V DC (min-max) -48V to -60V DC (nominal) |
| Input voltage (HVDC) | –240 to –380V |
| Frequency (AC) | 50 to 60 Hz |
| Fans | 4 |
| Physical (H x W x D) | 1.72 x 17.3 x 22.5 in. (4.4 x 43.9 x 57.1 cm) |
| Acoustics | 49.1 dBA at 40% fan speed, 65.6 dBA at 70% fan speed, and 78.5 dB at 100% fan speed |
| RoHS compliance | Yes |
| Weight | 22 lb (10.0 kg) (without power supplies or fans) |
