Product Details:
|
| Description: | Cisco 40GBASE-LR4 QSFP Module For SMF With OTU-3 Data-rate Support | Dimensions: | 13.5 X 18.4 X 72.4 Mm |
|---|---|---|---|
| Cable Type: | SMF | Core Size (microns): | G.652 |
| Cable Distance: | 10km | Manufacturer: | Cisco |
| Power Consumption (W): | 3.5 |
The Cisco® 40GBASE QSFP (Quad Small Form-Factor Pluggable) portfolio offers customers a wide variety of high-density and low-power 40 Gigabit Ethernet connectivity options for data center, high-performance computing 00networks, enterprise core and distribution layers, and service provider applications.
QSFP-40G-LR4= Specification |
|

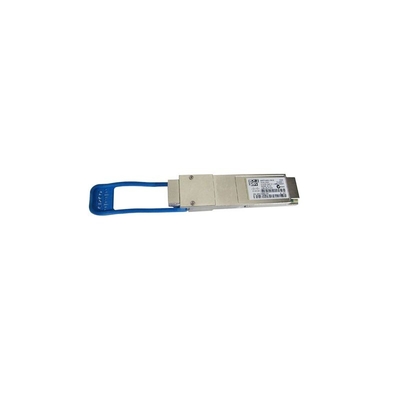

| Description | Cisco 40GBASE-LR4 QSFP Module for SMF with OTU-3 data-rate support |
| Dimensions | 13.5 x 18.4 x 72.4 mm |
| QSFP Port cabling specifications | |
| Wavelength (nm) | 1310 |
| Cable Type | SMF |
| Core Size (microns) | G.652 |
| Modal Bandwidth (MHz-km) | |
| Cable Distance | 10km |
| Power Consumption (W) | 3.5 |
| Pull Tab Color | Blue |
| Optical characteristics | |
| Type | 40GBASE-LR4 with OTU3 data rate support, 1310 nm, SMF |
| Transmit Power (dBm) |
Max:+2.3 per lane Min:-7.0 per lane |
| Receive Power (dBm) |
Max:+2.3 per lane Min:-13.7 per lane |
| Transmit and Receive Wavelength (nm) | Four lanes: 1271, 1291, 1311, 1331 |
| Environmental conditions | |
| Commercial temperature | 0 to 70°C (32 to 158°F) |
| Storage temperature | -40 to 85°C (-40 to 185°F) |
| Regulatory and standards compliance | |
|
Standards
|
•GR-20-CORE: Generic Requirements for Optical Fiber and Optical Fiber Cable •GR-326-CORE: Generic Requirements for Single-Mode Optical Connectors and Jumper Assemblies •GR-1435-CORE: Generic Requirements for Multifiber Optical Connectors •IEEE 802.3ba (-SR4, -LR4) •IEEE 802.3ae (-CSR4) •QSFP+ MSA SFF-8436 •SFP+ MSA SFF-8431 and -8461 •RoHS 6 |
|
Safety
|
•Cable jacket of QSFP copper modules is UL E116441 Compliant •QSFP copper cables are ELV Compliant |
