Product Details:
|
| Description: | Cisco 40GBASE-CSR4 QSFP Module For MMF | Dimensions: | 13.5 X 18.4 X 72.4 Mm |
|---|---|---|---|
| Cable Type: | MMF | Modal Bandwidth (MHz-km): | 500 (OM2) 2000 (OM3) 4700 (OM4) |
| Power Consumption (W): | 1.5 | Manufacturer: | Cisco |
| Applications: | Ethernet |
40GBASE QSFP (Quad Small Form-Factor Pluggable) portfolio offers customers a wide variety of high-density and low-power 40 Gigabit Ethernet connectivity options for data center, high-performance computing 00networks, enterprise core and distribution layers, and service provider applications.
QSFP-40G-CSR4 Specification |
|

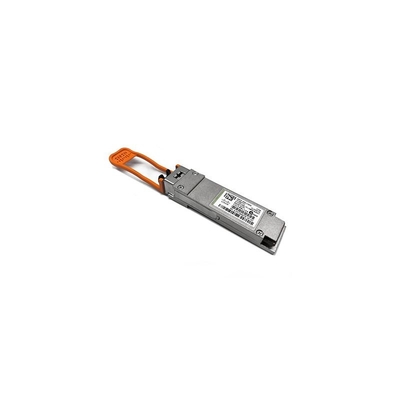

| Description | Cisco 40GBASE-CSR4 QSFP Module for MMF |
| Dimensions | 13.5 x 18.4 x 72.4 mm |
| QSFP Port cabling specifications | |
| Wavelength (nm) | 850 |
| Cable Type | MMF |
| Core Size (microns) |
50.0 50.0 50.0 |
| Modal Bandwidth (MHz-km) |
500 (OM2) 2000 (OM3) 4700 (OM4) |
| Cable Distance |
82m 300m 400m |
| Power Consumption (W) | 1.5 |
| Pull Tab Color | Orange |
| Optical characteristics | |
| Type | 40GBASE-CSR4, 4 lanes, 850 nm MMF |
| Transmit Power (dBm) |
Max:0.0 per lane Min:-7.3 per lane |
| Receive Power (dBm) |
Max:0.0 per lane Min:-9.9 per lane |
| Transmit and Receive Wavelength (nm) | 840 to 860 |
| Environmental conditions | |
| Commercial temperature | 0 to 70°C (32 to 158°F) |
| Storage temperature | -40 to 85°C (-40 to 185°F) |
| Regulatory and standards compliance | |
|
Standards
|
•GR-20-CORE: Generic Requirements for Optical Fiber and Optical Fiber Cable •GR-326-CORE: Generic Requirements for Single-Mode Optical Connectors and Jumper Assemblies •GR-1435-CORE: Generic Requirements for Multifiber Optical Connectors •IEEE 802.3ba (-SR4, -LR4) •IEEE 802.3ae (-CSR4) •QSFP+ MSA SFF-8436 •SFP+ MSA SFF-8431 and -8461 •RoHS 6 |
|
Safety
|
•Cable jacket of QSFP copper modules is UL E116441 Compliant •QSFP copper cables are ELV Compliant |
