S5735-L8P4X-A1 CloudEngine S5735-L8P4X-A1 (8*10/100/1000BASE-T ports 4*10GE SFP+ ports PoE+ AC power)

S5735-L8P4X-A1 CloudEngine S5735-L8P4X-A1 (8*10/100/1000BASE-T ports 4*10GE SFP+ ports PoE+ AC power)
S5735-L8P4X-A1 CloudEngine S5735-L8P4X-A1 (8*10/100/1000BASE-T ports 4*10GE SFP+ ports PoE+ AC power)
S5735-L8P4X-A1 CloudEngine S5735-L8P4X-A1 (8*10/100/1000BASE-T ports 4*10GE SFP+ ports PoE+ AC power) S5735-L8P4X-A1 CloudEngine S5735-L8P4X-A1 (8*10/100/1000BASE-T ports 4*10GE SFP+ ports PoE+ AC power) S5735-L8P4X-A1 CloudEngine S5735-L8P4X-A1 (8*10/100/1000BASE-T ports 4*10GE SFP+ ports PoE+ AC power) S5735-L8P4X-A1 CloudEngine S5735-L8P4X-A1 (8*10/100/1000BASE-T ports 4*10GE SFP+ ports PoE+ AC power) S5735-L8P4X-A1 CloudEngine S5735-L8P4X-A1 (8*10/100/1000BASE-T ports 4*10GE SFP+ ports PoE+ AC power) S5735-L8P4X-A1 CloudEngine S5735-L8P4X-A1 (8*10/100/1000BASE-T ports 4*10GE SFP+ ports PoE+ AC power) S5735-L8P4X-A1 CloudEngine S5735-L8P4X-A1 (8*10/100/1000BASE-T ports 4*10GE SFP+ ports PoE+ AC power)

Large Image :  S5735-L8P4X-A1 CloudEngine S5735-L8P4X-A1 (8*10/100/1000BASE-T ports 4*10GE SFP+ ports PoE+ AC power)

Product Details:
Place of Origin: China
Brand Name: Huawei
Certification: CE
Model Number: S5735-L8P4X-A1
Document: LONRISE EQUIPMENT Company ...le.pdf
Contact Now

S5735-L8P4X-A1 CloudEngine S5735-L8P4X-A1 (8*10/100/1000BASE-T ports 4*10GE SFP+ ports PoE+ AC power)

Description
Model: S5735-L8P4X-A1 Ports: 8 X 10/100/1000Base-T Ports, 4 X GE SFP Ports AC Power Supply PoE+
Flash Memory: 512 MB Power Supply Mode: AC Built-in
Net Weight: 2.25 Kg Condition: Brand New Sealed
Warranty: 1 Year Lead Time: 2-4 Days
Payment: T/T, Western Union, Paypal Shipping: DHL, Fedex, UPS
Highlight:

Huawei CloudEngine S5735-L8P4X-A1 switch

,

8-port Gigabit PoE+ network switch

,

10GE SFP+ Huawei switch with AC power

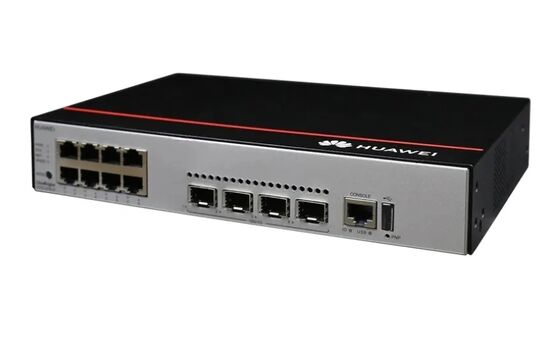

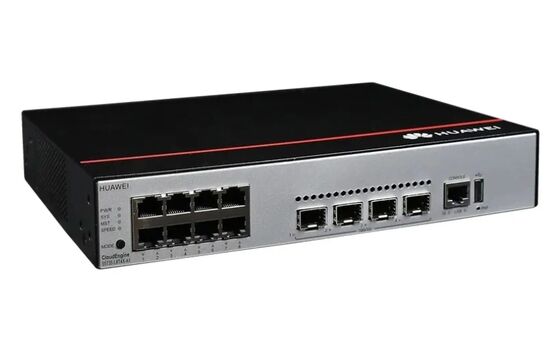

S5735-L8P4X-A1 Overview

Built on next-generation, high-performance hardware and powered by Huawei’s Versatile Routing Platform (VRP), CloudEngine S5735-L switches feature flexible Ethernet networking, diversified security control, and support for multiple Layer 3 routing protocols — providing higher performance and more powerful service processing capabilities for networks.

S5735-L8P4X-A1 CloudEngine S5735-L8P4X-A1 (8*10/100/1000BASE-T ports 4*10GE SFP+ ports PoE+ AC power) 0 S5735-L8P4X-A1 CloudEngine S5735-L8P4X-A1 (8*10/100/1000BASE-T ports 4*10GE SFP+ ports PoE+ AC power) 1
Compare to Similar Items
Product Model

S5735S-L12T4S-A

S5735S-L12P4S-A

S5735S-L24T4S-A

S5735S-L24P4S-A

S5735S-L24T4X-A

S5735S-L24P4X-A

S5735S-L48T4S-A

S5735S-L48T4X-A

S5735S-L48P4X-A

S5735S-L32ST4X-A
Forwarding Performance24 Mpps42 Mpps96 Mpps78 Mpps132 Mpps108 Mpps
Switching Capacity232 Gbit/s/336 Gbit/s56 Gbit/s/336 Gbit/s128 Gbit/s/336 Gbit/s104 Gbit/s/432 Gbit/s176 Gbit/s/432 Gbit/s144 Gbit/s/432 Gbit/s
Fixed Ports12 x 10/100/1000Base-T ports, 4 x GE SFP ports24 x 10/100/1000Base-T ports, 4 x GE SFP ports24 x 10/100/1000Base-T ports, 4 x 10 GE SFP+ ports48 x 10/100/1000BASE-T ports, 4 x GE SFP ports48 x 10/100/1000BASE-T ports, 4 x 10 GE SFP+ ports24 x GE SFP ports, 8 x 10/100/1000BASE-T ports, 4 x 10 GE SFP+ ports
PoE+CloudEngine S5735S-L12P4S-A: Supported
CloudEngine S5735S-L24P4S-A: Supported
CloudEngine S5735S-L24P4X-A: Supported
CloudEngine S5735S-L48P4X-A: Supported
Other: Not supported
S5735-L8P4X-A1 Specification
  • Not providing the PoE function: 39.1 W
  • 100% PoE loads: 163.1 W (PoE: 124 W)
  • Not providing the PoE function: 133.41
  • 100% PoE loads: 556.51
S5735-L8P4X-A1 Specification
Dimensions without packaging (H x W x D) [mm(in.)]

Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 300.0 mm x 220.0 mm (1.72 in. x 11.8 in. x 8.7 in.)

Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm x 300.0 mm x 227.0 mm (1.72 in. x 11.8 in. x 8.94 in.)

Dimensions with packaging (H x W x D) [mm(in.)]110.0 mm x 435.0 mm x 360.0 mm (4.33 in. x 17.13 in. x 14.17 in.)
Chassis height [U]1 U
Typical power consumption [W]28.7 W
Typical heat dissipation [BTU/hour]97.93 BTU/hour
Maximum power consumption [W]
Maximum heat dissipation [BTU/hour]
MTBF [year]62.46 year
MTTR [hour]2 hour
Availability>0.99999
Noise at normal temperature (acoustic power) [dB(A)]42.2 dB(A)
Noise at normal temperature (acoustic pressure) [dB(A)]30.5 dB(A)
Number of card slots0
Number of power slots0
Number of fans modules1
Redundant power supplyNot supported
Long-term operating temperature [°C(°F)]

-5°C to +50°C (23°F to 122°F) (0 m to 1800 m altitude, non-industrial optical modules)

-5°C to +55°C (23°F to 131°F) (0 m to 1800 m altitude, industrial optical modules with transmission distances less than or equal to 10 km)

Short-term operating temperature [°C(°F)]Not supported
Restriction on the operating temperature variation rate [°C(°F)]

When the altitude is 1800-5000 m (5906-16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.).

The switch cannot be started when the ambient temperature is lower than 0°C (32°F).

The operating temperature ranges from -5°C to +45°C (23°F to 113°F) when optical modules with transmission distances greater than or equal to 70 km are used.

Storage temperature [°C(°F)]-40°C to +70°C (-40°F to +158°F)
Long-term operating relative humidity [RH]5% to 95%, noncondensing
Long-term operating altitude [m(ft.)]0-5000 m (0-16404 ft.)
Storage altitude [m(ft.)]0-5000 m (0-16404 ft.)
Power supply modeAC built-in
Rated input voltage [V]AC input: 100 V AC to 240 V AC, 50/60 Hz
Input voltage range [V]AC input: 90 V AC to 290 V AC, 45 Hz to 65 Hz
Maximum input current [A]3 A
Memory512 MB
Flash memory512 MB
Console portRJ45
Eth Management portNot supported
USBSupported
RTCNot supported
RPS inputNot supported
Service port surge protection [kV]Common mode: ±7 kV
Power supply surge protection [kV]±6 kV in differential mode, ±6 kV in common mode
Types of fansBuilt-in
Heat dissipation modeHeat dissipation with fan, intelligent fan speed adjustment
Airflow directionAir intake from left and front, air exhaustion from right
PoESupported
Certification

EMC certification

Safety certification

Manufacturing certification

S5735-L8P4X-A1 CloudEngine S5735-L8P4X-A1 (8*10/100/1000BASE-T ports 4*10GE SFP+ ports PoE+ AC power) 2
