Product Details:
|
| Model: | S5735-L8P4S-A1 | Ports: | 8 X 10/100/1000Base-T Ports, 4 X GE SFP Ports AC Power Supply PoE+ |
|---|---|---|---|
| Flash Memory: | 512 MB | Power Supply Mode: | AC Built-in |
| Input Voltage Range [V: | 0 | Net Weight: | 2.25 Kg |
| Condition: | Brand New Sealed | Warranty: | 1 Year |
| Lead Time: | 2-4 Days | Payment: | T/T, Western Union, Paypal |
| Shipping: | DHL, Fedex, UPS |

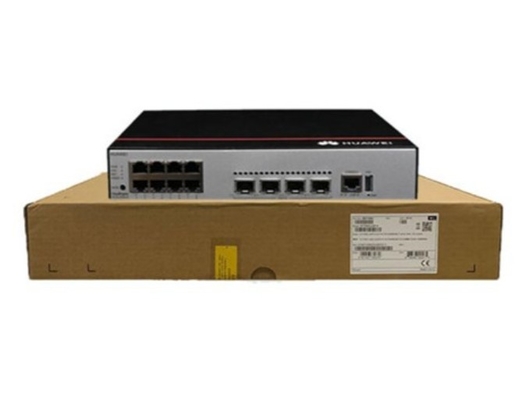

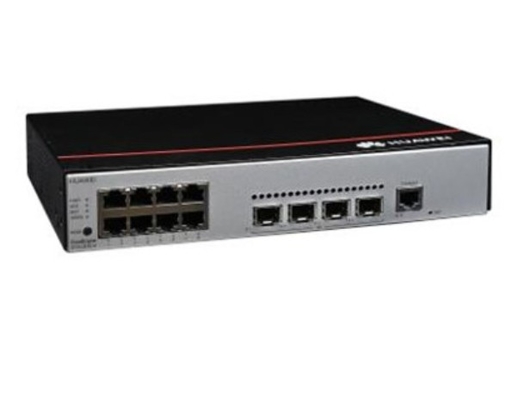

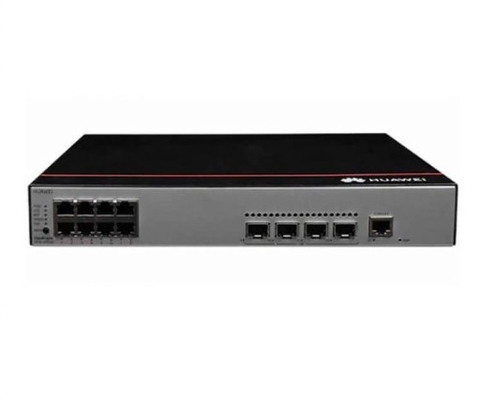

S5735-L8P4S-A1, Huawei S5700 Series Switches
FutureMatrix S5735-L series switches are ideal for scenarios such as enterprise campus network access and gigabit to the desktop. Built on next-generation, high-performance hardware and the Huawei Versatile Routing Platform (VRP), FutureMatrix S5735-L switches stand out with compelling features such as intelligent stack (iStack), flexible Ethernet networking, and diversified security control. They support multiple Layer 3 routing protocols and provide high performance and service processing capabilities.
| S5735-L8P4S-A1 Specification | |
| Model | S5735-L8P4S-A1 |
| Chassis height [U] | 1 U |
| Weight without packaging [kg(lb)] | 2.25 kg (4.96 lb) |
| Weight with packaging [kg(lb)] | 3.17 kg (6.99 lb) |
| Typical power consumption [W] | 28.4 W |
| Typical heat dissipation [BTU/hour] | 96.9 BTU/hour |
| MTBF [year] | 66.56 year |
| MTTR [hour] | 2 hour |
| Availability | >0.99999 |
| Noise at normal temperature (acoustic power) [dB(A)] | 42.2 dB(A) |
| Noise at normal temperature (acoustic pressure) [dB(A)] | 30.5 dB(A) |
| Number of card slots | 0 |
| Number of power slots | 0 |
| Number of fans modules | 1 |
| Redundant power supply | Not supported |
| Power supply mode | AC built-in |
| Rated input voltage [V] | 100 V AC to 240 V AC, 50/60 Hz |
| Input voltage range [V] | 90 V AC to 290 V AC, 45 Hz to 65 Hz |
| Maximum input current [A] | 3:00 AM |
| Memory | 512 MB |
| Flash memory | 512 MB |
| Console port | RJ45 |
| Eth Management port | Not supported |
| USB | Not supported |
| RTC | Not supported |
| RPS input | Not supported |
| PoE | Supported |
