Product Details:
|
| Product Model: | S5735-L24T4S-A | Forwarding Performance: | 42 Mpps |
|---|---|---|---|
| Switching Capacity2: | 56 Gbit/s/336 Gbit/s | Fixed Ports: | 24 X 10/100/1000Base-T Ports, 4 X GE SFP Ports |
| PoE+: | Not Supported | IP Routing: | Static Route, RIP, RIPng, OSPF, OSPFv3 |

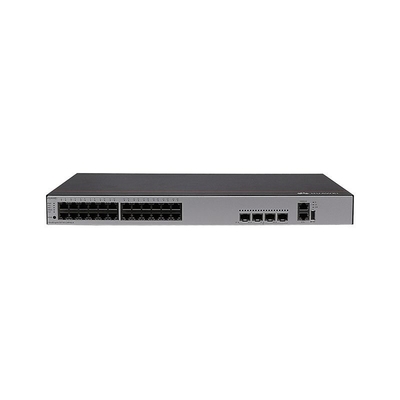

S5735-L24T4S-A is the Huawei S5735-L switch with 24 x 10/100/1000Base-T ports, 4 x GE SFP ports. Huawei CloudEngine S5735-L is a series of simplified gigabit access switches that provide 12–48 flexible all-GE downlink ports and four fixed GE or 10 GE uplink ports. They are designed for enterprise campus network access and gigabit to the desktop. Built on next-generation, high-performance hardware and powered by Huawei’s Versatile Routing Platform (VRP), CloudEngine S5735-L switches feature flexible Ethernet networking, diversified security control, and support for multiple Layer 3 routing protocols — providing higher performance and more powerful service processing capabilities for networks.
Table 1 shows the quick spec.
| Product Model | S5735-L24T4S-A |
| Forwarding Performance | 42 Mpps |
| Switching Capacity2 | 56 Gbit/s/336 Gbit/s |
| Fixed Ports | 24 x 10/100/1000Base-T ports, 4 x GE SFP ports |
| PoE+ | Not supported |
S5735-L24T4S-A Specification |
|
| Forwarding Performance | 42 Mpps |
| Switching Capacity2 | 56 Gbit/s/336 Gbit/s |
| Fixed Ports | 24 x 10/100/1000Base-T ports, 4 x GE SFP ports |
| PoE+ | Not supported |
| MAC Features | MAC address auto-learning and aging Static, dynamic, and blackhole MAC address entries Packet filtering based on source MAC addresses Interface-based MAC address learning limiting |
| VLAN Features | 4094 VLANs Guest VLAN, Voice VLAN GVRP MUX VLAN VLAN assignment based on MAC addresses, protocols, IP subnets, policies, and ports 1:1 and N:1 VLAN mapping |
| IP Routing | Static route, RIP, RIPng, OSPF, OSPFv3 |
| Super Virtual Fabric (SVF) | Plug-and-play SVF clients Automatic software package and patch loading to SVF clients One-click and automatic delivery of service configurations Independent SVF client operations |
| Interoperability | VBST (compatible with PVST/PVST+/RPVST) LNP (similar to DTP) VCMP (similar to VTP) |
