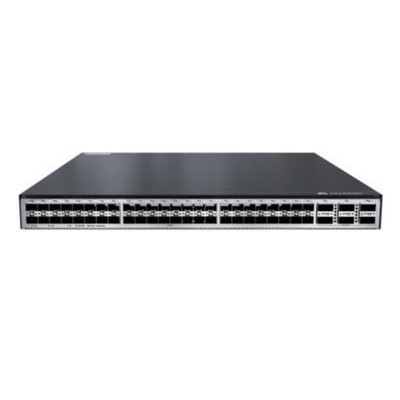

Product Details:
|
| Part Number:: | S6730-H48X6C | Fixed Ports: | 48 X 10 Gig SFP+, 6 X 40/100 Gig QSFP28 |
|---|---|---|---|
| Dimensions (W X D X H): | 442 Mm X 420 Mm X 43.6 Mm | Input Current: | AC 600W：Max 8A DC 1000W：Max 30A |
| Maximum Power Consumption: | 274W | Minimum Power Consumption: | 97W |
| High Light: | H48X6C V2,Huawei CloudEngine Ethernet Switch,S6730 Huawei Network Switches |
||
CloudEngine S6730-H delivers 10 GE connectivity for enterprise campuses, carriers, higher education institutions, and governments. Integrating native WLAN AC capabilities to support up to 1024 WLAN APs, CloudEngine S6730-H enables you to converge your wired and wireless networks for simplified operations. It also offers free mobility to deliver consistent user experience and VXLAN-based virtualization to create a multi-purpose network. With built-in security probes, CloudEngine S6730-H supports abnormal traffic detection, Encrypted Communications Analytics (ECA), and network-wide threat deception.
| S6730-H48X6C Specification | |
| Fixed ports | 48 x 10 Gig SFP+, 6 x 40/100 Gig QSFP28 |
| Dimensions (W x D x H) | 442 mm x 420 mm x 43.6 mm |
| Input voltage | • AC Power |
| - Rated AC voltage: 100V to 240V AC; 50/60 Hz | |
| - Max. AC voltage: 90V to 290V AC; 45–65 Hz | |
| • DC Power | |
| - Rated DC voltage: –48V～–60V | |
| - Max. DC voltage:-38.4V DC～-72V DC | |
| Input current | AC 600W:Max 8A |
| DC 1000W:Max 30A | |
| Maximum power consumption | 274W |
| Minimum power consumption | 97W |
| Operating temperature | • 0–1800 m altitude: -5°C to 45°C |
| • 1800–5000 m altitude: The operating temperature reduces by 1°C every time the altitude increases by 220 m. | |
| Storage temperature | -40-70℃ |
| Operating altitude | 5000 m |
| Noise (sound pressure at normal temperature) | 65dB(A) |
| Surge protection specification | AC power interface: differential mode: ±6kV: common mode: ±6kV |
| DC power interface: differential mode: ±2kV: common mode: ±4kV | |
| Power supply type | 600W AC Power |
| 1000W DC Power | |
| Relative humidity | 5% to 95% (non-condensing) |
| Fans | 4, Fan modules are pluggable |
| Heat dissipation | Heat dissipation with fan, intelligent fan speed adjustment |
| MAC | Up to 384K MAC address entries |
| IEEE 802.1d standards compliance | |
| MAC address learning and aging | |
| Static, dynamic, and blackhole MAC address entries | |
| Packet filtering based on source MAC addresses | |
| VLAN | 4K VLANs |
| Guest VLANs and voice VLANs | |
| GVRP | |
| MUX VLAN | |
| VLAN based on MAC addresses, protocols, IP subnets, policies, and ports | |
| VLAN mapping | |
| ARP | Static ARP |
| Dynamic ARP | |
| IP routing | Static routes, RIP v1/2, RIPng, OSPF, OSPFv3, IS-IS, IS-ISv6, BGP, BGP4+, ECMP, routing policy |
| Up to 256K FIBv4 entries | |
| Up to 80K FIBv6 entries | |
| Interoperability | VLAN-Based Spanning Tree (VBST), working with PVST, PVST+, and RPVST |
| Link-type Negotiation Protocol (LNP), similar to DTP | |
| VLAN Central Management Protocol (VCMP), similar to VTP | |
| Wireless service | AP access control, AP domain management, and AP configuration template management |
| Radio management, unified static configuration, and dynamic centralized management | |
| WLAN basic services, QoS, security, and user management | |
| CAPWAP, tag/terminal location, and spectrum analysis | |
| Ethernet loop protection | RRPP ring topology and RRPP multi-instance |
| Smart Link tree topology and Smart Link multi-instance, providing millisecond-level protection | |
| switchover | |
| SEP | |
| ERPS (G.8032) | |
| BFD for OSPF, BFD for IS-IS, BFD for VRRP, and BFD for PIM | |
| STP (IEEE 802.1d), RSTP (IEEE 802.1w), and MSTP (IEEE 802.1s) | |
| BPDU protection, root protection, and loop protection | |
| MPLS | MPLS L3VPN |
| MPLS L2VPN (VPWS/VPLS) | |
| MPLS-TE | |
| MPLS QoS | |
| IPv6 features | Neighbor Discover (ND) |
| PMTU | |
| IPv6 Ping, IPv6 Tracert, IPv6 Telnet | |
| ACLs based on source IPv6 addresses, destination IPv6 addresses, Layer 4 ports, or protocol types | |
| Multicast Listener Discovery snooping (MLDv1/v2) | |
| IPv6 addresses configured for sub-interfaces, VRRP6, DHCPv6, and L3VPN | |
| Multicast | IGMP v1/v2/v3 snooping and IGMP fast leave |
| Multicast forwarding in a VLAN and multicast replication between VLANs | |
| Multicast load balancing among member ports of a trunk | |
| Controllable multicast | |
| Port-based multicast traffic statistics | |
| IGMP v1/v2/v3, PIM-SM, PIM-DM, and PIM-SSM | |
| MSDP | |
| Multicast VPN | |
| QoS/ACL | Rate limiting in the inbound and outbound directions of a port |
| Packet redirection | |
| Port-based traffic policing and two-rate three-color CAR | |
| Eight queues on each port | |
| DRR, SP, and DRR+SP queue scheduling algorithms | |
| WRED | |
| Re-marking of the 802.1p and DSCP fields of packets | |
| Packet filtering at Layer 2 to Layer 4, filtering out invalid frames based on the source MAC address, | |
| destination MAC address, source IP address, destination IP address, TCP/UDP source/destination | |
| port number, protocol type, and VLAN ID | |
| Queue-based rate limiting and shaping on ports | |
| Security | Hierarchical user management and protection |
| DoS attack defense, ARP attack defense, and ICMP attack defense | |
| Binding of the IP address, MAC address, port number, and VLAN ID | |
| Port isolation, port security, and sticky MAC | |
| MAC Forced Forwarding (MFF) | |
| Blackhole MAC address entries | |
| Limit on the number of learned MAC addresses | |
| IEEE 802.1X authentication and limit on the number of users on a port | |
| AAA authentication, RADIUS authentication, and HWTACACS authentication | |
| NAC | |
| SSH V2.0 | |
| HTTPS | |
| CPU protection | |
| Blacklist and whitelist | |
| Attack source tracing and punishment for IPv6 packets such as ND, DHCPv6, and MLD packets | |
| IPSec for management packet encryption | |
| ECA | |
| Deception | |
| Reliability | LACP |
| E-Trunk | |
| Ethernet OAM (IEEE 802.3ah and IEEE 802.1ag) | |
| ITU-Y.1731 | |
| DLDP | |
| LLDP | |
| BFD for BGP, BFD for IS-IS, BFD for OSPF, BFD for static routes | |
| VXLAN | VXLAN functions, VXLAN L2 and L3 gateways, BGP EVPN |
| VXLAN configuration using NETCONF/YANG | |
| SVF | Acting as the parent node to vertically virtualize downlink switches and APs as one device for |
| management | |
| Two-layer client architecture | |
| Can be independently configured. Services not supported by templates can be configured on | |
| the parent node. | |
| Third-party devices allowed between SVF parent and clients | |
| iPCA | Marking service packets to obtain the packet loss ratio and number of lost packets in real time |
| Measurement of the number of lost packets and packet loss ratio on networks and devices | |
| Management and maintenance | Cloud-based management |
| Virtual cable test | |
| SNMP v1/v2c/v3 | |
| RMON | |
| Web-based NMS | |
| System logs and alarms of different severities | |
| GVRP | |
| MUX VLAN | |
| NetStream | |
| Telemetry | |
