Product Details:
|
| Brand Name: | Huawei | Model Number: | S5731-S32ST4X-A |
|---|---|---|---|
| Condition: | Original New | Power Supply: | AC Power Supply |
| Switching Capacity: | 256 Gbps | Dimension: | 1.72 In. X 17.40 In. X 8.94 In. |
| Weight: | 3.13 Kg | Warranty: | 3 Years |
| Payment: | TT / Western Union / Paypal | ||
| High Light: | 24 Gigabit Huawei S5700 Series Switches,SFP Huawei S5700 Series Switches,T Ethernet Port Huawei Network Switches |
||

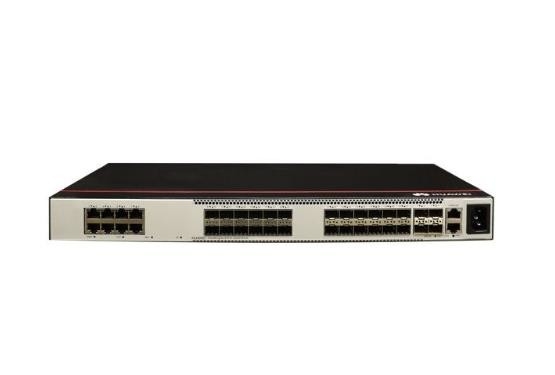

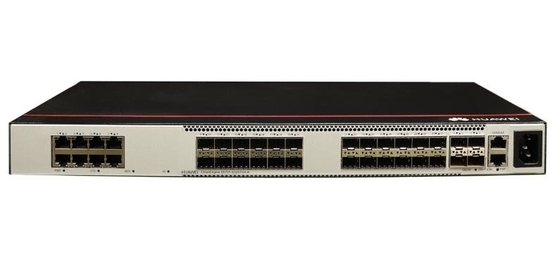

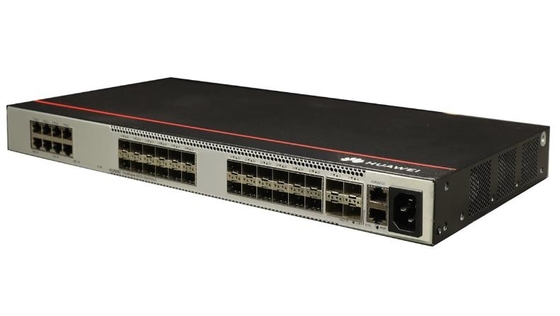

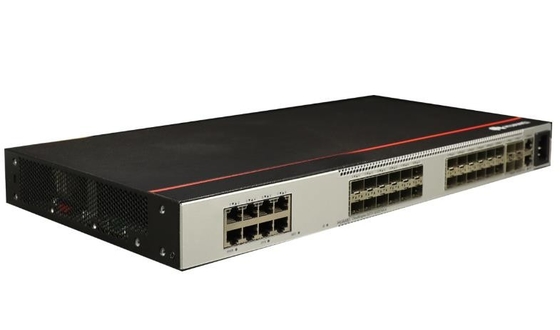

S5731-S32ST4X-A Overview
The Cloud Engine S5731-S series switches were developed based on next-generation high-performing hardware and the Huawei Versatile Routing Platform (VRP). The Cloud Engine S5731-S supports simplified operations and maintenance (O&M), intelligent stack (iStack), and flexible Ethernet networking. It also provides enhanced Layer 3 features and mature IPv6 features. The Cloud Engine S5731-S can be used in various scenarios. For example, it can be used as an access or aggregation switch on a campus network or as an access switch for Metropolitan Area Network.
| Item | S5731-S32ST4X-A |
| Memory | 2 GB |
| Flash memory | The physical space is 1 GB. You can run the display version command to view the actual available space. |
| Console port | RJ45 |
| Eth Management port | RJ45 |
| USB | Not supported |
| RTC | Supported |
| RPS input | Not supported |
| Service port surge protection [kV] | Common mode: ±7 kV |
| Power supply surge protection [kV] | ±6 kV in differential mode; ±6 kV in common mode |
| Types of fans | Built-in |
| Heat dissipation mode | Heat dissipation with fan, intelligent fan speed adjustment |
| Airflow direction | Air intake from the front and left and air exhaust from the right |
| PoE | Not supported |
| Certification | EMC certification |
| Safety certification | |
| Manufacturing certification | |
| Dimensions without packaging (H x W x D) [mm(in.)] | Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 220.0 mm (1.72 in. x 17.40 in. x 8.66 in.) |
| Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm x 442.0 mm x 227.0 mm (1.72 in. x 17.40 in. x 8.94 in.) | |
| Dimensions with packaging (H x W x D) [mm(in.)] | 90 mm x 550 mm x 355 mm (3.54 in. x 21.65 in. x 13.98 in.) |
| Chassis height [U] | 1 U |
| Weight without packaging [kg(lb)] | 3.13 kg (6.90 lb) |
| Weight with packaging [kg(lb)] | 4.49 kg (9.90 lb) |
| Typical power consumption [W] | 66.85 W |
| Typical heat dissipation [BTU/hour] | 228.10 BTU/hour |
| Maximum power consumption [W] | 93.92 W |
| Maximum heat dissipation [BTU/hour] | 320.46 BTU/hour |
| MTBF [year] | 32.56 year |
| MTtr [hour] | 2 hour |
| Availability | >0.99999 |
| Noise at normal temperature (acoustic power) [dB(A)] | 41.42 dB(A) |
| Noise at normal temperature (acoustic pressure) [dB(A)] | 27.74 dB(A) |
| Number of card slots | 0 |
| Number of power slots | 0 |
| Number of fans modules | 2 |
| Redundant power supply | Not supported |
| Long-term operating temperature [°C(°F)] | -5°C to +45°C (23°F to 113°F) at an altitude of 0-1800 m (0-5906 ft.) |
| Short-term operating temperature [°C(°F)] | -5°C to +50°C (23°F to 122°F) at an altitude of 0-1800 m (0-5906 ft.) |
| Restriction on the operating temperature variation rate [°C(°F)] | When the altitude is 1800-5000 m (5906-16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.). |
| The device can work for a short period of time when the operating temperature is beyond the normal range, but the following conditions must be met: | |
| The operating temperature can exceed 45°C (113°F) for a maximum of 96 consecutive hours in a year. | |
| The total time when the operating temperature exceeds 45°C (113°F) in a year is less than or equal to 360 hours. | |
| The number of times the operating temperature exceeds 45°C (113°F) is less than or equal to 15 in one year. | |
| If any of the preceding conditions is not met, the device may be damaged or an unknown error may occur. | |
| Devices cannot start when the temperature is lower than 0°C (32°F). The maximum transmission distance of an optical module used for short-term operation cannot exceed 10 km. | |
| Storage temperature [°C(°F)] | -40°C to +70°C (-40°F to +158°F) |
| Long-term operating relative humidity [RH] | 5% to 95%, noncondensing |
| Long-term operating altitude [m(ft.)] | 0-5000 m (0-16404 ft.) |
| Storage altitude [m(ft.)] | 0-5000 m (0-16404 ft.) |
| Power supply mode | AC built-in |
| Rated input voltage [V] | AC input: 100 V AC to 240 V AC, 50/60 Hz |
| High-voltage DC input: 240 V DC | |
| Input voltage range [V] | AC input: 90 V AC to 264 V AC, 47 Hz to 63 Hz |
| High-voltage DC input: 190 V DC to 290 V DC | |
| Maximum input current [A] | 3 A |
