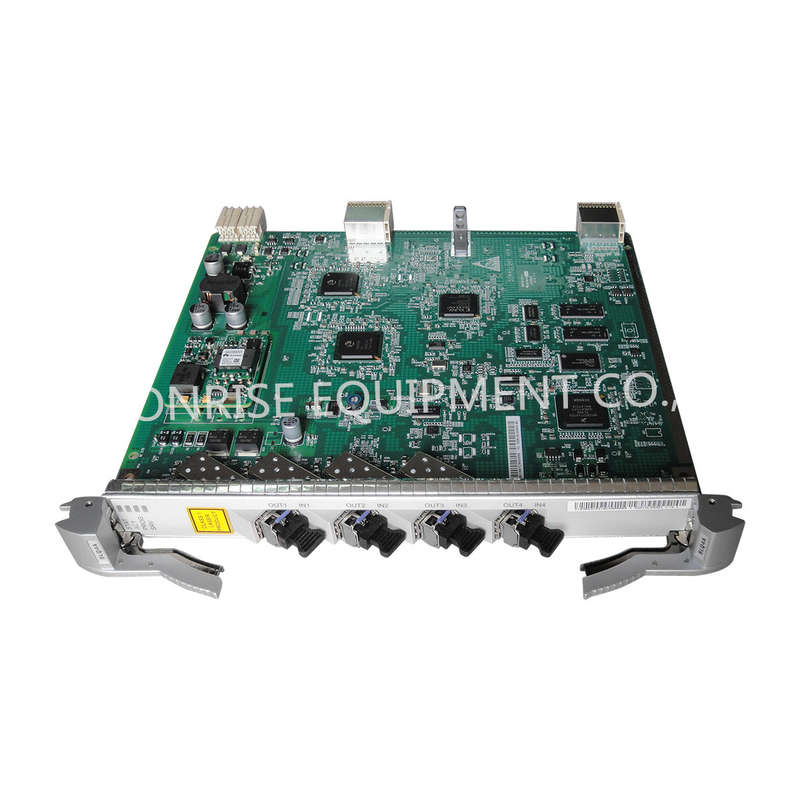

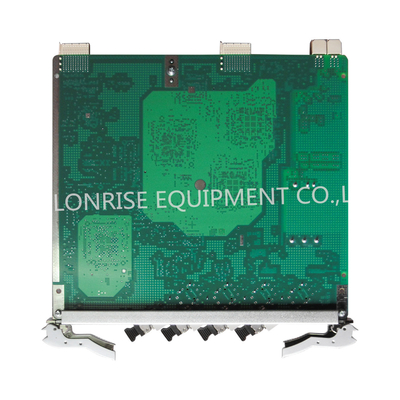

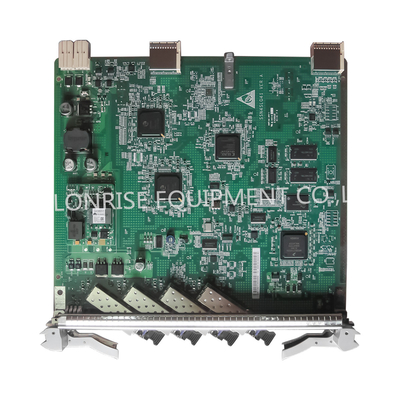

| Product appearance |
|
| Dimensions (H x W x D) |
221 mm x 442 mm x 224 mm |
| Number of slots for service boards |
- DC-powered chassis: 15
- AC-powered chassis: 12
|
| Optical switching capability |
1 to 9-degree reconfigurable optical add/drop multiplexer (ROADM) |
| Product capacity |
OTN |
700 Gbit/s ODUk (k = 0, 1, 2, 2e, flex or 4) |
| Packet service |
700 Gbit/s |
| TDM |
Higher order: 280 Gbit/s; lower order: 20 Gbit/s |
| Maximum number of wavelengths |
DWDM |
80 wavelengths |
| CWDM |
8 wavelengths |
| Wavelength range |
DWDM: 1529.16 nm to 1560.61 nm (C Band, ITU-T G.694.1)
CWDM: 1471 nm to 1611 nm (S+C+L Band, ITU-T G.694.2)
|
| Maximum rate per channel |
100 Gbit/s |
| Service types |
SDH service, PDH service, OTN service, Ethernet service, CPRI service, OBSAI service, SAN service, video service, and others |
| Line rate |
2.5 Gbit/s, 10 Gbit/s, 100 Gbit/s |
| Pluggable optical/electrical module |
- Optical module: SFP, XFP, SFP+, TXFP, CFP, CFP2
- Electrical module: GE SFP, FE SFP, STM-1 SFP
|
| Topology |
Point-to-point, chain, star, ring, ring-with-chain, intersecting rings, and tangent rings |
| Applications |
Pure packet networks, pure OTN networks, pure TDM networks, MS-OTN networks (OTN+Packet+TDM), hybrid networks (Packet+TDM), OTN+Packet networks, and OTN+TDM networks |
| Redundancy and Protection |
Network level protection (OTN) |
Client 1+1 protection, intra-board 1+1 protection, ODUk SNCP, and optical line protection, tributary SNCP, LPT |
| Network level protection (packet) |
MPLS-TP 1:1 tunnel APS, MPLS-TP 1:1 PW APS, MC-LAG, LPT, LAG, ERPS, MRPS |
| Network level protection (TDM) |
- SDH protection: SNCP, linear MSP, and ring MSP
- EoS protection: LAG, DLAG, LCAS, LPT, and STP/RSTP
|
| Equipment level protection |
- Control, cross-connect, and clock integrated board redundancy
-
Power supply redundancy
- Fan redundancy
|
| Optical power management |
ALS, AGC |
| Maintenance |
MPLS-TP OAM |
Supports CC, RDI, AIS, LB, LT, one-way LM, two-way DM, LCK, TST, and CSF. |
| ETH OAM (packet) |
- Ethernet service OAM: supports continuity check (CC), loopback (LB), linktrace (LT), alarm indication signal (AIS), one-way loss measurement (LM), two-way delay measurement (DM), and remote defect indication (RDI).
- Ethernet port OAM: supports OAM auto-discovery, link performance monitoring, remote loopback, and self-loop detection.
|
| ETH OAM (TDM) |
- Ethernet service OAM: supports CC, LB, LT, and OAM_Ping.
- Ethernet port OAM: supports OAM auto-discovery, link performance monitoring, remote loopback, and self-loop detection.
|
| Port mirroring (TDM) |
Supports port mirroring that enables service analysis and fault diagnosis without affecting services.
- Supports mirroring at local ports.
- Supports mirroring in the ingress direction of UNI and NNI ports.
|
| Port mirroring (packet) |
Supports port mirroring that enables service analysis and fault diagnosis without affecting services.
- Supports mirroring at local ports.
- Supports mirroring in the ingress direction of UNI ports.
|
| Port traffic mirroring (packet) |
Supports port traffic mirroring that enables service analysis and fault diagnosis without affecting services.
- Supports mirroring at local ports.
- Supports mirroring in the ingress direction.
|
| Synchronization |
OTN |
- OTN clock
- Synchronous Ethernet clock
- IEEE 1588v2
|
| Packet |
- Synchronous Ethernet clock
- IEEE 1588v2 clock
|
| TDM |
- SDH clock
- Synchronous Ethernet clock
|
| DCN |
Outband DCN |
Supports 225 outband DCN channels, which can be electric supervisory channels (ESCs) or optical supervisory channels (OSCs). |
| Inband DCN |
Supports 64 inband DCN channels. Channel bandwidth are configurable. |
| TP-Assist |
- Service configuration: supports end-to-end service configuration and automatic deployment of alarm management with service deployment.
- Service commissioning: supports one-click service connectivity tests, meter-free automatic tests, and one-click service performance tests.
- Routine maintenance: supports performance measurement and monitoring, and E-Line and E-LAN service path visualization.
- Fault diagnosis: supports intelligent fault diagnosis, IP Ping initiation and response, and service loopback detection.
|
| Standard working voltage |
- -48 V/-60 V DC power input
- 110 V/220 V AC power input
|
| Mounting option |
- Mounted in a 19-inch cabinet
- Mounted in an ETSI cabinet
NOTE:
OptiX OSN 1800 can be installed horizontally or vertically in a 19-inch or an ETSI cabinet.
|
| Running environment |
Chassis temperature |
- Long-term running: -5°C to +50°C
- Short-terma running: -5°C to +55°C
|
| Chassis relative humidity |
- Long-term running: 5% to 85%
- Short-term running: 5% to 95%
|
| ETSI conformity |
ETSI Class 3.1
NOTE:
ETSI standards define temperature and humidity environments, where equipment is located.
|
| Reliability Specifications |
System availability |
0.9999965, which indicates that the annual operation cessation time of the equipment is not more than two minutes |
| System mean annual repair rate |
Less than 1.5% |
| MTTR (system mean repair time) |
4 hours |
| MTBF (system mean fault interval) |
129.63 years |
