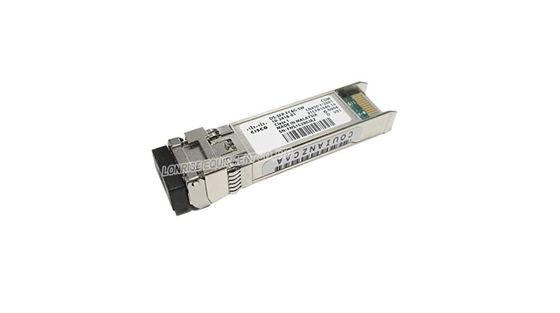

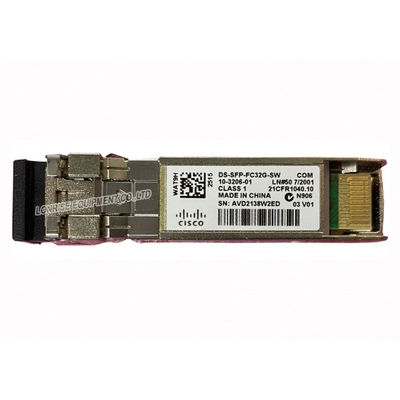

New Original Cisco DS-SFP-FC32G-SW SFP Transceiver Module 32Gb Fibre Channel SW SFP+, LC

The Cisco 32-Gbps Fibre Channel SFP+ Transceivers provide Fibre Channel connectivity for 8/16/32-Gbps ports on the MDS 9000 Family platform. Two types are available: the Cisco Fibre Channel Shortwave SFP+ (part number DS-SFP-FC32G-SW) and the Cisco Fibre Channel Longwave SFP+ (part number DS-SFP-FC32G-LW). Each offers 8/16/32-Gbps autosensing Fibre Channel connectivity.

• Part Number: DS-SFP-FC32G-SW
• Description: Cisco 32 Gbps Fibre Channel SW SFP+, LC
• Connector: Dual LC connector
• Cable Type: MMF
• Wavelength: 850nm
• Cable Distance:
  • 65 ft (20m) (OM2) @ 28.05 GBd
  • 230 ft (70m) (OM3) @ 28.05 GBd
  • 328 ft (100m) (OM4) @ 28.05 GBd
  • 49 ft (15m) (OM1) @ 14.025 GBd
  • 115 ft (35m) (OM2) @ 14.025 GBd
  • 328 ft (100m) (OM3) @ 14.025 GBd
  • 410 ft (125m) (OM4) @ 14.025 GBd
  • 69 ft (21m) (OM1) @ 8.5 GBd
  • 164 ft (50m) (OM2) @ 8.5 GBd
  • 492 ft (150m) (OM3) @ 8.5 GBd
  • 623 ft (190m) (OM4) @ 8.5 GBd
• Average Transmit Power (dBm)
  • Maximum: 2.0
  • Minimum: -6.2
• Average Receive Power (dBm)
  • Maximum: 2.0
  • Minimum: -8.2
• Fiber Loss Budget (dBm):
  • 1.68 (8 Gbps), 1.63 (16 Gbps), 2.02 (32 Gbps) @ OM2
  • 2.04 (8 Gbps), 1.86 (16 Gbps), 1.86 (32 Gbps) @ OM3
  • 2.04 (8 Gbps), 1.95 (16 Gbps), 1.86 (32 Gbps) @ OM4
  • 2.04 (8 Gbps), 1.95 (16 Gbps), 1.86 (32 Gbps) @ OM5
• Dimensions (H x W x D): 8.5 x 13.55 x 56.5 mm
• Operating Temperature Range: 0°C ~ 40°C
• Storage Temperature Range: -40°C ~ 85°C
