Product Details:
|

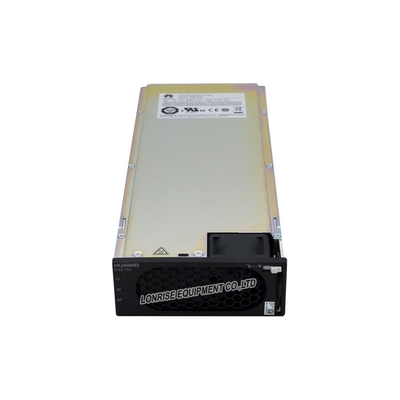

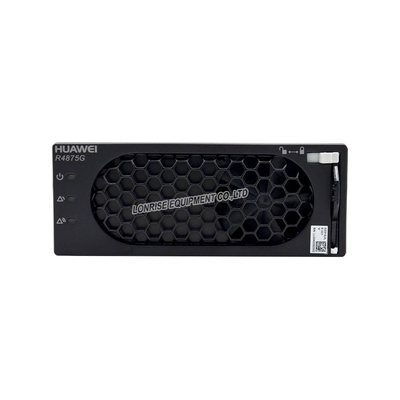

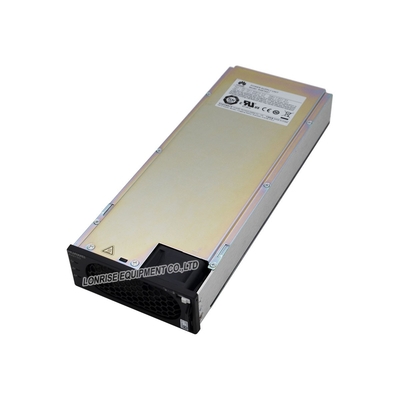

| High Light: | Rectifier Optical Transceiver Module,Huawei R4875G1 Rectifier Module |
||
|---|---|---|---|
| Efficiency | Peak efficiency: 97%>96% (230 V AC, 30%–80% load) |
| Dimensions (H x W x D) | 40.8 mm x 105 mm x 269 mm |
| Weight | ≤ 2.2 kg |
| Cooling mode | Built-in fan (fan speed adjustment) |
| Environment Specifications | |
| Operating temperature | –40°Cto +75°C |
| Storage temperature | –40°Cto +75°C |
| Relative humidity | 5%–95% RH (non-condensing) |
| Altitude | ≤ 5000 m (When the altitude ranges from 2000 m to 5000 m, the operating temperature decreases by 1°Cfor each additional 200 m.) |
| Electrical Specifications | |
| Input | |
| Operating voltage range | 85 V AC–300 V AC |
| Input frequency | 45 Hz–66 HzRated frequency: 50 Hz/60 Hz |
| Rated input current | ≤ 21 A |
| Power factor | ≥ 0.99 (50%–100% load) |
| THD | ≤ 5% (50%–100% load) |
| Output | |
| Output voltage | 42 V DC–58 V DCRated voltage: 53.5 V DC |
| Output power | 4000 W(176 V AC–300 V AC)4000 W–1600 W (176 V AC–85 V AC) |
| Peak efficiency | 97%±0.2% |
