| Place Of Origin: | USA | Model: | A99-12X100GE |
|---|---|---|---|
| Discription: | Ethernet Network Interface Card | Item: | Cisco Router Cards |
| Peoducts: | Cisco Interface Cards | Warranty: | 1 Year |
| Lead Time: | 1-2 Working Days | MOQ: | 1pcs |
| High Light: | A99 12X100GE Ethernet Network Interface Card,ASR 9000 Ethernet Network Interface Card,100 Gigabit Cisco Router Cards |
||

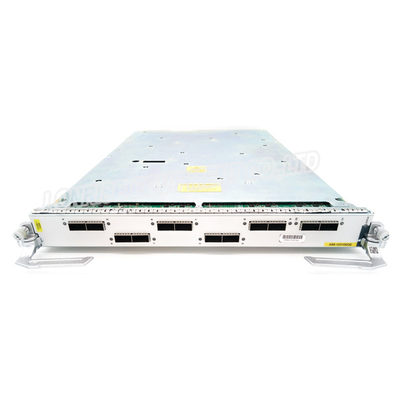

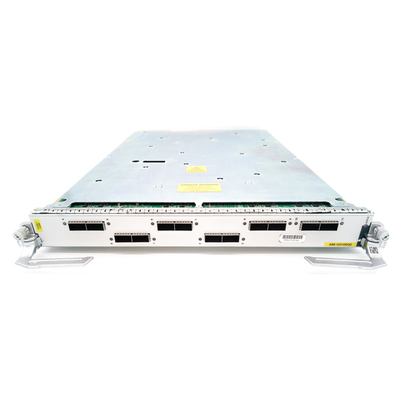

A99-12X100GE Ethernet Network Interface Card ASR 9000 Series 12-Port 100-Gigabit NEW
(Ethernet Network Interface Card cisco router cards cisco interface cards )
Cisco® ASR 9900 12-port 100 Gigabit Ethernet line cards deliver industry-leading high density and line-rate 100 Gigabit Ethernet ports to any slot of a Cisco ASR 9900 Series Aggregation Services Router. These high-capacity line cards provide carrier-class reliability and are designed to remove bandwidth bottlenecks in the network that are caused by a large increase in Video on Demand (VoD), IPTV, point-to-point video, Internet video, and cloud services traffic. A single 100 Gigabit Ethernet (GE) port can now replace large 10 Gigabit Ethernet link aggregation bundles to simplify network operations.
Using a “green design,” these line cards let customers put an unused slice in power-saving mode to reduce power consumption. With these capabilities, the ASR 9900 Series 12-port 100-GE line cards (Figure 1) and routers provide the fundamental infrastructure for scalable Carrier Ethernet and IP/Multiprotocol Label Switching (IP/MPLS) networks, promoting profitable business, residential, and mobile services.
| Description | Specification |
| Chassis compatibility | Compatible with the Cisco ASR 9904, ASR 9906, ASR 9910, ASR 9912, and ASR 9922 chassis |
| Port density | 12 ports of 100 Gigabit Ethernet or 48 10-GE channels per line card |
| Ethernet |
● 100-Gbps IEEE 802.3ba compliant
● 100 Gigabit Ethernet PHY monitoring
● IEEE 802.x flow control
● Full-duplex operation
● Per-port byte and packet counters for policy drops; oversubscription drops; cyclic redundancy check (CRC) error drops; packet sizes; and unicast, multicast, and broadcast packets
|
| Performance |
● 100-Gbps line-rate throughput per port
|
| Reliability and availability | Line card Online Insertion and Removal (OIR) support without system impact |
| Physical dimensions (H x W x D); weight | 12-port 100 Gigabit Ethernet line card: 14.5 x 1.63 x 22.02 in.; 28 lb (estimated) (368.3 mm x 41.4 mm x 559.3 mm; 11.7 kg) |
| Operating temperature | 41 to 104°F (5 to 40°C) |
| Operating humidity (nominal) (relative humidity) | 10 to 85% |
| Storage temperature | –40 to 158ºF (–40 to 70°C) |
| Storage (relative humidity) |
5 to 95% Note: Not to exceed 0.024 kg of water per kg of dry air |
| Operating altitude | –60 to 4000m (up to 2000m conforms to IEC, EN, UL, and CSA 60950 requirements) |
| EMC standards |
Cisco ASR 9000 Series Routers are designed to meet: ● FCC Class A
● ICES 003 Class A
● AS/NZS 3548 Class A
● CISPR 22 (EN55022) Class A
● VCCI Class A
● BSMI Class A
● IEC/EN 61000-3-2: Power Line Harmonics
● IEC/EN 61000-3-3: Voltage Fluctuations and Flicker
|
| Safety |
Cisco ASR 9000 Series Routers are designed to meet: ● UL/CSA/IEC/EN 60950-1
● IEC/EN 60825 Laser Safety
● ACA TS001
● AS/NZS 60950
● FDA: Code of Federal Regulations Laser Safety
|
