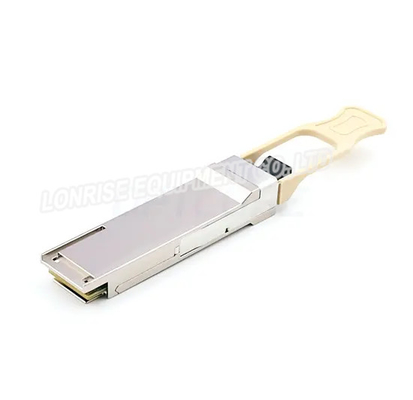

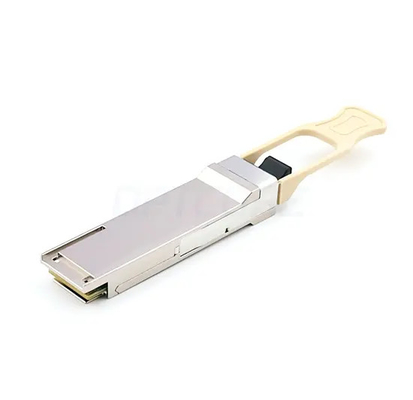

T TB2FNS H00 Optical Transceiver Module NEW Network Module Socket Panel Module Tool

T-TB2FNS-H00 Optical Transceiver Module NEW network module socket panel module tool

(Optical Transceiver Module       sfp fiber transceiver        1000base sx sfp transceiver)

General Description

TThis product can support both 40Gb/s and 100Gb/s bit rates. It is a parallel Quad Small Form-factor Pluggable (QSFP28) Bi-Direction optical module. The module integrates four host electrical data into two optical lanes (by Dual Wavelength VCSEL Bi-Directional Optical Interface, 850nm and 900nm) to allow optical communication over a 2-fiber duplex LC optical multi-mode fiber. Reversely,
on the receiver side, the module de-multiplexes 2 sets of optical input signal and converts them to 4 channels of electrical data.

MSA Compliant Connector

Product Specification

Figure 1. Transceiver Block Diagram

Figure 2. MSA Compliant Connector

Figure 3. Outside View of the QSFP28 Module LC Receptacle

Figure 4. Recommended Power Supply Filter

Figure 5. Mechanical Outline
