TR ZC13L N00 Optical Transceiver Module Wireless Network Module Slave Enhanced Network

TR-ZC13L-N00 Optical Transceiver Module wireless network module slave enhanced network

(Optical Transceiver Module      gigabit ethernet transceiver         1000base t sfp transceiver module )

General Description

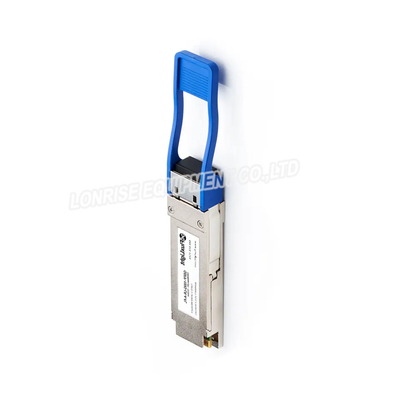

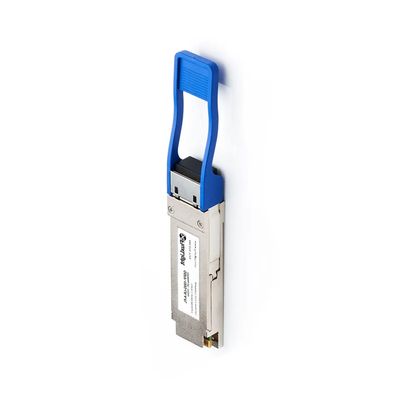

This product is a transceiver module designed for 10km optical communication applications.The module incorporates one channel optical signal, on 1310nm center wavelength, operating at 50Gbaud data rate. The transmitter path incorporates an EML Driver and a cooled EML together. On the receiver path, the input optical signal is coupled to a Pin photodiode detector. A DSP based gearbox is used to convert 4x25Gbps NRZ signals to 1x50Gbaud PAM4 signal. Also a 4-channel retimer and FEC block are integrated in this DSP. The electrical interface is compliant with IEEE 802.3cd and QSFP28 MSA in the transmitting and receiving directions, and  optical interface is compliant to IEEE 802.3cd and 100G Lambda MSA with Duplex LCconnector. The module has a maximum power consumption of 4.5W.

MSA Compliant Connector

Product Specification

                                    Figure 1. Transceiver Block Diagram
