Product Details:
|
| Product Model: | S5735-S24P4X | Forwarding Performance: | 96 Mpps |
|---|---|---|---|
| Switching Capacity: | 128 Gbps/336 Gbps | Fixed Ports: | 24 X 10/100/1000BASE-T Ports, 4 X 10 GE SFP+ Ports |
| PoE+: | Supported | IP Routing: | Static Route, RIPv1/v2, RIPng, OSPF, OSPFv3, ECMP, IS-IS, IS-ISv6, BGP, BGP4+ |
| High Light: | 4*10GE Huawei Network Switches,Huawei Network Switches SFP Ports,S5735-S24P4X Network Ethernet Switch |
||

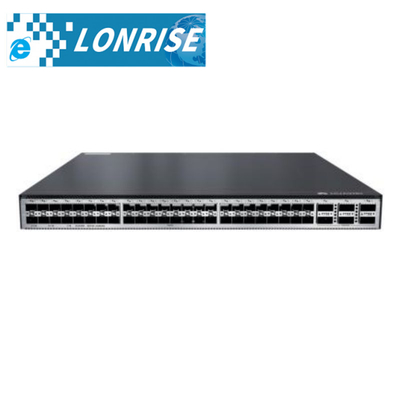

S5735-S24P4X 24*10/100/1000BASE-T ports, 4*10GE SFP+ ports PoE+:
S5735-S24P4X is the Huawei S5735-S switch with 24 x 10/100/1000BASE-T ports, 4 x 10 GE SFP+ ports, and PoE+. Huawei CloudEngine S5735-S is a series of standard gigabit access switches that provide 24–48 flexible all-GE downlink ports and four fixed 10 GE uplink ports. They are designed for enterprise campus network access and aggregation, as well as data center access. Built on next-generation, high-performance hardware and with the Huawei Versatile Routing Platform (VRP), CloudEngine S5735-S switches boast advanced features, such as enhanced Layer 3 functionality, simplified O&M, flexible Ethernet networking, and mature IPv6 capabilities.
S5735-S24P4X Specification |
|
| Forwarding Performance | 96 Mpps |
| Switching Capacity2 | 128 Gbps/336 Gbps |
| Fixed Ports | 24 x 10/100/1000BASE-T ports, 4 x 10 GE SFP+ ports |
| PoE+ | Supported |
| MAC Features | IEEE 802.1d compliance MAC address auto-learning and aging Static, dynamic, and black hole MAC address entries Packet filtering based on source MAC addresses |
| VLAN Features | 4094 VLANs Guest VLAN, Voice VLAN GVRP MUX VLAN VLAN assignment based on MAC addresses, protocols, IP subnets, policies, and ports 1:1 and N:1 VLAN mapping |
| IP Routing | Static route, RIPv1/v2, RIPng, OSPF, OSPFv3, ECMP, IS-IS, IS-ISv6, BGP, BGP4+ |
| Super Virtual Fabric (SVF) | Plug-and-play SVF clients Automatic software package and patch loading to SVF clients One-click and automatic delivery of service configurations Independent SVF client operation |
| Interoperability | VBST (compatible with PVST/PVST+/RPVST) LNP (similar to DTP) VCMP (similar to VTP) |
