Product Details:
|
| Part Number: | Nexus N3K-C3524P-10GX | Ports: | 24 Fixed SFP+ Ports (1 Or 10 Gbps); Expandable To 48 Ports |
|---|---|---|---|
| Downlink Supported Speeds: | 100-Mbps And 1/10-Gbps Speeds | USB: | 2 |
| Typical Operating Power: | 102W | Dimension (H X W X D): | 1.72 X 17.3 X 18.38 In. (4.36 X 43.9 X 46.7 Cm) |
| High Light: | Nexus N3K-C3524P-10GX Network Switches,Layer 2 Ethernet Switches,SFP Cisco Ethernet Switch |
||

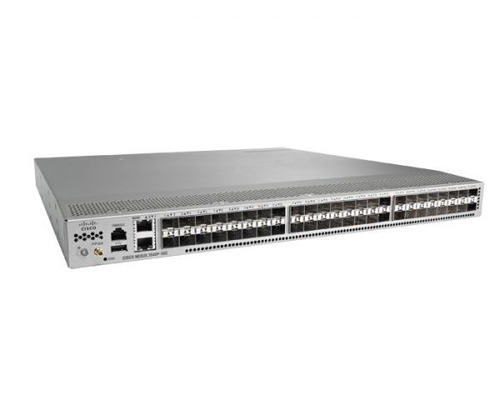

The Cisco N3K-C3524P-10GX further extends the leadership of the Cisco Nexus 3000 Series by including the innovative Cisco® Algorithm Boost (or Algo Boost) technology. Algo Boost technology, built into the switch application-specific integrated circuit (ASIC), allows the Cisco Nexus 3500 platform to achieve exceptional Layer 2 and 3 switching latencies of less than 200 nanoseconds (ns). In addition, Algo Boost offers several innovations in latency, forwarding, and performance visibility capabilities
Table 1 shows the Quick Specs.
| Product Code | N3K-C3524P-10GX |
| Physical |
● 24 fixed SFP+ ports (1 or 10 Gbps); expandable to 48 ports
● Dual redundant hot-swappable power supplies
● Four individual redundant hot-swappable fans
● One 1-PPS timing port, with the RF1.0/2.3 QuickConnect connector type*
● One 10/100/1000-Mbps management port
● One RS-232 serial console port
● Two USB ports
● Locator LED
● Locator LED button
|
| Performance |
● 480-Gbps switching capacity
● Forwarding rate of 360 mpps
● Line-rate traffic throughput (both Layer 2 and 3) on all ports
● Configurable MTUs of up to 9216 bytes (jumbo frames)
|
| Typical operating power | 102W |
| Maximum power | 193W |
| Typical heat dissipation | 348 BTUs per hr |
| Maximum heat dissipation | 658 BTUs per hr |
| Weight | 17.4 lb (7.9 kg) |
| Dimension (H x W x D) | 1.72 x 17.3 x 18.38 in. (4.36 x 43.9 x 46.7 cm) |
Table 2 shows the recommended configuration.
| Model | Description |
| SFP-H10GB-CU1M | 10GBASE-CU SFP+ Cable 1 Meter |
| SFP-H10GB-ACU7M | Active Twinax cable assembly, 7m |
| GLC-SX-MMD | 1000BASE-SX SFP transceiver module, MMF, 850nm, DOM |
| GLC-LH-SMD | 1000BASE-LX/LH SFP transceiver module, MMF/SMF, 1310nm, DOM |
| SFP-10G-LR | 10GBASE-LR SFP Module |
| SFP-10G-SR | 10GBASE-SR SFP Module |
Note: These components should be purchased seperately.
