| Product Code |
S5731-H48P4XC |
| Fixed port |
48 x 10/100/1000Base-T (PoE+) ports, 4 x 10GE SFP+ ports |
| Dimensions (H x W x D) |
43.6 mm x 442 mm x 420mm |
| Chassis height |
1 U |
| Extended slot |
One extended slot, support 2 x 40GE, 8 x 10GE Base-T, 2 x 25GE SFP28 or 8 x 10GE SFP+ cards |
| Power supply type |
1000 W PoE AC (pluggable) |
| Rated voltage range |
AC input (1000 W AC PoE): 100 V AC to 240 V AC, 50/60 Hz |
|
Maximum voltage range
|
• AC input (1000 W AC PoE): 90 V AC to 290 V AC, 45 Hz to 65 Hz
• High-voltage DC input (1000 W AC PoE): 190 V DC to 290 V DC (meeting 240 V high-voltage DC certification)
|
Product Details

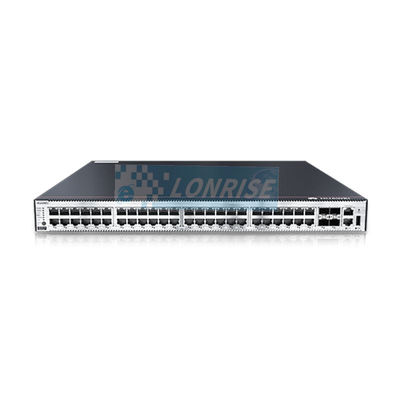

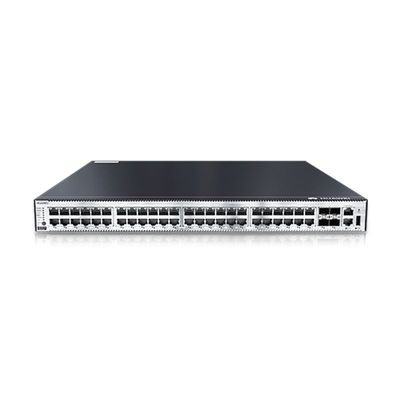

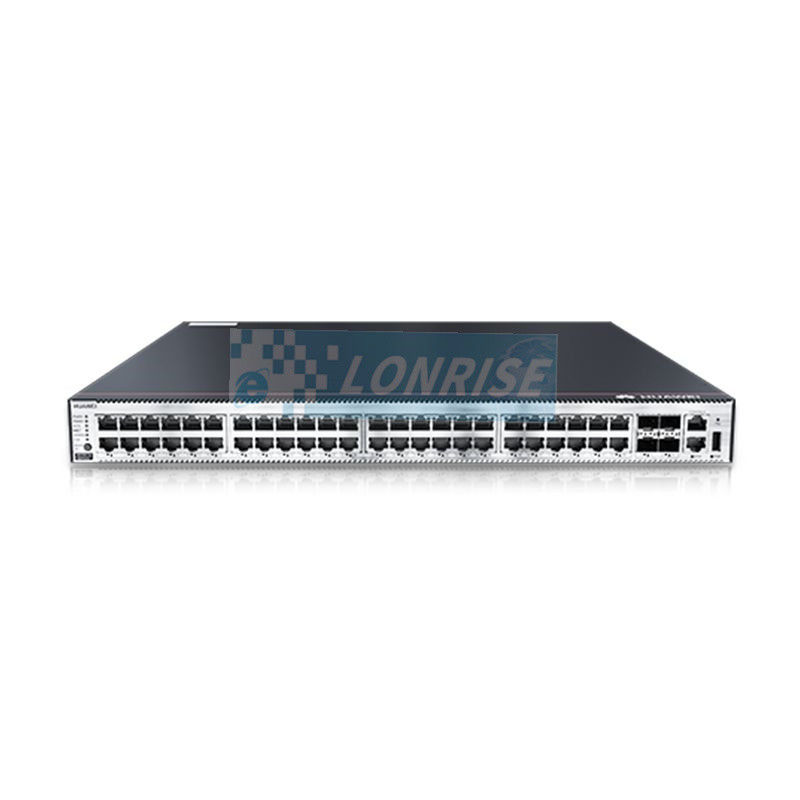

The Huawei S5731-H series switches provides these features and highlights:
* Enabling Networks to Be More Agile for Services
* Delivering Abundant Services More Agilely
* Providing Fine Granular Network Management More Agilely
* Comprehensive VPN Technologies
* Enhanced QoS Control Mechanism
* Flexible Ethernet Networking
* Various Security Control Methods
* Mature IPv6 Features
* Intelligent Stack (iStack)
* VXLAN Features
* PoE Power Supply
* Intelligent O&M
* Intelligent Upgrade
* Big Data Security Collaboration
* Open Programmability System (OPS)
The Modules
Table 2 shows the recommended products.
| Model |
Description |
| eSFP-GE-SX-MM850 |
Optical Transceiver,eSFP,GE,Multi-mode Module(850nm,0.55km,LC) |
| S-SFP-GE-LH40-SM1550 |
Optical Transceiver,eSFP,GE,Single-mode Module(1550nm,40km,LC) |
| SFP-GE-LX-SM1310 |
Optical Transceiver,eSFP,GE,Single-mode Module(1310nm,10km,LC) |
| S-SFP-GE-LH40-SM1310 |
Optical Transceiver,eSFP,GE,Single-mode Module(1310nm,40km,LC) |
| S-SFP-GE-LH80-SM1550 |
Optical Transceiver,eSFP,GE,Single-mode Module(1550nm,80km,LC) |
| SFP-GE-ZBXU1 |
Optical Transceiver,eSFP,GE,BiDi Single-mode Module(1490nm(Tx)/1570nm(Rx),80km,LC) |
| SFP-GE-LX-SM1490-BIDI |
Optical Transceiver,eSFP,GE,BIDI Single-mode Module(TX1490/RX1310,10km,LC) |
| SFP-GE-ZBXD1 |
Optical Transceiver,eSFP,GE,BIDI Single-mode Module(1570nm(Tx)/1490nm(Rx),80km,LC) |
| LE2MGSC40DE0 |
Optical Transceiver,eSFP,GE,BIDI Single-mode Module(TX1310/RX1490,40km,LC) |
| SFP-GE-LX-SM1310-BIDI |
Optical Transceiver,eSFP,GE,BIDI Single-mode Module(TX1310/RX1490,10km,LC) |
| LE2MGSC40ED0 |
Optical Transceiver,eSFP,GE,BIDI Single-mode Module(TX1490/RX1310,40km,LC) |
| SFP-GE-BXU1-SC |
1000Base,BIDI Optical Transceiver,SFP,GE,Single-mode Module(TX1490nm/RX1310nm,10km,SC) |
| SFP-10G-iLR |
Optical Transceiver,SFP+,10G,Single-mode Module(1310nm,1.4km,LC) |
| SFP-10G-USR |
10GBase-USR Optical Transceiver,SFP+,10G,Multi-mode Module(850nm,0.1km,LC) |
| SFP-1000BaseT |
Electrical Transceiver,SFP,GE,Electrical Interface Module(100m,RJ45) |
| OMXD30000 |
Optical Transceiver,SFP+,10G,Multi-mode Module(850nm,0.3km,LC) |
| OSX010000 |
Optical Transceiver,SFP+,10G,Single-mode Module(1310nm,10km,LC) |
|
