Product Details:
|
| Model: | GLC-ZX-SMD | Name: | Cisco GLC-ZX-SMD 1000BASE-ZX SFP Transceiver Module, SMF, 1550nm, DOM |
|---|---|---|---|
| Key Words: | SFP Optical Transceiver | Detail: | SFP Transceiver Module |
| Moq: | 1 Pc | Condition: | Original New |
| Shipping: | DHL FEDEX UPS | Packing: | Original Box |
| High Light: | 1000BASE-ZX SFP Transceiver Module,1550nm Cisco Sfp Transceiver Module,DOM SFP Optical Transceiver Module |
||

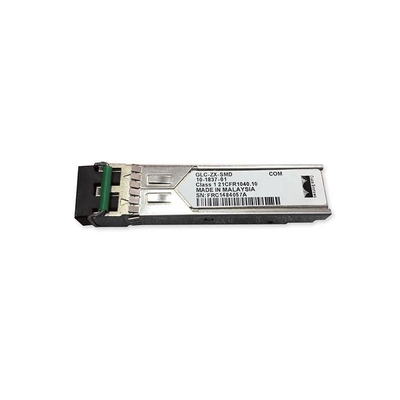

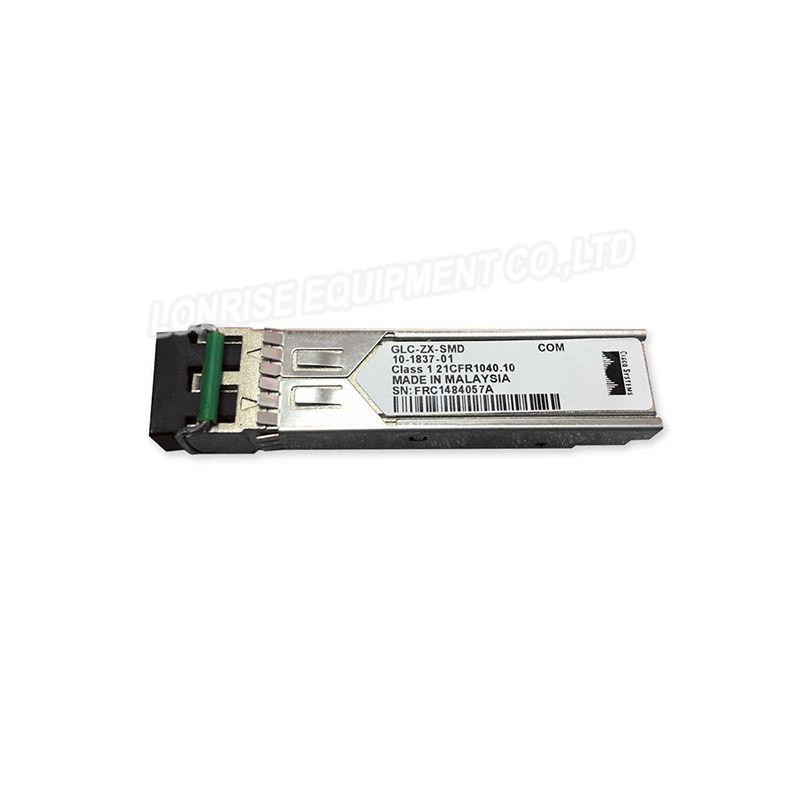

Cisco GLC-ZX-SMD is a 1000BASE-ZX SFP for Long-Reach Single-Mode Fiber. The 1000BASE-ZX SFP operates on standard single-mode fiber-optic link spans of up to approximately 70 km in length. The SFP provides an optical link budget of 21 dB, but the precise link span length depends on multiple factors such as fiber quality, number of splices, and connectors.
When shorter distances of single-mode fiber (SMF) are used, it might be necessary to insert an inline optical attenuator in the link to avoid overloading the receiver. A 10-dB inline optical attenuator should be inserted between the fiber-optic cable plant and the receiving port on the SFP at each end of the link whenever the fiber-optic cable span loss is less than 8 dB.
SFP Port Cabling Specifications |
|||||
| Product | Wavelength (nm) | Fiber Type | Core Size (μm) | Modal Bandwidth (MHz* Km)*** | Operating Distance (m) |
| 1000BASE-SX | 850 | MMF | 62.5 | 160 (FDDI-grade) | 220 (722 ft) |
| 62.5 | 200 (OM1) | 275 (902 ft) | |||
| 50 | 400 (400/400) | 500 (1,640 ft) | |||
| 50 | 500 (OM2) | 550 (1,804 ft) | |||
| 50 | 2000 (OM3) | 1000 (3281 ft) | |||
| 1000BASE-LX/LH | 1310 | MMF* | 62.5 | 500 | 550 (1,804 ft) |
| 50 | 400 | 550 (1,804 ft) | |||
| 50 | 500 | 550 (1,804 ft) | |||
| SMF | -** | - | 10,000 (32,821 ft) | ||
| 1000BASE-EX | 1310 | SMF | -** | - | 40,000 (131,234 ft) |
|
1000BASE-ZX (GLC-ZX-SMD) |
1550 | SMF | - | - | Approximately 70 km depending on link loss |
| 1000BASE-BX-U | 1310 | SMF | -** | - | 10,000 (32,821 ft) |
| 1000BASE-BX-D | 1490 | SMF | -** | - | 10,000 (32,821 ft) |
