Product Details:
|
| Condition: | Original New | Warranty: | 1 Year |
|---|---|---|---|
| Lead Time: | 1-2 Days | Application: | Indoor |
| Type: | Wireless Access Controllers | MOQ: | 1 PCS |
| Brand: | Huawei | Product Status: | Stock |
| High Light: | 10GE SFP Wireless Access Controllers,Huawei Wireless Access Controllers AC6508,10GE Ports Cisco Wireless Access Point |
||

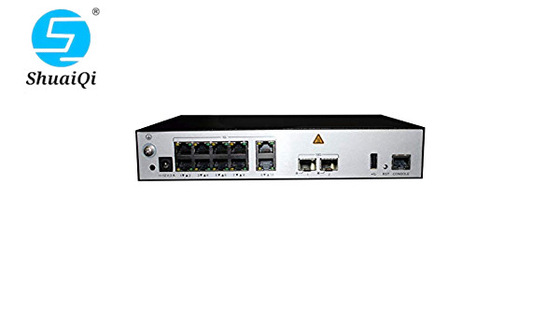

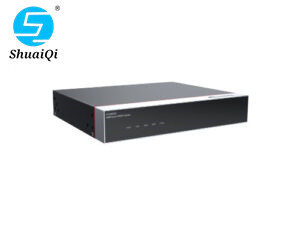

The Huawei AC6508 is a small-capacity fixed wireless access controller (AC) for small and medium enterprises. It can manage up to 256 access points (APs) and integrates the GE Ethernet switch function, achieving integrated access for wired and wireless users. The WLAN AC features high scalability and offers users considerable flexibility in configuring the number of managed APs. When used with Huawei's full series 802.11ax, 802.11ac and 802.11n APs, the AC6508 can be used to construct small and medium campus networks, enterprise office networks, wireless Metropolitan Area Networks (MANs), and hotspot coverage networks
AC6508 Specification |
|
| Forwarding Capability | 6 Gbit/s |
| Maximum Number of Managed APs | 256 |
| Maximum Number of Access Users | 4K |
| AP-AC Networking | Layer 2 or Layer 3 networking |
| Forwarding Modes | Direct forwarding or tunnel forwarding |
| AC Active/Standby Mode | 1+1 HSB or N+1 backup |
| Radio Protocols | 802.11 a/b/g/n/ac/ac Wave 2/ax |
| Dimensions (H x W x D) | 43.6 mm x 210 mm x 250 mm |
| Interface type |
2 x 10G (SFP+) + 10 x GE 1 x Console port, 1 x USB port |
| Maximum power consumption | 21 W |
| Operating temperature and altitude |
-60 m to +1800 m: 0°C to 45°C 1800 m to 5000 m: Temperature decreases by 1°C every time the altitude increases 220 m. |
| Relative humidity | 5% RH to 95% RH, non-condensing |
| Power Supply | AC/DC adapter |
| Number of managed APs |
Central APs:32 Common APs and RUs:256 NOTE:The RUs managed by the WLAN AC do not occupy the AC's license resources. However, the total number of managed common APs and RUs cannot exceed the upper limit allowed by the AC. |
|
Number of access users 4K
|
4K NOTE:The maximum number of access users varies depending on the authentication mode. |
| Number of MAC address entries | 8K |
| Forwarding capability |
6Gbit/s NOTE:Packet length: 1024 bytes |
| Number of VLANs | 4K |
| Number of routing entries l |
IPv4: 8K IPv6: 2K |
| Number of ARP entries | 6K |
| Number of multicast forwarding entries | 2K |
|
Number of DHCP IP address pools
|
64 IP address pools, each of which contains a maximum of 8K IP addresses |
| Number of local accounts | 4K |
| Number of ACLs | 4K |
| Safety standards |
IEC60950-1 UL60950-1 CSA C22.2#60950-1 EN60950-1 AS/NZS 60950.1 GB 4943 |
| EMC standards |
FCC Part15B ETSI EN 300 386 IEC61000-4-11 IEC 61000-4-4 IEC61000-4-2 IEC61000-4-3 IEC61000-4-5 IEC61000-4-6 IEC 61000-3-2 IEC 61000-3-3 AS/NZS CISPR 32 EN55032/EN55024 ICES-003 GB9254 |
| RoHS | Directive 2002/95/EC & 2011/65/EU |
| Reach | Regulation 1907/2006/EC |
| WEEE | Directive 2002/96/EC & 2012/19/EU |
