CE6881-48S6CQ-B 24 Port POE Gigabit Ethernet High Quality Power Supply Switch

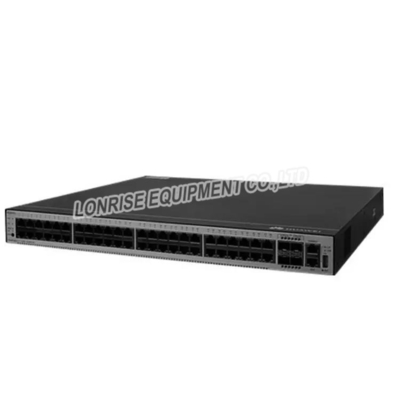

Large Image : CE6881-48S6CQ-B 24 Port POE Gigabit Ethernet High Quality Power Supply Switch

Product Details:

Place of Origin:	China
Brand Name:	Huawei
Certification:	CE
Model Number:	CE6881-48S6CQ-B

Payment & Shipping Terms:

Minimum Order Quantity:	1pc
Price:	US$2290/PC
Payment Terms:	L/C, T/T

Contact Now

CE6881-48S6CQ-B 24 Port POE Gigabit Ethernet High Quality Power Supply Switch

Description

Name:	CE6881-48S6CQ-B 24 Port POE Gigabit Ethernet High Quality Power Supply Switch	Model:	CE6881-48S6CQ-B
Forwarding Performance:	24 Mpps	Switching Capacity2:	32 Gbit/s/336 Gbit/s
Warranty:	1 Year	PoE+:	Supported
Fixed Ports:	12 X 10/100/1000Base-T Ports, 4 X GE SFP Ports	Port:	Shanghai

CE6881-48S6CQ-B Overview

CloudEngine 6800 is well suited to both the core and aggregation layers, and is fully compatible with CloudEngine 16800 and 12800 series switches, enabling enterprises to build scalable, simplified, open, and secure networks.

CE6881-48S6CQ-B Specification
Item		Description
Physical specifications		Dimensions (H x W x D) Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 420.0 mm (1.72 in. x 17.4 in. x 16.5 in.) Maximum dimensions (the depth is the distance from ports on the front panel to the handle on the rear panel): 43.6 mm x 442.0 mm x 446.1 mm (1.72 in. x 17.4 in. x 17.6 in.)
Environment parameters	Temperature	Operating temperature: 0°C to 40°C (32°F to 104°F) at altitude of 0-1800 m (0-5906 ft.) NOTE: When the altitude is 1800-5000 m (5096-16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.). Storage temperature: -40°C to +70°C (-40°F to +158°F)
	Relative humidity	5% RH to 95% RH, noncondensing
	Altitude	< 5000 m (16404 ft.)
	Noise (sound pressure, 27°C)	Back-to-front airflow: < 57 dBA Front-to-back airflow: < 58 dBA
Power specifications	Power source type	AC/DC/HVDC
	AC power input	Rated input voltage range: 100 V AC to 240 V AC, 50/60 Hz Maximum input voltage range: 90 V AC to 290 V AC, 47 Hz to 63 Hz
	DC power input	Rated voltage range: -48 V DC to -60 V DC Maximum voltage range: -38.4 V DC to -72 V DC
	High-voltage DC power input	600 W AC&240 V DC power module (PAC600S12 series): Rated voltage range: 240 V DC Maximum voltage range: 190 V DC to 290 V DC 1200 W high-voltage DC power module (PHD1K2S12 series): Rated voltage range: 240 V DC to 380V DC Maximum voltage range: 190 V DC to 400 V DC
	Rated input current	600 W AC&240 V DC power module (PAC600S12 series): 8 A (100 V AC to 240 V AC) 4 A (240V DC) 1000 W DC power module (PDC1000S12 series): 30 A (-48 V DC to -60 V DC) 1200 W high-voltage DC power module (PHD1K2S12 series): 8 A
Chassis power consumption	Maximum power consumption	349 W
Chassis power consumption	Typical power consumption	194 W (100% throughput, SFP+ high-speed cables on 48 ports and QSFP28 high-speed cables on 6 ports, double power modules) 240 W (100% throughput, short-distance optical modules on all optical ports, double power modules)
Chassis heat dissipation	Maximum heat dissipation	1191 BTU/hr
Chassis heat dissipation	Typical heat dissipation	662 BTU/hr (100% throughput, SFP+ high-speed cables on 48 ports and QSFP28 high-speed cables on 6 ports, double power modules) 819 BTU/hr (100% throughput, short-distance optical modules on all optical ports, double power modules)
Surge protection		Power module: AC: 6 kV in common mode and 6 kV in differential mode DC: 4 kV in common mode and 2 kV in differential mode HVDC: 4 kV in common mode and 2 kV in differential mode
Heat dissipation	Heat dissipation mode	Air cooling
Heat dissipation	Airflow	Front-to-back or back-to-front, depending on the fan modules and power modules
Reliability and availability	Power module backup	1+1 backup
	Fan module backup	The device supports four pluggable fan modules that work in hot standby mode. The system can operate properly for a short time after a single fan module fails. You are advised to replace the faulty fan module immediately.
	Hot swap	Supported by all power modules and fan modules
	Mean time between failures (MTBF)	45.9 years
	Mean time to repair (MTTR)	1.57 hours
	Availability	0.9999960856
Technical specifications	Processor	1.4 GHz, four-core
	DRAM memory	4 GB
	NOR Flash	64 MB
	NAND Flash	4 GB
Stack	Service port supporting the stacking function	10GE optical ports and 100GE optical ports
Certification		Safety standards compliance EMC standards compliance Environmental standards compliance
