Product Details:
|

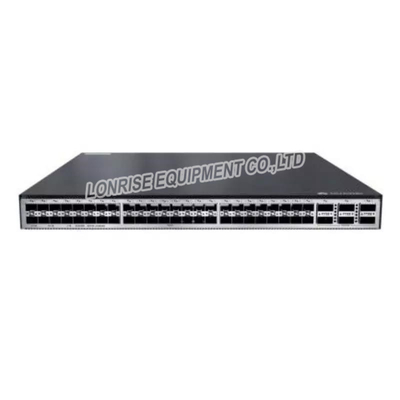

| Model: | CE6863E-48S6CQ-B | Name: | CE6863E-48S6CQ-B Switch Huawei 24 Port Ethernet Switches Uplink Ports |
|---|---|---|---|
| Chassis Height [U: | 7 | Power Supply Mode: | AC Built-in |
| Memory: | 512 MB | Flash Memory: | 512 MB |
| USB: | Supported | Types Of Fans: | Built-in |
Built on next-generation, high-performance hardware and powered by Huawei’s Versatile Routing Platform (VRP), CloudEngine CE6863E switches feature flexible Ethernet networking, diversified security control, and support for multiple Layer 3 routing protocols — providing higher performance and more powerful service processing capabilities for networks.
| Item | Details |
|---|---|

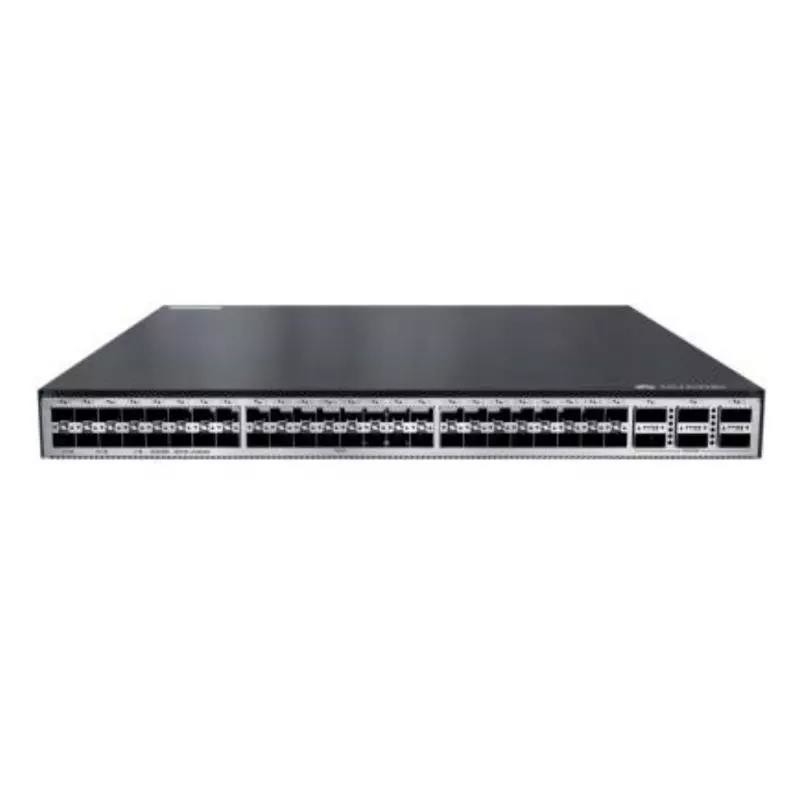

| Description | CE6863E-48S6CQ switch (48*25GE SFP28, 6*100GE QSFP28) |
| Part Number | 02354GCT |
| Model | CE6863E-48S6CQ |
| First supported version | V200R021C00 |
| Other part numbers |
02354GCW (CE6863E-48S6CQ-B switch (48*25GE SFP28, 6*100GE QSFP28, 2*AC power modules, 4*fan modules, port-side intake)) 02354GCX (CE6863E-48S6CQ-F switch (48*25GE SFP28, 6*100GE QSFP28, 2*AC power modules, 4*fan modules, port-side exhaust)) |
| Short Name | CE6863E |
| Item | Specification |
|---|---|
| Dimensions with packaging (H x W x D) [mm (in.)] | 175 mm x 650 mm x 550 mm (6.9 in. x 25.6 in. x 21.7 in.) |
| Dimensions without packaging (H x W x D) [mm (in.)] |
|
| Weight without packaging (base configuration) [kg (lb)] | 5.7 kg (excluding optical modules, power modules, and fan modules) |
| Weight without packaging (full configuration) [kg (lb)] | 7.8 kg (17.2 lb) (including AC power modules and fan modules, excluding optical modules, calculated based on the heaviest model if multiple models are supported) |
| Weight with packaging (base configuration) [kg (lb)] | 8.95 kg |
| Weight with packaging (full configuration) [kg (lb)] | 11.05kg |
| Installation Type | Cabinet Installation |
| CPU | 4-core, 1.4GHZ |
| Memory | DRAM: 4 GB |
| NOR Flash | 64 MB |
| NAND Flash | 4 GB |
| USB | Supported |
| Power supply mode |
|
| Console port | RJ45 |
| Downlink Service interface | 48*25GE SFP28 (Note: 1. 25GE ports can be configured to work at 10 Gbit/s or 1 Gbit/s. Every four downlink 25GE ports form a group, and can be configured to work at 10 Gbit/s or 1 Gbit/s through the command; 2. 10GE LRM/80KM linear optical modules are not supported; 3. 1 m 25GE copper cables and 1 m/3 m/5 m 10GE copper cables are supported, and auto-negotiation of copper cables is not supported; 4. 25GE copper cables can only be used on stack ports and M-LAG peer-link ports.) |
| Uplink Service interface | 6*100GE QSFP28 (Note: 1. Each 100G QSFP28 port can be configured to work at 40 Gbit/s. 2. A 100G QSFP28 port cannot be split into four 25GE or 10GE ports. 3. 100GE and 40GE 1/3/5 m copper cables are supported, but auto-negotiation of copper cables is not supported. 100GE and 40GE copper cables can only be used on stack interfaces and M-LAG peer-link interfaces. 100G 3/5 m copper cables support only RS FEC. After the non-RS FEC mode is configured, the port enters the error-down state.) |
| Service port supporting the stack function | 25GE optical ports, and 100GE optical ports |
| RTC | Supported |
| Typical power consumption [W] |
226 W (100% throughput, SFP28 high-speed cables on 48 ports and QSFP28 high-speed cables on 6 ports, dual power modules) 261 W (100% throughput, short-distance optical modules on all ports, dual power modules) |
| Typical heat dissipation [BTU/hour] |
771 BTU/hr (100% throughput, SFP28 high-speed cables on 48 ports and QSFP28 high-speed cables on 6 ports, dual power modules) 891 BTU/hr (100% throughput, short-distance optical modules on all ports, dual power modules) |
| Static power consumption [W] | 167 W |
| Static heat dissipation [BTU/hour] | 570 BTU/hour |
| Maximum power consumption [W] | 384 W |
| Maximum heat dissipation | 1310 BTU/hour |
| Number of power modules | 2 |
| Redundant power supply | 1+1 backup |
| Rated input voltage [V] |
Rated AC input voltage range: 100 V AC to 240 V AC; 50/60 Hz Rated –48 V DC input voltage range: –48 V DC to –60 V DC Rated input voltage range for 600 W AC & 240 V DC: 240 V DC Rated input voltage range for 1200 W HVDC: 240 V DC to 380 V DC |
| Input voltage range [V] |
Maximum AC input voltage range: 90 V AC to 290 V AC; 45 Hz to 65 Hz Maximum –48 V DC input voltage range: –38.4 V DC to –72 V DC Maximum input voltage range for 600 W AC & 240 V DC: 190 V DC to 290 V DC Maximum input voltage range for 1200 W HVDC: 190 V DC to 400 V DC |
| Maximum input current [A] |
600 W AC&240 V DC power module (PAC600S12 series): · 8 A (100 V AC to 240 V DC) · 4 A (240 V DC) 1000 W DC power module (PDC1000S12 series): 30 A (–48 V DC to –60 V DC) 1200 W high-voltage DC power module (PHD1K2S12 series): 8 A |
| Rated output power [W] |
600 W (AC&240 V HVDC) 1000 W (–48 V DC) 1200 W (380 V HVDC) |
| Certification |
· Complies with safety standards. · Complies with EMC standards. · Complies with environmental protection standards. |
| Power supply surge protection [kV] |
AC: 6 kV in common mode and 6 kV in differential mode DC: 4 kV in common mode and 2 kV in differential mode HVDC: 4 kV in common mode and 2 kV in differential mode |
| Types of fans | Pluggable |
| Number of fans | 4 |
| Redundant fans | The device supports 3+1 backup of fan modules that work in hot standby mode. The system can operate properly for a short time after a single fan module fails. You are advised to replace the faulty fan module immediately. |
| Heat dissipation mode | Air cooling |
| Airflow direction | Front-to-back or back-to-front, depending on the fan modules and power modules. |
| Availability | 0.9999962836 |
| MTBF [year] | 47.81 years |
| MTTR [hour] | 1.95 hours |
| Noise at normal temperature (27°C, sound pressure) [dB(A)] |
|
| Noise at high temperature (40°C, sound pressure) [dB(A)] |
|
| Long-term operating altitude [m (ft.)] | ≤ 5000 m (16404 ft.) |
| Long-term operating relative humidity [RH] | 5% RH to 95% RH, noncondensing |
| Long-term operating temperature [°C (°F)] |
0°C to 40°C (32°F to 104°F) at an altitude of 0–1800 m (0–5906 ft.) NOTE:
When the altitude is 1800–5000 m (5096–16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.). |
| Storage altitude [m (ft.)] | ≤ 5000 m (16404 ft.) |
| Storage relative humidity [RH] | 5% RH to 95% RH, noncondensing |
| Storage temperature [°C (°F)] | –40°C to +70°C (–40°F to +158°F) |
