Product Details:
|
| Name: | C9200L-48PXG-2Y-E | Model: | C9200L-48PXG-2Y-E - Cisco Catalyst 9200 Series Switches |
|---|---|---|---|
| Availability: | In Stock | Condition: | New Factory Sealed |
| Warranty: | 3 Years | Software: | Network Essentials |
| DRAM: | 2 GB | Flash: | 4 GB |
| Switching Capacity: | 340 Gbps | Fans: | Fixed Redundant |
| High Light: | PoE+ Network Essentials Optical Transceiver Module,2x25G Optical Transceiver Module,C9200L-48PXG-2Y-E Optical Sfp Module |
||

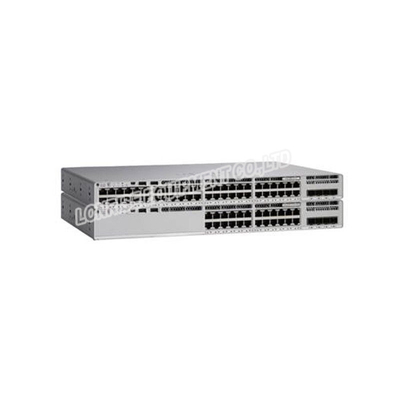

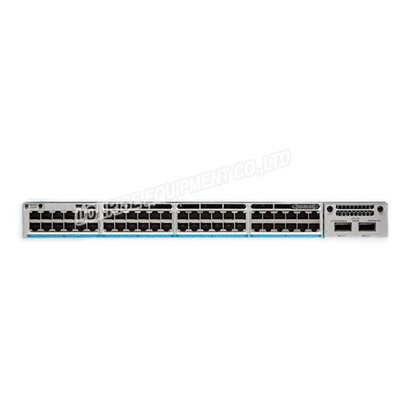

C9200L-48PXG-2Y-E Overview
C9200L-48PXG-2Y-E is the C9200L 48-port (8xmGig, 40x1G), 2x25G PoE+, Network Essentials. Cisco® Catalyst® 9200 Series switches extend the power of intent-based networking and Catalyst 9000 hardware and software innovation to a broader set of deployments. With its family pedigree, Catalyst 9200 Series switches offer simplicity without compromise – it is secure, always on, and IT simplified.
Quick Spec
| Model | C9200L-48PXG-2Y-E |
| Downlinks total 10/100/1000 or PoE+ copper ports | 48 ports full POE+ (8 mGig ports up to 10G, 40 ports up to 1G) |
| Uplink configuration | 2x 25G fixed uplinks |
| Default primary AC power supply | PWR-C5-1KWAC |
| Fans | Fixed redundant |
| Software | Network Essentials |
| Stacking bandwidth | 80 Gbps |
| DRAM | 2 GB |
| Flash | 4 GB |
| Switching capacity | 340 Gbps |
| Forwarding rate | 252.97 Mpps |
| Chassis Dimensions |
1.73 x 17.5 x 13.8 in 4.4 x 44.5 x 35.0 cm |
Catalyst 9200 series provides these highlights:
● Up to 48 ports of full Power over Ethernet Plus (PoE+) capability
● Resiliency with Field-Replaceable Units (FRU) and redundant power supply, fans, and modular uplinks
● Flexible downlink options with data or PoE+
● Operational efficiency with optional backplane stacking, supporting stacking bandwidth up to 160 Gbps
● UADP 2.0 Mini with integrated CPU offers customers optimized scale with better cost structure
● Enhanced security with AES-128 MACsec encryption, policy-based segmentation, and trustworthy systems
● Layer 3 capabilities, including OSPF, EIGRP, ISIS, RIP, and routed access
● Advanced network monitoring using Full Flexible NetFlow
● Cisco Software-Defined Access (SD-Access):
◦ Simplified operations and deployment with policy-based automation from edge to cloud managed with Cisco Identity Services Engine (ISE)
◦ Network assurance and improved resolution time through Cisco DNA Center™
● Plug and Play (PnP) enabled: A simple, secure, unified, and integrated offering to ease new branch or campus device rollouts or updates to an existing network
● Cisco IOS XE: A Common Licensing based operating system for the enterprise Cisco Catalyst 9000 product family with support for model-driven programmability and streaming telemetry
● ASIC with programmable pipeline and micro-engine capabilities, along with template-based, configurable allocation of Layer 2 and Layer 3 forwarding, Access Control Lists (ACLs), and Quality of Service (QoS) entries
Compare to Similar Items
| Model | Downlinks | Uplinks | Power Supply | Fans |
| C9200L-24PXG-4X-E | 24 ports full PoE+ (8 mGig ports up to 10G, 16 ports up to 1G) | 4x 10G fixed uplinks | PWR-C5-600WAC | Fixed redundant |
| C9200L-48XG-4X-E | 48 ports full POE+ (12 mGig ports up to 10G, 36 ports up to 1G) | 4x 10G fixed uplinks | PWR-C5-1KWAC | Fixed redundant |
| C9200L-24PXG-2Y | 24 ports full PoE+ (8 mGig ports up to 10G, 16 ports up to 1G) | 2x 25G fixed uplinks | PWR-C5-600WAC | Fixed redundant |
| C9200L-48PXG-2Y-E | 48 ports full POE+ (8 mGig ports up to 10G, 40 ports up to 1G) | 2x 25G fixed uplinks | PWR-C5-1KWAC | Fixed redundant |
