Product Details:
|
| Model: | C1000-24P-4G-L | Name: | C1000-24P-4G-L - Cisco Catalyst 1000 Series Switches |
|---|---|---|---|
| Key Words: | Switch Network Icon Cartoon Png | Detail: | 24x 10/100/1000 Ethernet PoE+ Ports And 195W PoE Budget, 4x 1G SFP Uplinks |
| Iterm: | Router Switch Network | Gigabit Ethernet Ports: | 24 |
| Uplink Interfaces: | 4 SFP | PoE+power Budget: | 195W |
| High Light: | Cisco Catalyst 1000 Switches,Ethernet Catalyst 1000 Switches,4 SFP Network Router Switch |
||

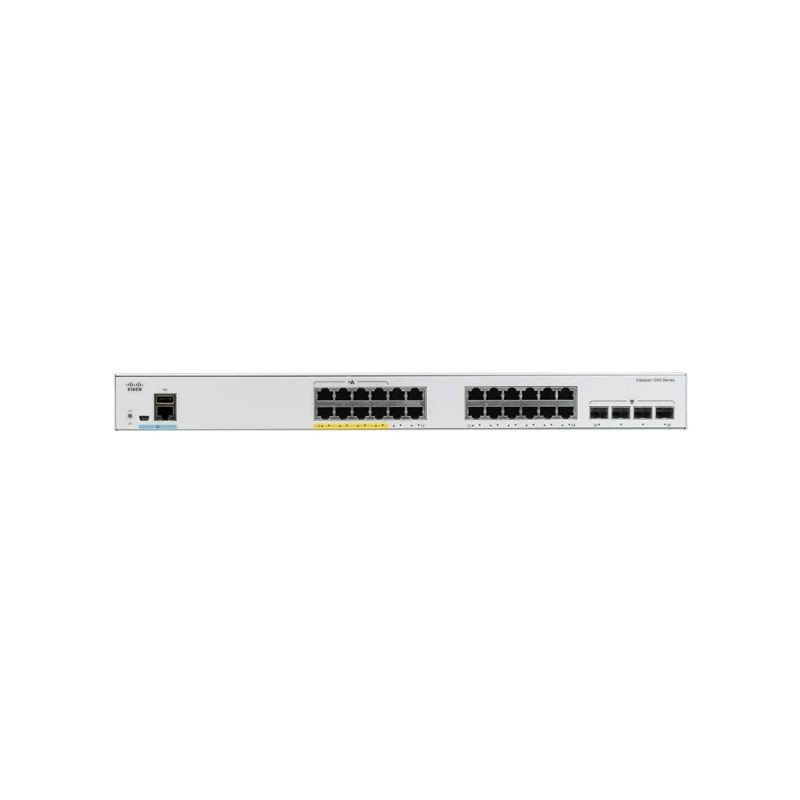

C1000 - 24P - 4G - L - Cisco Catalyst 1000 Series Switches 1000 Series Switches
Cisco® Catalyst® 1000 Series Switches are fixed managed Gigabit Ethernet enterprise-class Layer 2 switches designed for small businesses and branch offices. These are simple, flexible and secure switches ideal for out-of-the-wiring-closet and critical Internet of Things (IoT) deployments. Cisco® Catalyst® 1000 operate on Cisco IOS® Software and support simple device management and network management via a Command-Line Interface (CLI) as well as an on-box web UI. These switches deliver enhanced network security, network reliability, and operational efficiency for small organizations.
| Product Code | C1000-24P-4G-L |
| Description | 24x 10/100/1000 Ethernet PoE+ ports and 195W PoE budget, 4x 1G SFP uplinks |
| Gigabit Ethernet ports | 24 |
| Uplink interfaces | 4 SFP |
| PoE+power budget | 195W |
| Fanless | Y |
| Dimensions (WxDxH in inches) | 17.5 x 11.76 x 1.73 |
| CPU | ARM v7 800 MHz |
| DRAM | 512 MB |
| Flash memory | 256 MB |
| Forwarding bandwidth | 28 Gbps |
| Switching bandwidth | 56 Gbps |
| Forwarding rate(64—byte L3 packets) | 41.67 Mpps |
| Product Code | C1000-24FP-4G-L | C1000-24P-4G-L | C1000-24T-4G-L | C1000-24FP-4X-L | C1000-24P-4X-L | C1000-24T-4X-L |
| Description | 24x 10/100/1000 Ethernet PoE+ ports and 370W PoE budget, 4x 1G SFP uplinks | 24x 10/100/1000 Ethernet PoE+ ports and 195W PoE budget, 4x 1G SFP uplinks | 24x 10/100/1000 Ethernet ports, 4x 1G SFP uplinks | 24x 10/100/1000 Ethernet PoE+ ports and 370W PoE budget, 4x 10G SFP+ uplinks | 24x 10/100/1000 Ethernet PoE+ ports and 195W PoE budget, 4x 10G SFP+ uplinks | 24x 10/100/1000 Ethernet ports, 4x 10G SFP+ uplinks |
| Gigabit Ethernet ports | 24 | 24 | 24 | 24 | 24 | 24 |
| Uplink interfaces | 4 SFP | 4 SFP | 4 SFP | 4 SFP+ | 4 SFP+ | 4 SFP+ |
| PoE+power budget | 370W | 195W | 370W | 195W | ||
| Fanless | N | Y | Y | N | Y | Y |
| Dimensions (WxDxH in inches) | 17.5 x 13.59 x 1.73 | 17.5 x 11.76 x 1.73 | 17.5 x 9.45 x 1.73 | 17.5 x 13.59 x 1.73 | 17.5 x 11.76 x 1.73 | 17.5 x 9.45 x 1.73 |
| CPU | ARM v7 800 MHz | ARM v7 800 MHz | ARM v7 800 MHz | ARM v7 800 MHz | ARM v7 800 MHz | ARM v7 800 MHz |
| DRAM | 512 MB | 512 MB | 512 MB | 512 MB | 512 MB | 512 MB |
| Flash memory | 256 MB | 256 MB | 256 MB | 256 MB | 256 MB | 256 MB |
| Forwarding bandwidth | 28 Gbps | 28 Gbps | 28 Gbps | 64 Gbps | 64 Gbps | 64 Gbps |
| Switching bandwidth | 56 Gbps | 56 Gbps | 56 Gbps | 128 Gbps | 128 Gbps | 128 Gbps |
| Forwarding rate(64—byte L3 packets) | 41.67 Mpps | 41.67 Mpps | 41.67 Mpps | 41.67 Mpps | 41.67 Mpps | 41.67 Mpps |
