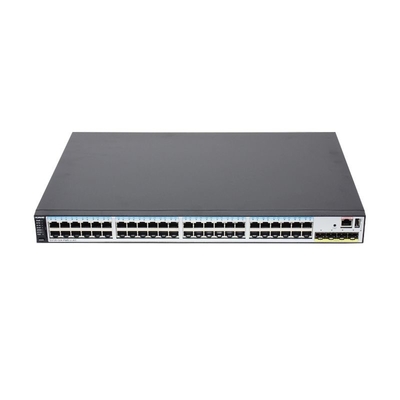

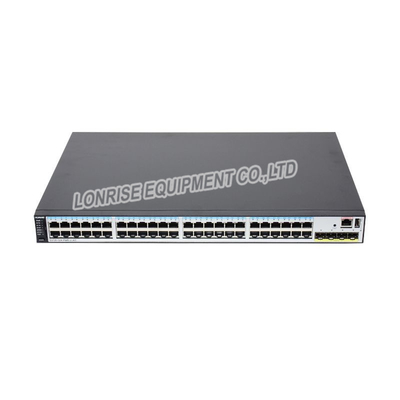

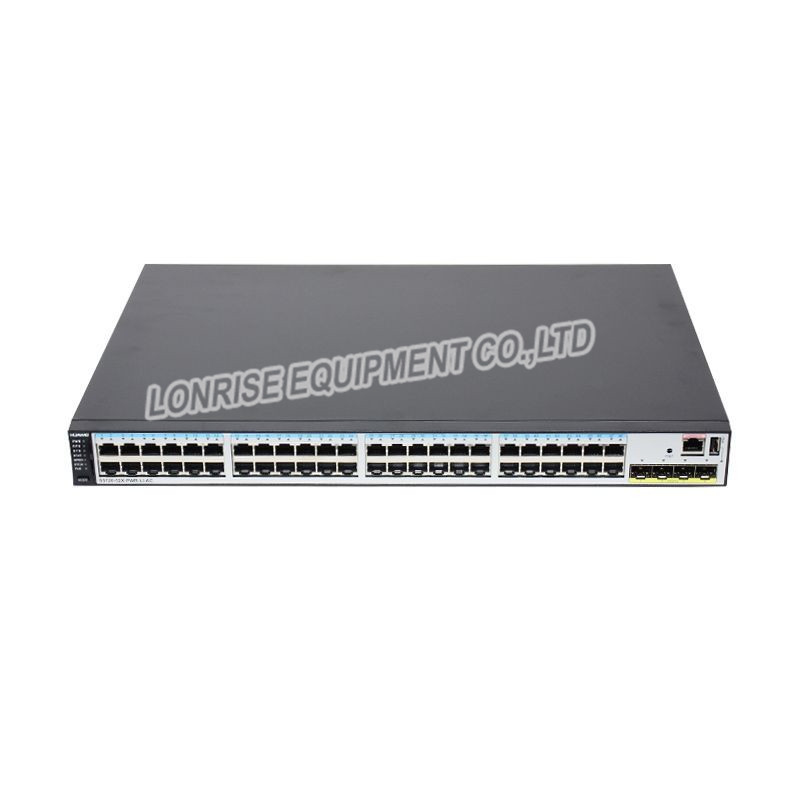

S5720 - 52X - PWR - LI - AC - Huawei S5700 Series Switches Duplex Huawei Enterprise Switches

S5720 - 52X - PWR - LI - AC - Huawei S5700 Series Switches Duplex Huawei Enterprise Switches
S5720 - 52X - PWR - LI - AC - Huawei S5700 Series Switches Duplex Huawei Enterprise Switches S5720 - 52X - PWR - LI - AC - Huawei S5700 Series Switches Duplex Huawei Enterprise Switches S5720 - 52X - PWR - LI - AC - Huawei S5700 Series Switches Duplex Huawei Enterprise Switches S5720 - 52X - PWR - LI - AC - Huawei S5700 Series Switches Duplex Huawei Enterprise Switches S5720 - 52X - PWR - LI - AC - Huawei S5700 Series Switches Duplex Huawei Enterprise Switches

Large Image :  S5720 - 52X - PWR - LI - AC - Huawei S5700 Series Switches Duplex Huawei Enterprise Switches

Product Details:
Place of Origin: USA
Brand Name: Huawei
Certification: CE
Model Number: S5720-52X-PWR-LI-AC

S5720 - 52X - PWR - LI - AC - Huawei S5700 Series Switches Duplex Huawei Enterprise Switches

Description
Model: S5720-52X-PWR-LI-AC Name: S5720-52X-PWR-LI-AC - Huawei S5700 Series Switches
Key Words: Dram Optical Ethernet Switch Detail: S5720-52X-PWR-LI-AC(48 Ethernet 10/100/1000 Ports,4 10 Gig SFP+,PoE+,370W POE AC 110/220V)
Iterm: Multiple Routing Huawei Ethernet Switches Flash: 240 MB
Availability: > 0.99999 Service Port Surge Protection Common Mode: ±7 KV
High Light:

Huawei Duplex Enterprise Switch

,

S5720 Huawei Enterprise Switches

,

Multiple Routing Huawei Network Switches

S5720 - 52X - PWR - LI - AC - Huawei S5700 Series Switches duplex huawei enterprise switches

S5720-52X-PWR-LI-AC - Huawei S5700 Series Switches.S5720-52X-PWR-LI-AC(48 Ethernet 10/100/1000 ports,4 10 Gig SFP+,PoE+,370W POE AC 110/220V)

Memory (RAM) 512 MB
Flash 240 MB
Mean time between failures (MTBF) 38 years
Mean time to repair (MTTR) 2 hours
Availability > 0.99999
Service port surge protection Common mode: ±7 kV
Power supply surge protection ±6 kV in differential mode, ±6 kV in common mode
Dimensions (W x D x H) 442.0 mm x 310.0 mm x 43.6 mm (17.4 in. x 12.2 in. x 1.72 in.)
Weight (including packaging materials) 5.9 kg (13.01 lb)
Stack ports Forty-eight 10/100/1000BASE-T ports and four 10G SFP+ ports
RTC Not supported
RPS Supported
PoE Supported
Rated voltage range 100 V AC to 240 V AC, 50/60 Hz
Maximum voltage range 90 V AC to 264 V AC, 47 Hz to 63 Hz
Maximum power consumption (100% throughput, full speed of fans)
  • Without PoE: 63.5 W
  • 100% PoE loads: 464.3 W (system power consumption: 94.7 W, PoE: 369.6 W)

Typical power consumption (30% of traffic load)

  • Tested according to ATIS standard
  • EEE enabled
  • No PoE power consumption
42.2 W
Storage temperature -40°C to +70°C (-40°F to +158°F)
Noise under normal temperature (27°C, sound power) less than 48.3 dBA
Relative humidity 5% to 95%, noncondensing
Operating altitude 0-5000 m (0-16404 ft.)
