Cisco SFP-H25G-CU2M Wired Stack Module Passive Direct Attach Copper Twinax Cable

Cisco SFP-H25G-CU2M Wired Stack Module Passive Direct Attach Copper Twinax Cable
Cisco SFP-H25G-CU2M Wired Stack Module Passive Direct Attach Copper Twinax Cable Cisco SFP-H25G-CU2M Wired Stack Module Passive Direct Attach Copper Twinax Cable Cisco SFP-H25G-CU2M Wired Stack Module Passive Direct Attach Copper Twinax Cable Cisco SFP-H25G-CU2M Wired Stack Module Passive Direct Attach Copper Twinax Cable Cisco SFP-H25G-CU2M Wired Stack Module Passive Direct Attach Copper Twinax Cable

Large Image :  Cisco SFP-H25G-CU2M Wired Stack Module Passive Direct Attach Copper Twinax Cable

Product Details:
Place of Origin: USA
Brand Name: Cisco
Certification: CE
Model Number: SFP-H25G-CU2M

Cisco SFP-H25G-CU2M Wired Stack Module Passive Direct Attach Copper Twinax Cable

Description
Name: 2m (7ft) Cisco SFP-H25G-CU2M Sfp Fiber Module Model: SFP-H25G-CU2M
Product Description: Compatible 25G SFP28 Passive Direct Attach Copper Twinax Cable Key Words: Sfp 10gb
Connector Type: SFP28 To SFP28 Minimum Bend Radius: 25mm
Cable Length: 2m (6.56ft) Typical Power Consumption: ≤0.5W
High Light:

Passive Direct Attach Copper Twinax Cable

,

Wired Stack Module Copper Twinax Cable

,

Cisco SFP 10gb Twinax Cable

Cisco SFP-H25G-CU2M wired stack module Passive Direct Attach Copper Twinax Cable

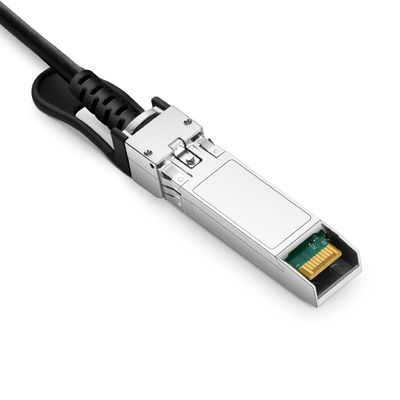

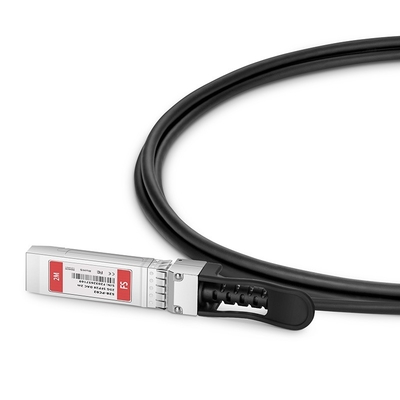

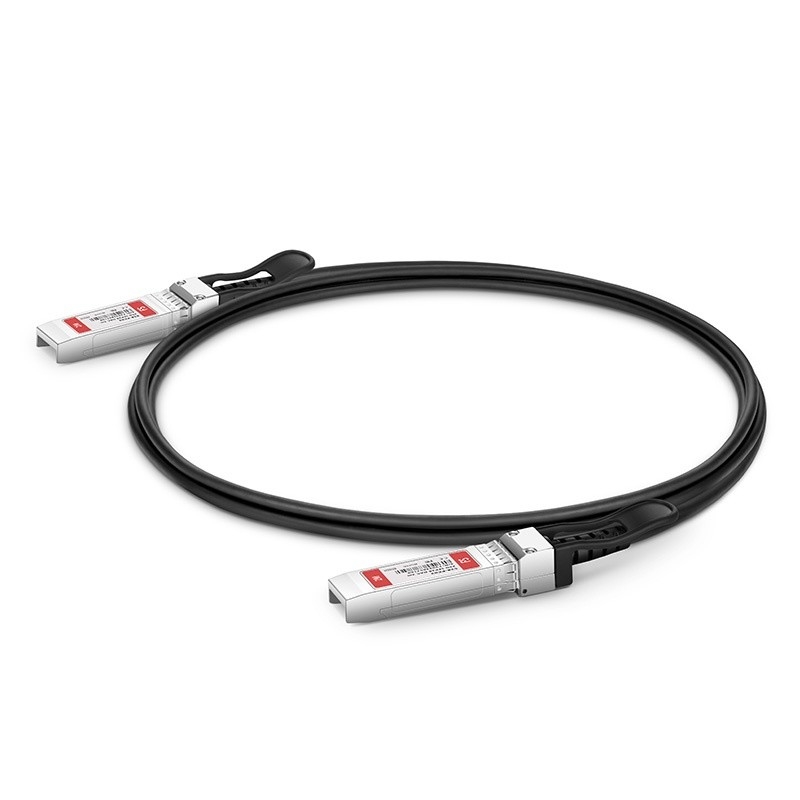

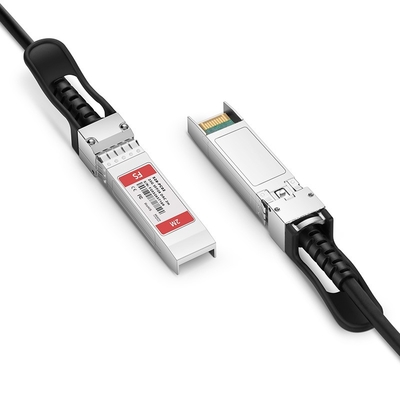

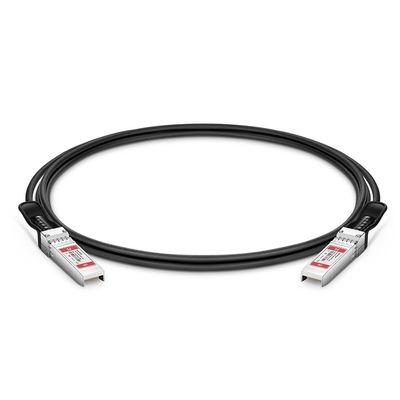

The Cisco SFP-H25G-CU2M Compatible 25G SFP28 Passive Direct Attach Copper Twinax Cable is designed for use in 25GBASE Ethernet. This cable is compliant with IEEE P802.3by Ethernet standard and SFP28 MSA Compliant. Each SFP28 connector comprises an EEPROM providing product information which can be read by the host system. With these features, this easy to install, high speed, cost-effective direct attach copper twinax cable is suitable for short-distance connectivity within a rack or between adjacent racks in data centers.



Cisco Compatible
SFP-H25G-CU2M
Vendor Name
FS
Connector Type
SFP28 to SFP28
Max Data Rate
25Gbps
Minimum Bend Radius
25mm
Wire AWG
30AWG
Cable Length
2m (6.56ft)
Jacket Material
PVC (OFNR)
Typical Power Consumption
≤0.5W
Power Supply
3.3V
Temperature
0 to 70°C (32 to 158°F)
Protocols
IEEE 802.3, SFP28 MSA, SFF-8402, Infiniband, EIA 364-1000
Application
25G Ethernet, Data Center, 5G Wireless
Warranty
1 Years
